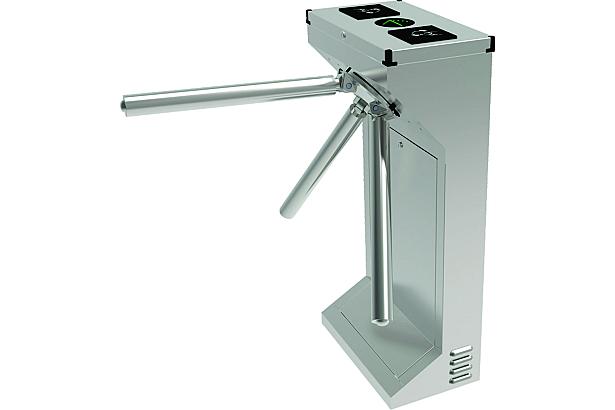

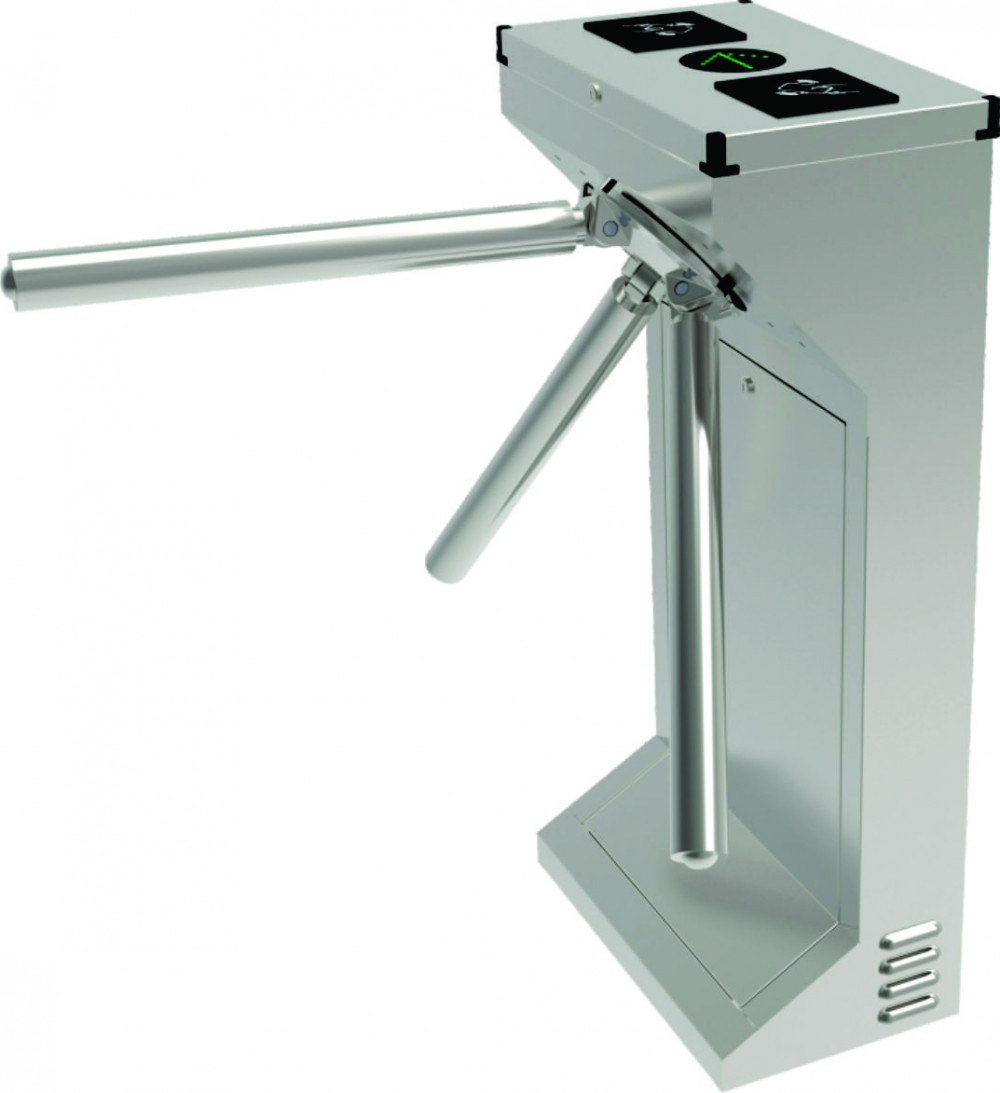

Half Height Tripod Turnstile Gate

Half Height Tripod Turnstile Gate
V-PM1000-TST3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty semi-automatic turnstile barrier
  • Dual core and bi-directional operations supported
  • Half height operation with passage width of <550mm
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe & fail lock function supported in case of emergency
  • Top quality AISI 304 grade SS construction with IP54 rating

Construction & Materials

  •  Material grade: AISI 304 grade stainless steel (optional 316 grade)


 Passage & Throughput

  •  Passage width: 550mm
  •  Lane configuration: half height, tripod barrier
  •  Throughput rate: 30 to 35 persons per minute
  •  Directional operation: dual core and bi-directional operations supported; passage direction unidirectional/bidirectional
  •  Duty cycle: 100% duty cycle


 Rotor & Movement

  •  Drive unit: electro-magnetic mechanical drive
  •  Movement: automatic reset of barrier gate after each passage
  •  Drop arm option: horizontal arm drops to create passage for evacuation
  •  Service life: more than 5 million operation cycles


 Control & Integration

  •  Input signal: dry contact, relay input (NO/NC/COMM); optional RS232/RS485
  •  Reader integration: integration support with any RFID/biometric reader through NO input
  •  Status indicator: LED status indicator
  •  Direction indicators: LED direction indicators
  •  Terminal type: wired terminal
  •  Delay time: adjustable time out delay


 Safety & Emergency Operation

  •  Fire alarm integration: supported
  •  Fail-safe & fail-lock: fail safe or fail lock status for either one or both directions, free movement mode (standard) or locks in home position

 Protection level: IP54 (IP56 optional)

 Electrical & Environmental

  •  Supply: AC 100~240V
  •  Operating voltage: DC 24V
  •  Power consumption: 30W
  •  Operating temperature: -25°C to +70°C
  •  Humidity: ≤90% no condensation
  •  Protection level: IP54 (IP56 optional)


 Dimensions & Weight

  •  Overall dimensions (excluding bars): 480 x 280 x 960 mm
  •  Net weight (including bars): 30 kg


 Compliance & Certifications

  •  CE, FCC, RoHS
