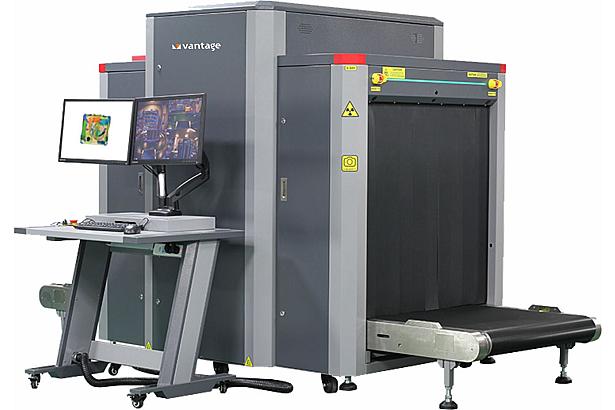

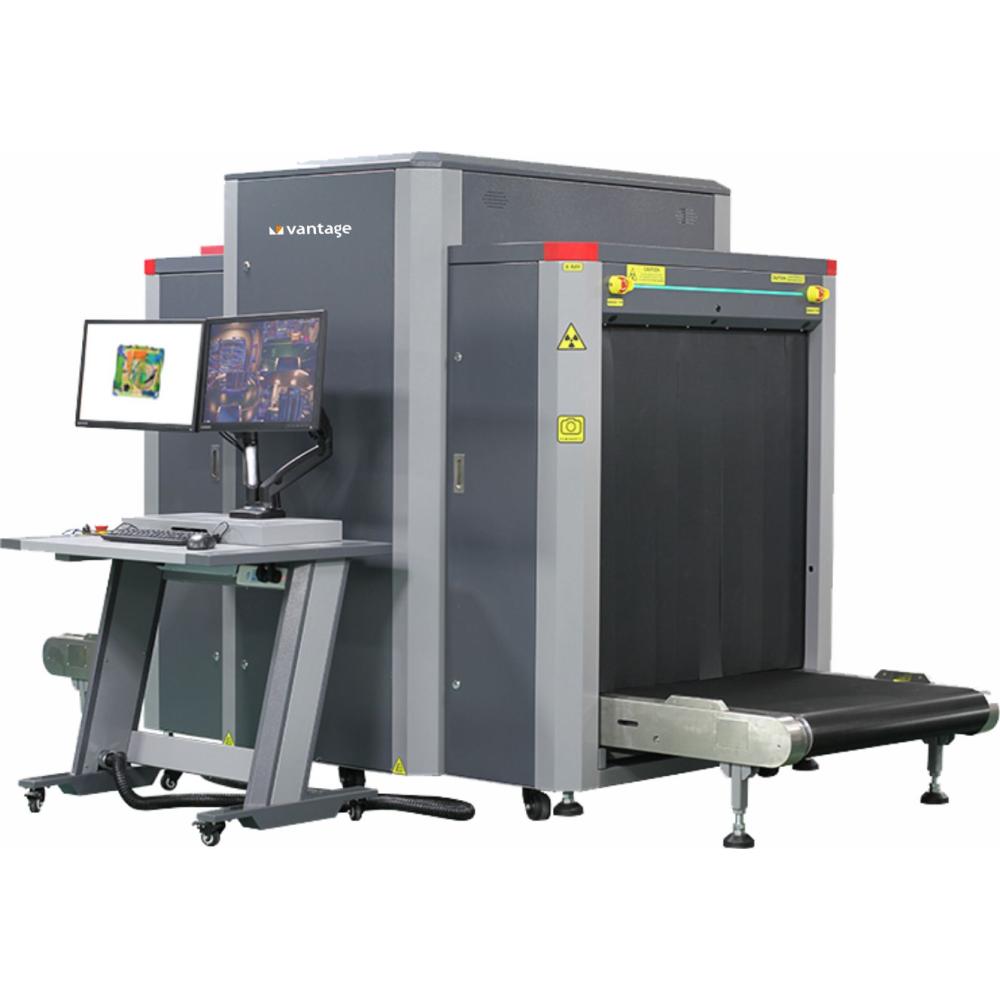

X-Ray Baggage Scanner,7 Color Imaging, Dual Generators and Dual View, 100x100cm Tunnel Size

X-Ray Baggage Scanner,7 Color Imaging, Dual Generators and Dual View, 100x100cm Tunnel Size
VP-XR1000D-BSJ8
  • Dual X-ray generator technology with dual view for efficient screening & security
  • Dual display monitors with 7 Colors image displaying technology for advance material classification
  • Dual energy penetration system supports organic/inorganic discerning
  • Versatile software with more than 30 image processing functions including auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • Enhanced imaging software with density alerts and threat material prompts to assist operator
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/metro stations, borders/immigration security check points

X-ray Source & Performance

  • Dual 160 kV X-ray generators (160kV x 2), downward and sideward beam directions (dual view)
  • Steel penetration: typical 36 mm
  • Film safety: guaranteed ISO 1600 (33 DIN)
  • 100% duty cycle, no warm-up procedure required; sealed oil bath with forced-air cooling
  • X-ray leakage ≤0.1 mR/hr (1.0 µSv/hr); leakage current 1.2 mA

Image Resolution & Detection

  • Wire resolution: 40 AWG
  • Spatial resolution: 1.0 mm horizontal, 1.0 mm vertical
  • S/N ratio: <45 dB
  • L-shaped photodiode array detector (dual energy), 24-bit depth

Imaging Features & Software

  • 7-colour imaging with dual-energy material classification, 24-bit colour display, edge enhancement
  • Image recall: 30 images
  • Windows OS (standard); 1 TB SSD (standard); storage up to 500,000 images auto-stored, with USB transfer for backup or data export
  • Dual 2 x 24" LED displays with anti-glare, resolution 1980 x 1080
  • Keyboard included; operation console available/optional
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 1010 (W) x 1003 (H) mm
  • Conveyor speed: 0.23 m/s forward
  • Conveyor height: 301 mm
  • Maximum conveyor load: 250 kg
  • Roller table integrated with tunnel

Electrical & Environmental

  • Supply: AC220V (±10%), 50/60 Hz, 10 A max
  • Maximum power consumption: 800 W
  • Automatic voltage regulator supported
  • Working temperature: 0°C to 40°C
  • Storage temperature: -20°C to 60°C
  • Humidity: 5% to 95% non-condensing

Dimensions & Weight

  • Overall dimensions: 4930 (L) x 1300 (W) x 1801 (H) mm
  • Net weight: 1020 kg

Compliance & Certifications

  • Certifications: CE, RoHS, FDA
