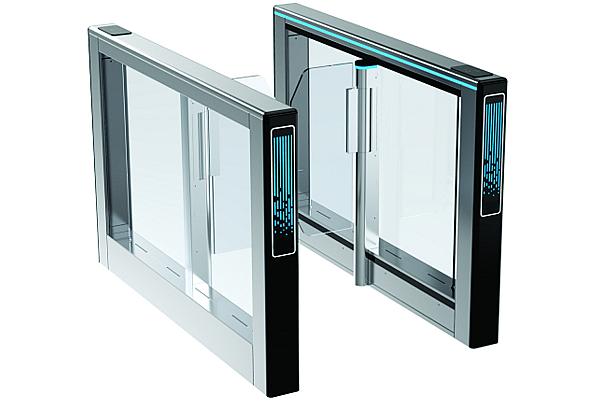

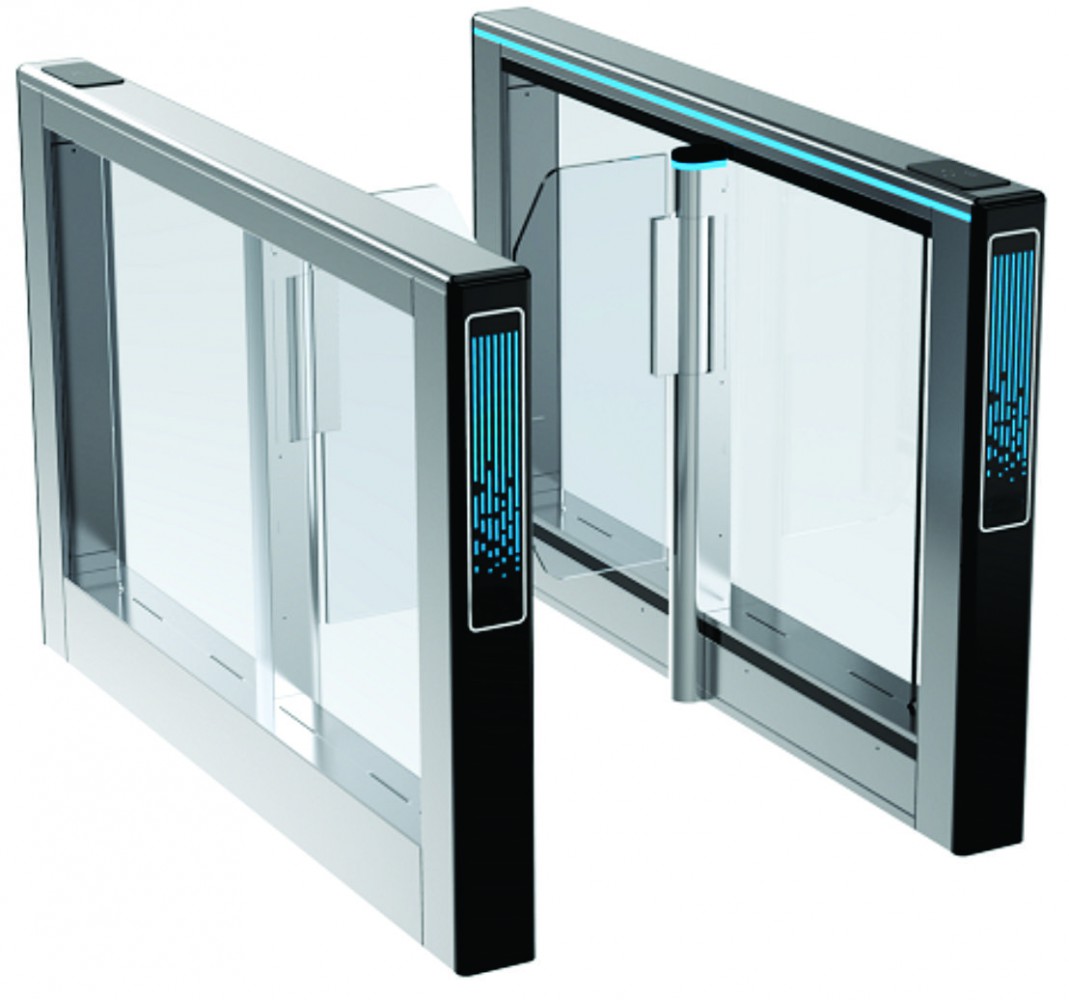

Premium Aluminum Alloy Swing Gate Barrier Single/Dual Core

Premium Aluminum Alloy Swing Gate Barrier Single/Dual Core
V-PM4710SC/DC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic swing gate
  • Single/dual core and bi-directional operations supported
  • Half height operation with passage width of <600mm
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe & fail lock function supported in case of emergency
  • Passage width 600mm standard (900mm optional) with throughput rate of 35–40 persons per minute and passing time 5 seconds default (adjustable 0–25s)
  • Opening and closing speed 0.3–0.5s with unidirectional and bidirectional passage direction supported
  • 24-point light curtain sensor plus 4 pairs of infrared sensors for smooth pedestrian traffic and protection
  • Electro-mechanical DC motor drive with 100W DC brushless motor, operating voltage DC 24V and power supply AC100~240V
  • Fail safe or fail lock status supported on power/mechanism failure with fire alarm integration for emergency free passage evacuation
  • Communication via Relay Input (NO/NC/COMM) with optional RS232/RS485 interface and service life of >10 million operation cycles
  • Power consumption 120W with IP44 ingress protection rating
  • Aluminum alloy chassis with acrylic door material
  • Working temperature -25°C to +70°C and relative humidity ≤90% non-condensing
  • Overall dimensions 1500 × 120 × 980mm, net weight 50kg single core and 65kg double core, certified CE, FCC and RoHS
