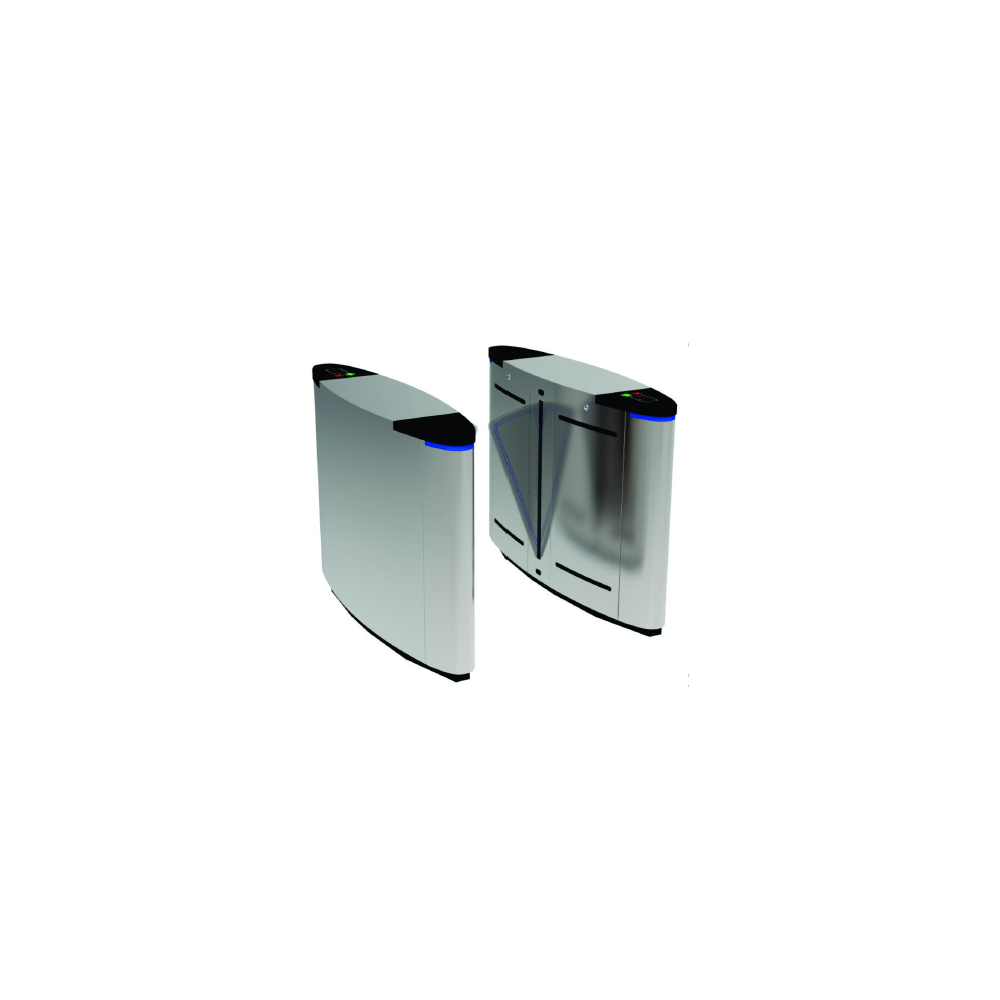

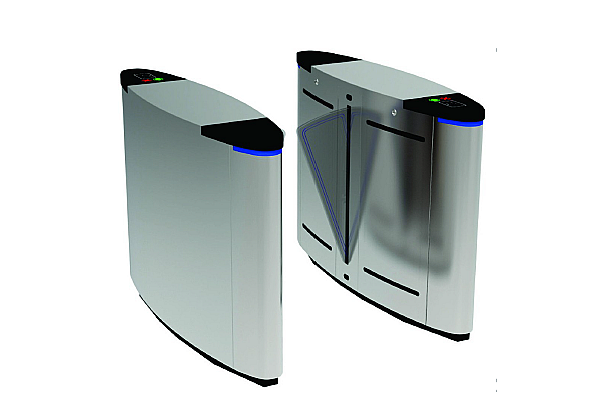

Flap Barrier Gate Single/Dual Core

Flap Barrier Gate Single/Dual Core
V-PM3400SC/DC-FBT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy duty motorized-automatic Flap Barrier
  • Bi-directional operation supported
  • Half-height design with passage width of 550mm, optional 900mm
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe & fail lock function supported in case of emergency
  • Top quality AISI 304 grade SS construction with IP54 rating
  • Passage width 550mm standard (900mm optional with telescopic acrylic flaps) with throughput rate of 35–40 persons per minute
  • 5 pairs of infrared sensors for smooth pedestrian traffic and protection with unidirectional and bidirectional passage direction
  • DC brushless motor 40W with operating voltage DC 24V and power supply AC100~240V with power consumption 35W
  • IP54 ingress protection rating (IP56 optional) with service life of >5 million operation cycles
  • Communication via Relay Input (NO/NC/COMM) with optional RS232/RS485 interface
  • AISI 304 grade stainless steel (optional AISI 316 grade) with fully welded top cover for outdoor use and acrylic door material
  • Working temperature -25°C to +70°C and relative humidity ≤90% non-condensing
  • Overall dimensions 1410 × 300 × 990mm, net weight 75kg single core and 95kg double core, certified CE, FCC and RoHS
