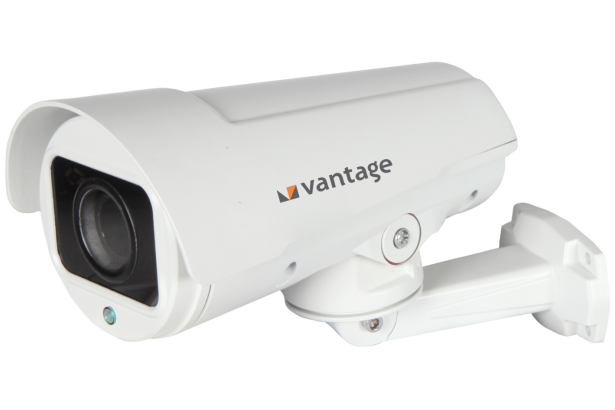

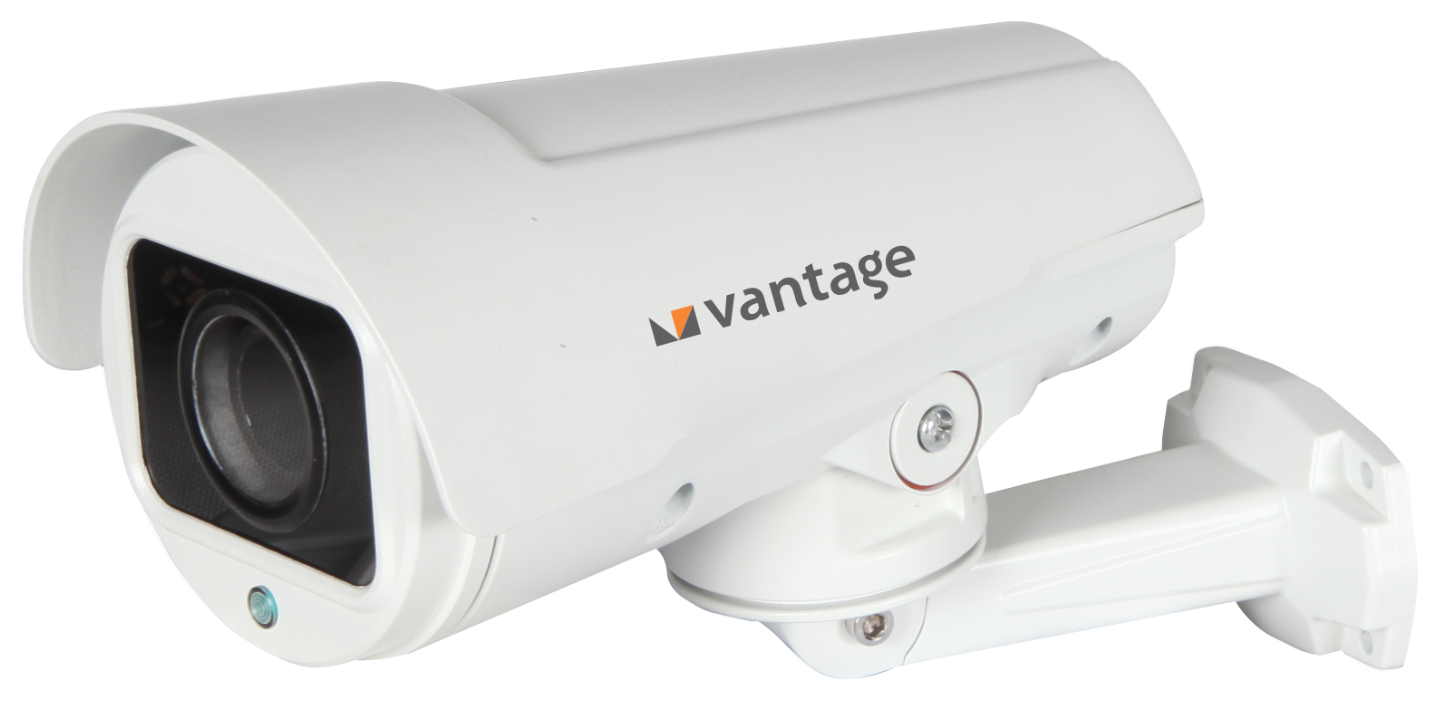

VV-AC82103B-3PIRB1 2MP IR Night Vision Motorized Camera
LOADING IMAGES
Downloads:
- Full High Definition 2MP (1920 x 1080) resolution
- 1/3" Progressive Scan Sensor
- 10x Optical zoom
- 160° pan angle supported
- Inbuilt IR LEDs for 40 mtrs IR range
- Supports presets/patrol/pan scan
- Inbuilt DWDR, 3D DNR & BLC functions
| Parameter | Specifications |
| Camera | |
| Image Sensor | 1/3" Progressive Scan Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Minimum Illumination | Color: 0.01Lux@( F1.4, AGC ON); B/W: 0.0015Lux@( F1.4, AGC ON); 0 Lux with IR |
| Electronic Shutter Speed | 1/1~ 1/10,000s |
| Signal to Noise | > 62 dB |
| Gain Control | Auto / Manual |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| Auto Iris | Auto / Manual |
| Lens | |
| Lens Type | 5.1 ~ 51mm, 10x Optical |
| Angle of View | 47 ~ 5.3 degree (Wide-Tele) |
| Focus | Auto Focus |
| Zoom | 10x Optical Zoom |
| Zoom Speed | Approx.3s (Optical Wide-Tele) |
| Aperture Range | F1.4 ~ F3.5 |
| Compression | |
| Video compression | H.264 / MJPEG |
| H.264 codec profile | Main profile |
| Video Bit Rate | 32 Kbps ~ 16 Mbps |
| Resolution and Frame Rate | |
| Max. Resolution | 1920 x 1080 |
| Frame rate | 50Hz: 25 fps (1920×1080), 25 fps (1280×720); 60Hz: 30 fps (1920×1080), 30 fps (1280×720) |
| Day/Night Functionality | |
| Day & Night | True Day & Night with ICR |
| IR Cut | High performance Mechanical IR Cut Filter with auto switch |
| IR Source | Inbuilt High performance IR LEDs |
| IR Range | Up to 40 Mtrs |
| IR Irradiation Angle | Automatically adjusted, depending on the zoom ratio |
| IR Life | 40000 operation hours |
| Pan-Tilt | |
| Pan Angle | 160° |
| Pan Speed | 0.1° ~ 45°/s |
| Presets | 220 |
| Preset Accuracy | ± 0.1° |
| Patrol | 3 patrols, up to 16 presets per patrol |
| Tour Pattern | 4 Tour patterns |
| Power-off Memory | Supported |
| PTZ position display | Supported |
| Operational Features | |
| OSD Menu | Supported |
| Camera ID | On/Off |
| Privacy Masking | Yes, Mutiple Zone Supported |
| Digital Zoom | 16X |
| Motion Detection | Supported |
| Backlight Compensation | Supported |
| Video Adjustment | Supported |
| WDR | Supported |
| Protocols | PELCO-P, PELCO-D, Multi protocol support |
| Baud Rate | 2400/4800/9600bps |
| DNR | Inbuilt 3D DNR (Digital Noise Reduction) circuit |
| Interface | |
| Video Output | 1x BNC AHD Video Output |
| Power Input | Standard DC Jack |
| Communication mode | RS-485 |
| Electrical | |
| Power Requirement (± 10%) | 12VDC/2A |
| Power Consumption | MAX. 15W |
| Environmental | |
| Enclosure | IP66 weather proof outdoor enclosure |
| Mounting bracket | External Mounting bracket included |
| Operating Temperature | -40°C to +65°C |
| Operating Humidity | 90% or less (non-condensing) |
| Mechanical | |
| Color | White |
| Dimension | 113 x 95 mm |
| Certifications | |
| Certifications | CE, FCC, RoHS |
