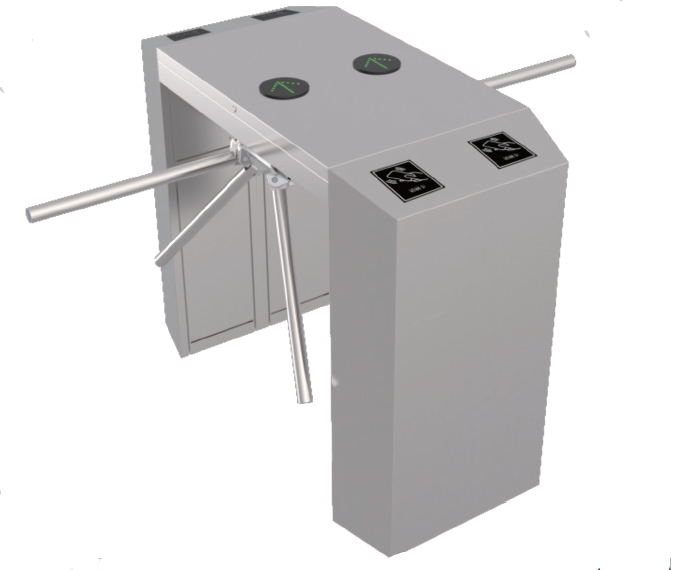

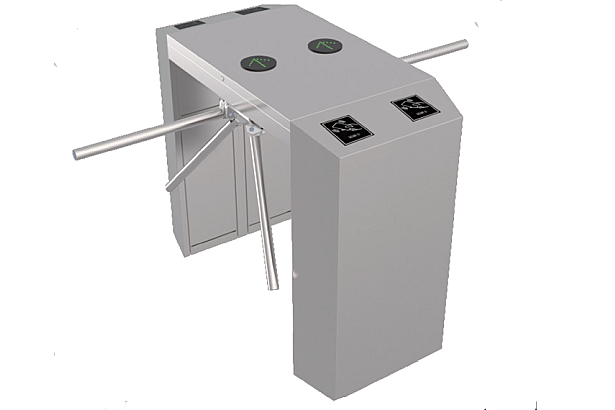

Half Height Dual Lane Tripod Turnstile Gate Barrier
V-PM1600DC-TST3
- Selectable operating modes- single direction, bi-direction, always free or always locked
- Heavy-duty design for 24 hours continue application
- LED Direction indicators at each side
- IP44 Ingress Protection Rating
- Automatic reset of barrier gate after each passage
- Adjustable time out delay.
- Integration support with any RFID/Biometric Reader through NO input
Passage & Throughput
- Passage width: 550 mm
- Lane configuration: half height tripod, dual lane
- Throughput rate: up to 35 persons per minute
- Passage direction: selectable operating modes, single direction, bidirectional, always free or always locked
- Duty cycle: 100% duty cycle operation, heavy duty design for 24 hours continuous application
Rotor & Movement
- Drive: electro-magnetic drive, DC
- Movement: automatic reset of barrier gate after each passage
- Service life: not specified in the datasheet
Control & Integration
- Communication interface: not specified in the datasheet
- Reader integration: supports any RFID or biometric reader through NO input
- Status indicator: LED direction indicators at each side
- Direction indicators: LED direction indicators
- Terminal type: wired terminal
- Delay time: adjustable time out delay
Safety & Emergency Operation
- Fire alarm integration: not specified in the datasheet
- Drop arm option: not specified in the datasheet
- Power or mechanism failure: not specified in the datasheet
- Protection level: IP44 ingress protection rating
Electrical & Environmental
- Power supply voltage: 100 to 240 V AC
- Operating voltage: 24 V DC
- Power consumption: 35 W maximum
- Frequency: 50 to 60 Hz
- Working temperature: -25°C to +70°C
- Relative humidity: not specified in the datasheet
- IP rating: IP44
Dimensions & Weight
- Dimensions excluding bars: 1200 x 560 x 980 mm
- Net weight including bars: 52 kg
Compliance & Certifications
- CE, FCC and RoHS
