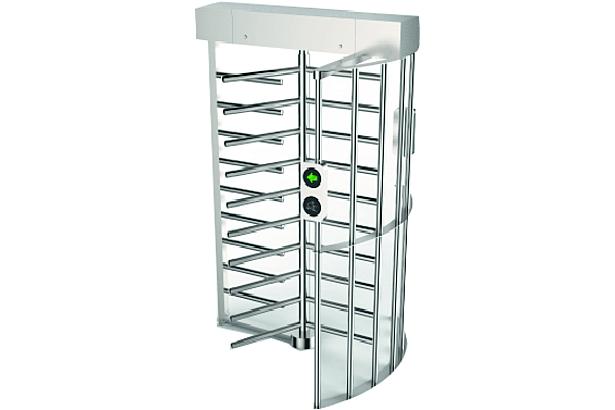

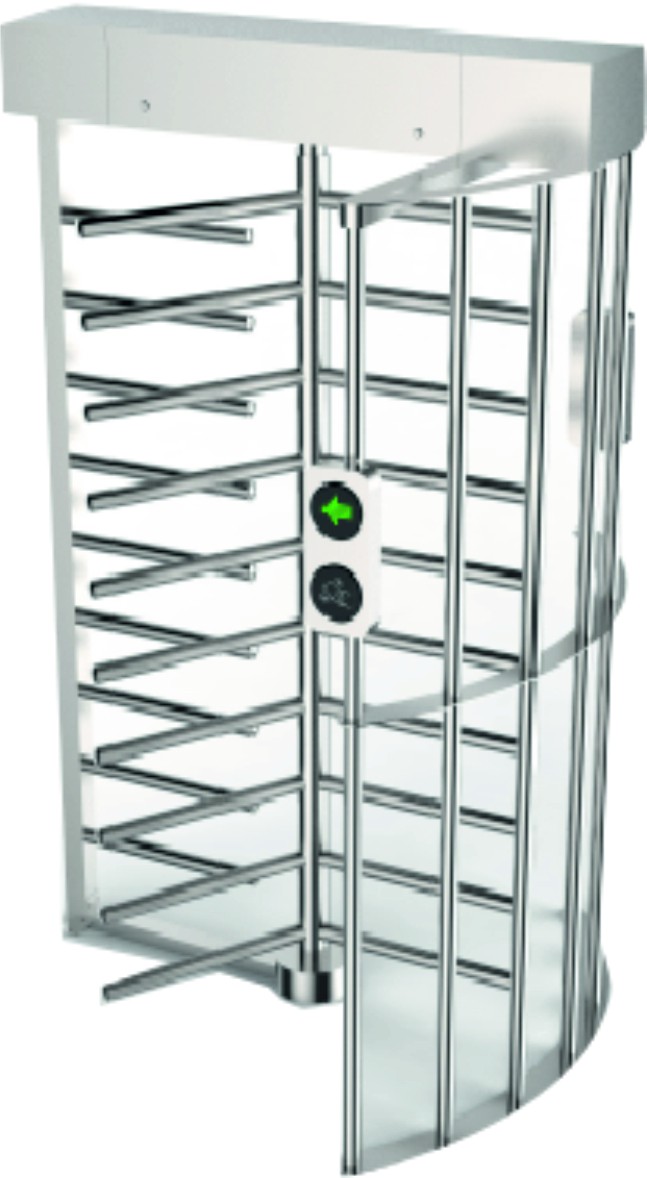

Full Height Single Lane Turnstile Gate Barrier

Full Height Single Lane Turnstile Gate Barrier
V-PM2800SL-FTST3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Corrosion protected SS 304 grade frame
  • Single lane barrier with arrangement of 4 arms at 90° stop
  • Consist of rotor assembly and shield
  • Single and bi-directional operations supported
  • Integration support with any RFID/biometric reader through NO input
  • IP54 ingress protection rating

Construction & Materials

  • Material grade: SS304 grade stainless steel frame

Passage & Throughput

  • Passage width: 600 mm
  • Lane configuration: single lane, full height, 4 spokes x 90 degree stop
  • Throughput rate: 32 to 35 persons per minute per lane
  • Passage control: one or either direction
  • Duty cycle: intensive use

Rotor & Movement

  • Drive: electro-mechanical drive, semi-automatic
  • Rotor type: 4 spokes x 90 degree stop
  • Movement: self centering mechanism to the neutral position, hydraulic damping supported

Control & Integration

  • Communication interface: RS485, signal output 12V pulse
  • Reader integration: supports any RFID or biometric reader through NO input
  • Status indicator: red and green status LED lights
  • Direction indicators: LED direction indicators
  • Terminal type: wired terminal
  • Delay time: access time out adjustable 1 to 10 seconds

Safety & Emergency Operation

  • Fire alarm integration: not specified in the datasheet
  • Drop arm option: not specified in the datasheet
  • Power or mechanism failure: fail open or fail secure locking supported, anti reverse pass supported
  • Protection level: IP54 ingress protection rating

Electrical & Environmental

  • Power supply voltage: 100V to 240V AC
  • Operating voltage: solenoid 24V DC 100%, control circuit 24V DC
  • Power consumption: 30 W
  • Frequency: 50 or 60 Hz
  • Working temperature: -25°C to +70°C
  • Relative humidity: less than 95%, non-condensing
  • IP rating: IP54

Dimensions & Weight

  • Dimensions: 1400 x 1200 x 2230 mm
  • Net weight: 110 kg

Compliance & Certifications

  • CE, FCC and RoHS
