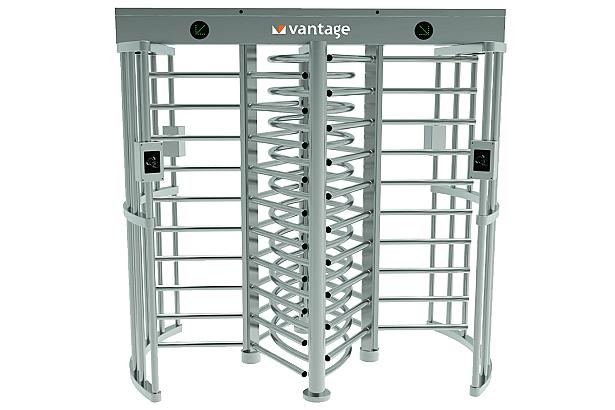

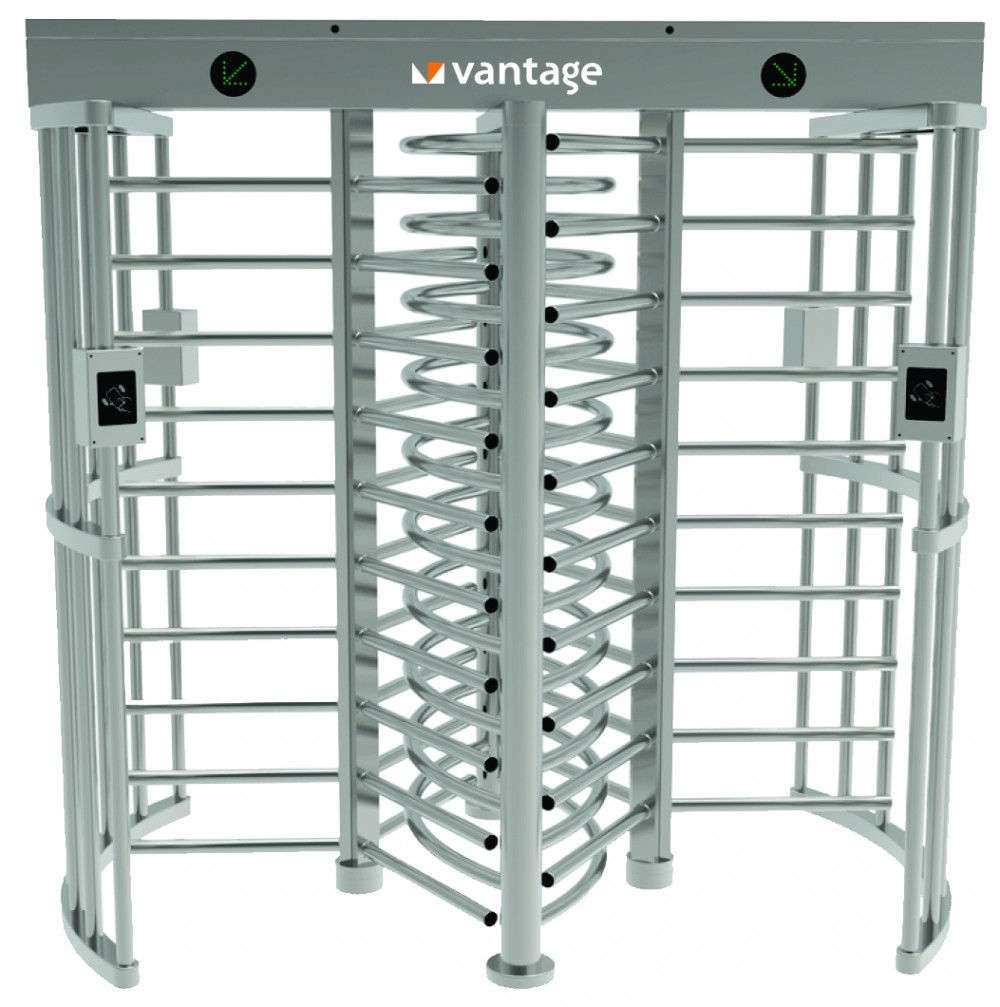

Full Height Dual Lane Turnstile Gate Barrier

Full Height Dual Lane Turnstile Gate Barrier
V-PM2300-FTST3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Designed for seizure operation with aesthetics in mind
  • 4x90 degree stop, Dual lane
  • Corrosion protected SS 304 grade (optional 316 grade)
  • Padlock & local key operated switch supported each side
  • Heavy gauge materials meeting ASTM standard
  • Consist of rotar assembly and shield
  • Fail safe & fail lock function supported in case of emergency
  • Dual lane operation for independent to and from operations
  • Integration support with any RFID/Biometric Reader through NO input
  • IP54 Ingress Protection rating

Construction & Materials

  • Material grade: SS304 grade stainless steel, 316 grade optional upgrade
  • Material standard: heavy gauge materials meeting ASTM standard

Passage & Throughput

  • Passage width: 550 mm
  • Lane configuration: full height, dual lane, 4x90 degree stop
  • Throughput rate: 30 persons per minute
  • Passage direction: dual lane operation for independent to and from operations
  • Duty cycle: 100% duty cycle operation

Rotor & Movement

  • Drive: electro-mechanical DC motor drive
  • Rotor type: 4 arms at 90 degree stop
  • Rotor arm: diameter 30 mm, thickness 1.6 mm, 10 arms for full height, solenoid 24V DC 100%
  • Rotor release timer: selectable between 1 to 6 seconds, in steps of one second

Control & Integration

  • Communication interface: signal output 12V pulse, rotation detection switch output at 10 and 45 degree rotation of rotor
  • Reader integration: supports any RFID or biometric reader through NO input
  • Status indicator: red and green status LED lights
  • Direction indicators: LED direction indicators
  • Terminal type: wired terminal
  • Delay time: access time out adjustable 1 to 10 seconds

Safety & Emergency Operation

  • Fire alarm integration: supported to provide free passage for evacuation
  • Manual override: padlock and local key operated switch supported each side
  • Power or mechanism failure: fail safe or fail lock status for either one or both directions, free movement mode (standard) or locked in the home position
  • Protection level: IP54 ingress protection rating, IP55 optional

Electrical & Environmental

  • Power supply voltage: not specified in the datasheet
  • Operating voltage: 24V DC
  • Power consumption: 30 W
  • Frequency: 50 or 60 Hz
  • Working temperature: -15°C to +55°C
  • Relative humidity: 95%
  • IP rating: IP54, IP55 optional

Dimensions & Weight

  • Dimensions: 2100 x 1200 x 2250 mm
  • Gross weight: approximately 360 kg, including packaging

Compliance & Certifications

  • CE, FCC and RoHS"
