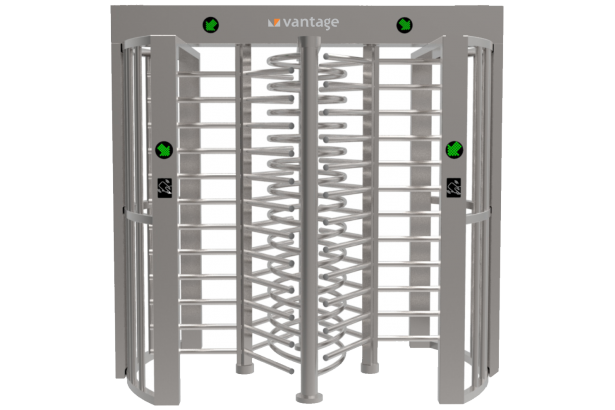

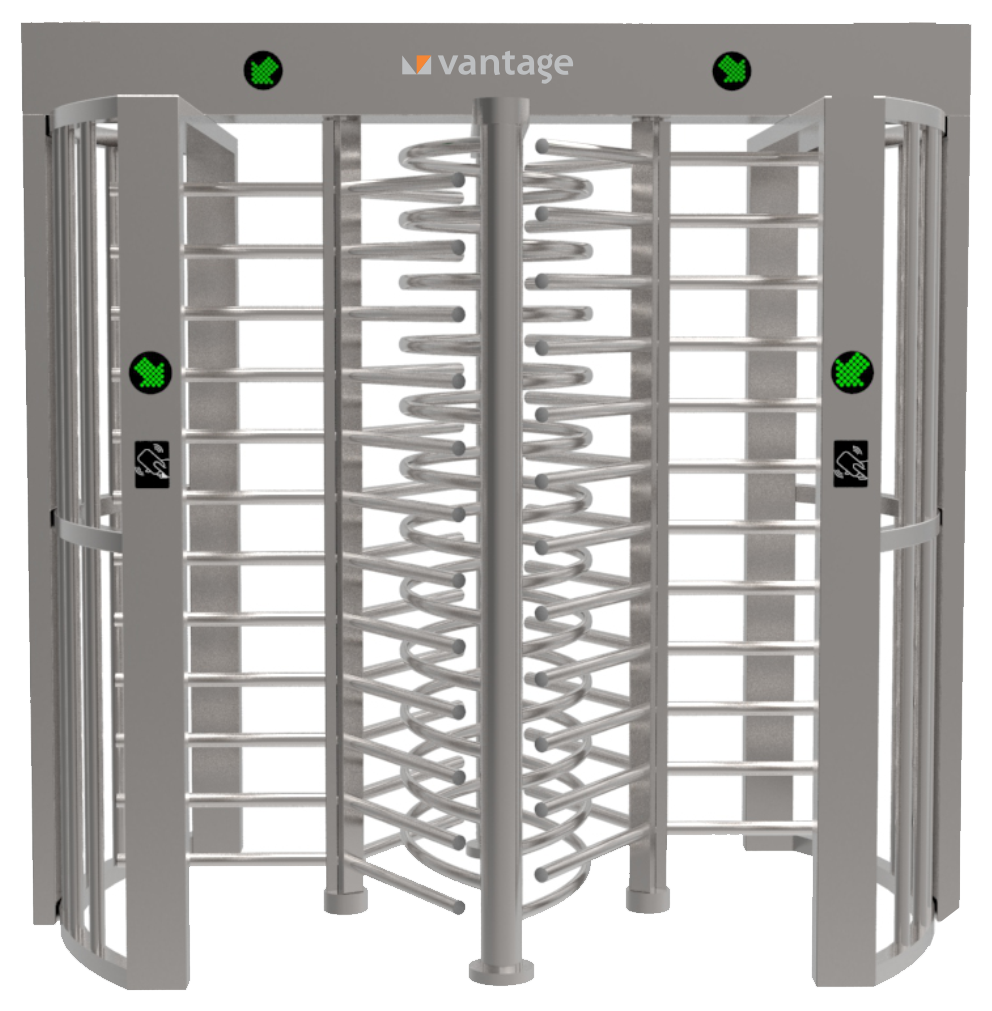

Full Height Dual Lane Turnstile Gate Barrier

Full Height Dual Lane Turnstile Gate Barrier
V-PM2400-FTST3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Designed for seizure operation with aesthetics in mind
  • 3x120 degree stop, Dual lane
  • Corrosion protected SS 304 grade (optional 316 grade)
  • Padlock & local key operated switch supported each side
  • Heavy gauge materials meeting ASTM standard
  • Consist of rotar assembly and shield
  • Assembly, barrier section, mechanism housing and ceiling
  • Dual lane operation for independent to and from operations
  • Integration support with any RFID/Biometric Reader through NO input
  • IP54 Ingress Protection rating (IP55 optional)

Construction & Materials

  •  Material grade: SS304 grade stainless steel, 316 grade optional upgrade
  •  Material standard: heavy gauge materials meeting ASTM standard
  •

 Passage & Throughput

  •  Passage width: less than 650 mm
  •  Lane configuration: full height, dual lane, 3x120 degree stop
  •  Throughput rate: 30 persons per minute per lane
  •  Passage direction: dual lane operation for independent to and from operations
  •  Duty cycle: 100% duty cycle operation


 Rotor & Movement

  •  Drive: electro-magnetic DC drive, electromechanical technology
  •  Rotor type: 3 arms at 120 degree stop
  •  Rotor arm: diameter 30 mm, thickness 1.6 mm, 10 arms for full height, solenoid 24V DC 100%
  •  Movement: locking mechanism prevents reverse rotation once travelled 25 to 30 degrees past rest position
  •  Rotor release timer: selectable between 1 to 6 seconds, in steps of one second
  •

 Control & Integration

  •  Communication interface: signal output 12V pulse
  •  Reader integration: supports any RFID or biometric reader through NO input
  •  Status indicator: red and green status LED lights
  •  Direction indicators: LED direction indicators
  •  Terminal type: wired terminal
  •  Delay time: access time out adjustable 1 to 10 seconds


 Safety & Emergency Operation

  •  Fire alarm integration: not specified in the datasheet
  •  Manual override: padlock and local key operated switch supported each side
  •  Power or mechanism failure: fail safe or fail lock variants in the event of power supply removal
  •  Protection level: IP54 ingress protection rating, IP55 optional


 Electrical & Environmental

  •  Power supply voltage: 100V to 240V AC
  •  Operating voltage: 24V DC
  •  Power consumption: 30 W
  •  Frequency: 50 or 60 Hz
  •  Working temperature: -15°C to +55°C
  •  Relative humidity: 95%
  •  IP rating: IP54, IP55 optional


 Dimensions & Weight

  •  Dimensions: 2400 x 1500 x 2250 mm
  •  Gross weight: approximately 240 kg, including packaging


 Compliance & Certifications

  •  CE, FCC and RoHS
