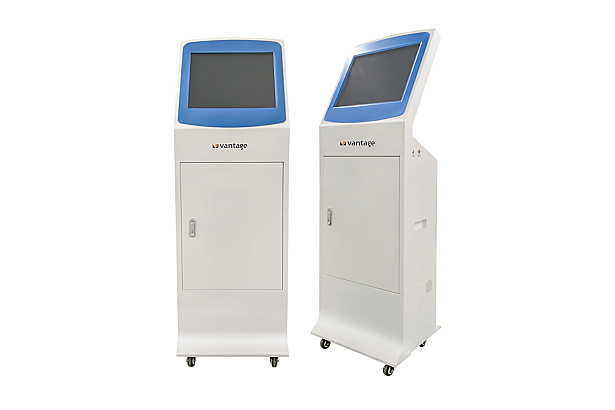

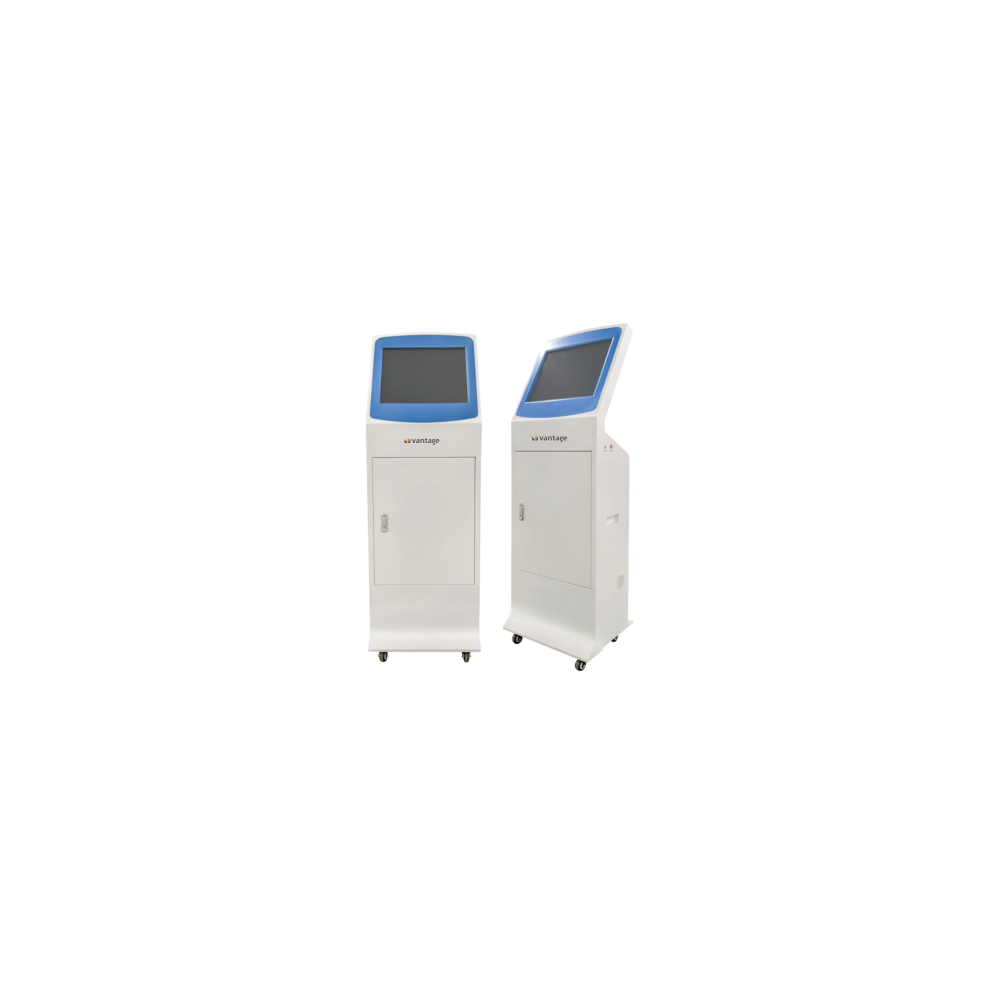

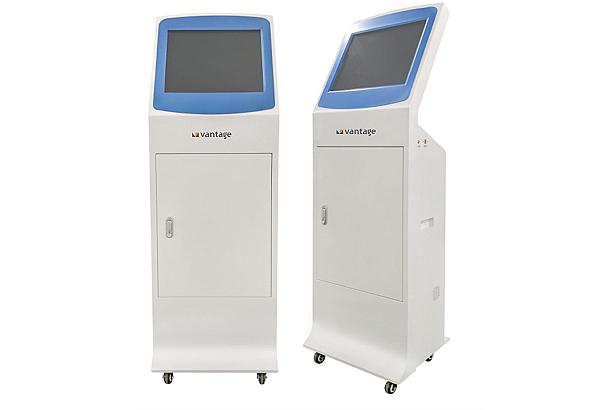

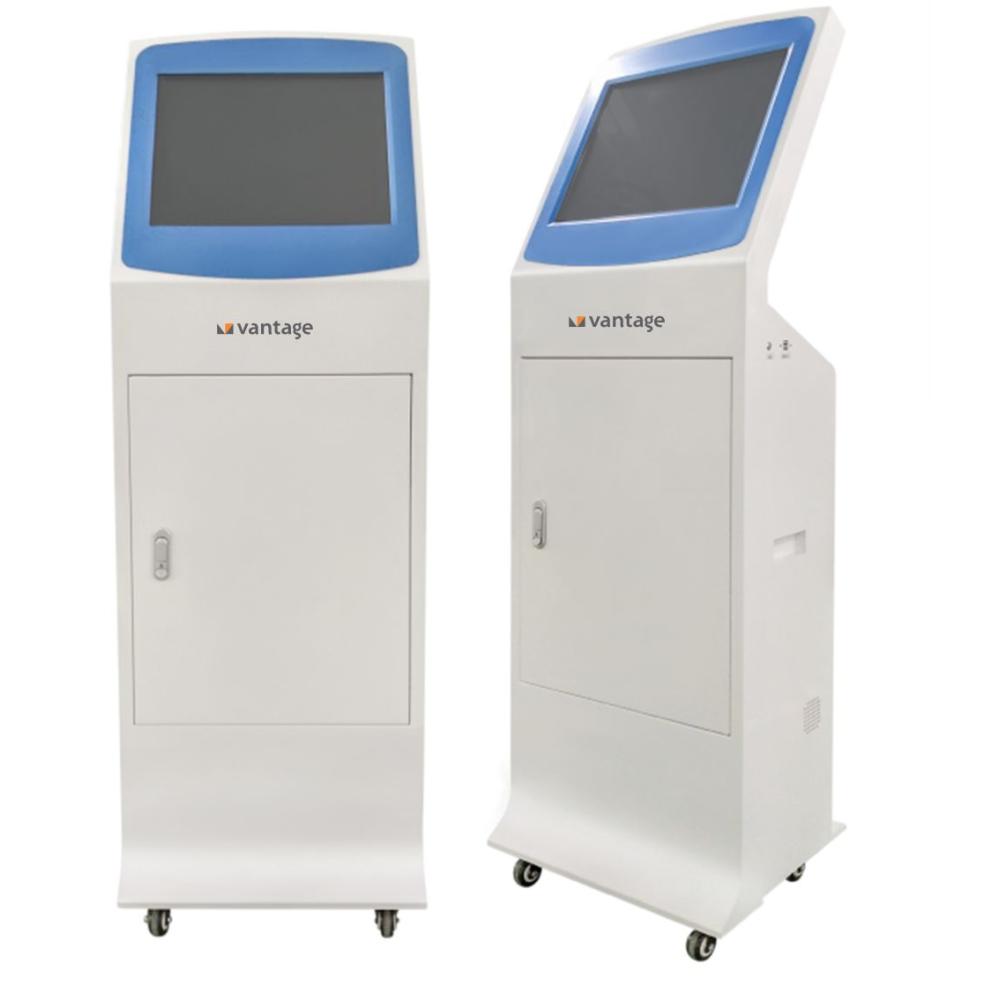

Docking Station for Body Worn Cameras

  • Vertical docking station with built-in 19 inches touch screen having 1280x1024resolution
  • Supports up to 24ports camera for simultaneous backup and recharge
  • 8 expandable hard drive slots each supporting up to 12T
  • Support Ethernet network communication interface
  • Local search and playback supported
  • Fast data export and battery recharge
  • Optional RAID protection level supported
  • Supports access to management platform to achieve centralized or distributed storage to upload data to the server automatically
  • Support different user authority access
  • Docking Capacity: Supports up to 24 cameras simultaneously for backup & charging
  • Display: Built-in 19-inch touch screen (1280×1024 resolution)
  • Storage: 8 HDD slots, each supporting up to 12TB (total up to 96TB)
  • Processor & OS: Windows 10 (64-bit) with pre-loaded management software
  • Memory & Storage Disk: 4GB RAM with 60GB SSD system disk
  • Connectivity: Ethernet (RJ45 10/100/1000), USB 2.0, HDMI ports
  • Data Transfer: Fast data export with simultaneous backup & charging
  • Interface Ports: Supports Mini USB & Type-C (optional) for device compatibility
  • Power Supply: AC 100–240V, 500W power consumption
  • Operating Environment: -10°C to +55°C, supports 24/7 continuous operation
  • Security Features: Data overwriting protection & log management
  • Software Features: Smart search (by time, file type, device ID), centralized storage management
  • RAID Support: Optional RAID protection for data security
  • Build & Design: Vertical docking station, heavy-duty industrial design
  • Dimensions & Weight: 490×405×1450 mm, approx. 65.6 kg
