Swing Gate Barrier Single/Dual Core

Swing Gate Barrier Single/Dual Core

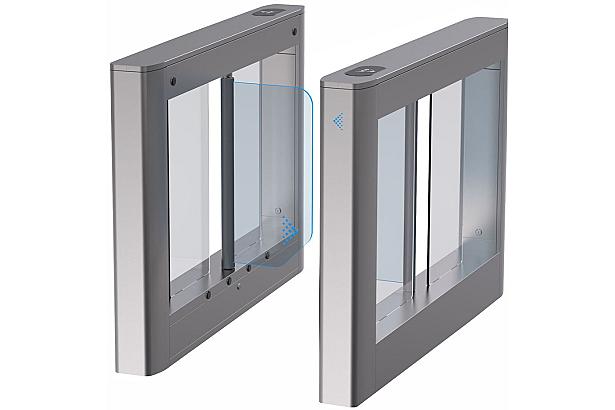

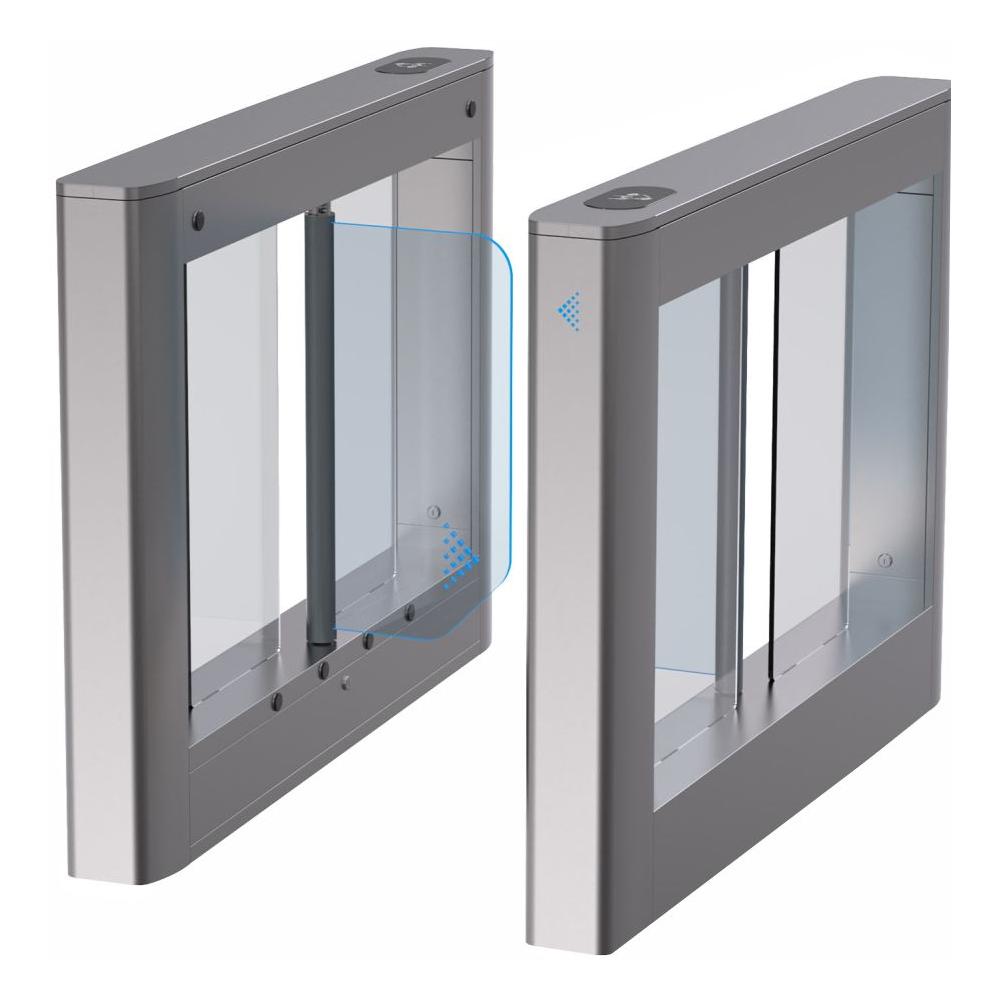

V-PM4240SC/DC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic swing gate
  • Single/dual machine core with bi-directional operating modes supported
  • Half height operation with ≤600mm standard passage width
  • LED status indicator & adjustable time out delay
  • Automatic reset of swing barrier after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe function supported in case of emergency
  • Top quality AISI 304 grade SS construction with IP54 rating

Construction & Build Quality

  • Heavy-duty motorised automatic swing gate
  • Main body: AISI 304 grade stainless steel construction
  • Door material: Acrylic flaps; side panel: Acrylic
  • IP54 ingress protection rating
  • Certifications: CE, FCC, RoHS

Passage & Throughput

  • Standard passage width: ≤600 mm; optional: ≤900 mm
  • Throughput rate: 35–40 persons per minute
  • Opening & closing speed: 0.5–1.5s
  • Passing time: 5s default (adjustable 0–25s)
  • Passage direction: Unidirectional / Bidirectional

Drive & Safety

  • Drive: Electro-mechanical DC brushless motor, 150W
  • Operating voltage: DC 24V
  • 100% duty cycle
  • 6 pairs of infrared sensors for smooth passage traffic and pedestrian protection
  • Automatic reset of swing barrier after each passage
  • Fail safe status for free passage mode on power/mechanism failure
  • Fire alarm integration supported for free passage evacuation

Integration & Communication

  • Integration support with any RFID/Biometric reader via NO input
  • LED status indicator with adjustable timeout delay
  • Communication interface: Relay Input (NO/NC/COMM); optional RS232/RS485

Electrical & Environmental

  • Power supply voltage: AC100–240V
  • Maximum power consumption: 120W
  • Working temperature: −25°C to +70°C
  • Relative humidity: ≤90% non-condensing

Dimensions & Weight

  • Overall dimensions: 1400 (L) × 160 (W) × 980 (H) mm
  • Net weight: 35 kg (single core), 40 kg (double core)
  • Service life: ≥10 million operation cycles
