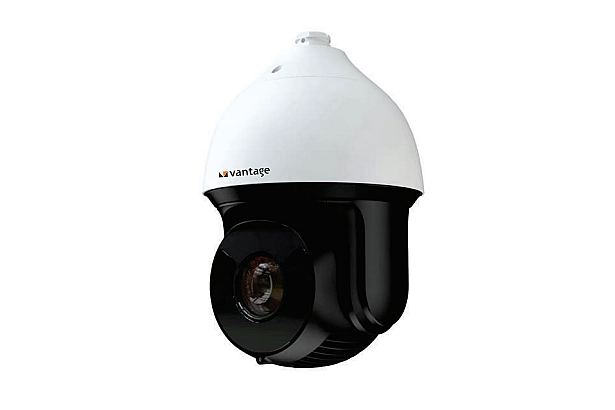

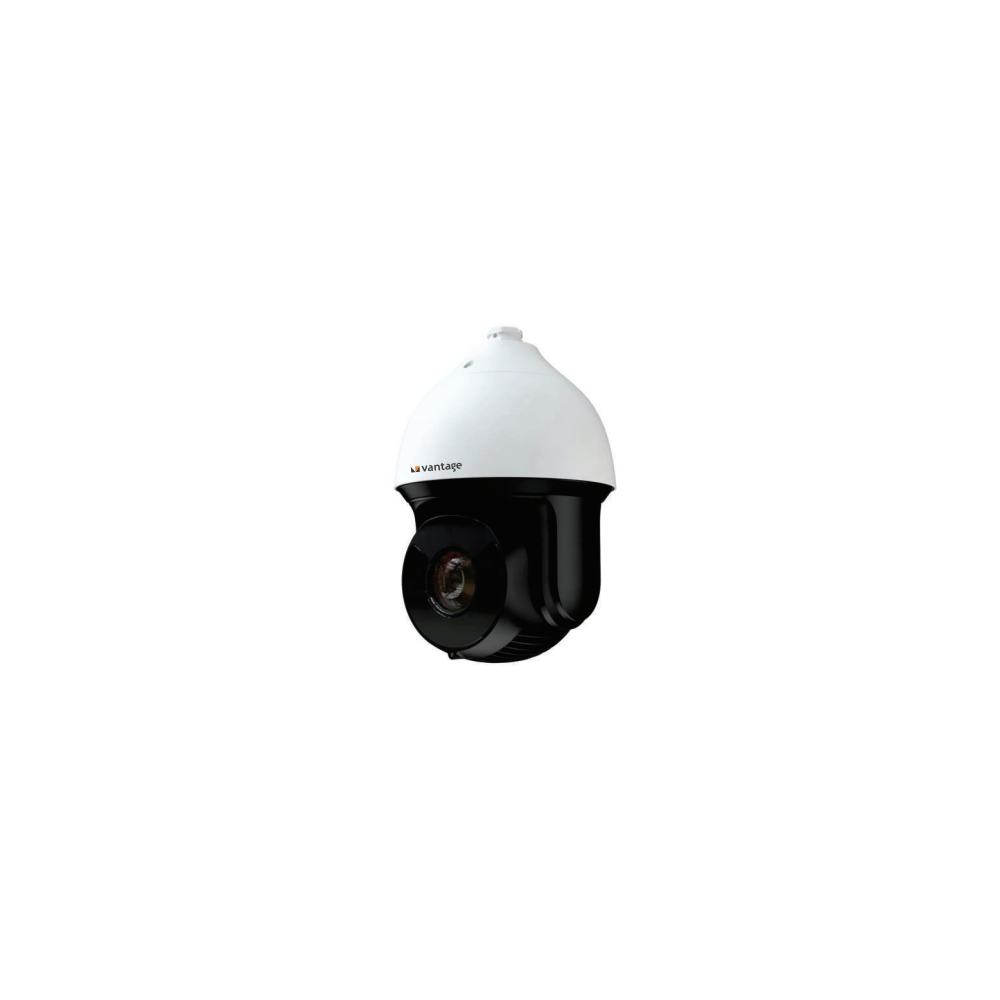

4MP IP Starlight PTZ Camera with 32x Optical Zoom and Smart AI
VP-NC9804P-AZ32IR7T1
- Full High Definition 4MP (2560×1440) resolution
- 1/1.8" Progressive Scan CMOS Sensor
- Inbuilt 120dB WDR, 3D DNR, HLC, BLC & Defog functions
- Support H.265/H.264 video compression
- 32x optical zoom, 16x digital zoom
- 360° endless panning
- Inbuilt up to 200 mtrs IR range
- IP67 Weather proof outdoor enclosure
- Sensor and resolution: 1/1.8" Progressive Scan CMOS, Full HD 4MP at 2560×1440, 25/30fps on the main stream.
- Starlight low-light performance: Large 1/1.8" sensor with minimum illumination of 0.005 Lux (colour) and 0.001 Lux (B/W), down to 0 Lux with IR active.
- Optics: 5.6mm to 179.2mm motorized lens with 32x optical zoom plus 16x digital zoom, aperture range F1.55 to F3.4.
- IR night vision: Built-in high-performance IR LEDs delivering up to 200 metres range, with True Day and Night switching via mechanical IR-cut filter.
- PTZ movement: 360° endless pan, tilt from -25° to 180° with auto flip, 300 presets, 8 patrols (up to 16 presets each), and 4 tour patterns.
- Image enhancement: 120dB WDR, 3D DNR, HLC, BLC and Defog for clear footage in high-contrast and low-visibility conditions.
- Video compression: H.265/H.264/MJPEG with triple-stream output and VBR/CBR bandwidth control.
- Smart analytics: Intrusion detection, line crossing, region entrance/exit, unattended baggage and object removal detection, scene change detection, auto-tracking of humans and vehicles, plus face recognition (up to 15 faces per second).
- Connectivity and storage: ONVIF-compliant, RJ45 10M/100M Ethernet with PoE++ (802.3bt), micro SD/SDHC/SDXC up to 256GB, 16 concurrent users, up to 6 live channels, RS485 (PELCO-P/D), plus 2CH alarm in/out and BNC CVBS output.
- Build and protection: IP67 weatherproof aluminium-alloy enclosure, IK10 impact rating, 6,000V lightning protection, operating range -50°C to +65°C. Weight approx. 6.0kg.
