What Is a Parking Guidance System?

A parking guidance system is a smart parking technology that uses sensors or cameras installed above or in front of every parking bay to detect whether that space is occupied or vacant. This real-time occupancy data is then communicated through a network of LED displays positioned throughout the parking facility, guiding drivers directly to an available bay without them having to search level by level or aisle by aisle.

For large facilities such as shopping malls, hospitals, and corporate campuses in the UAE, where parking areas can span thousands of bays across multiple levels, a parking guidance system is the difference between a smooth visitor experience and one that starts with frustration before the visitor has even entered the building.

The Problem a Parking Guidance System Solves

The core problem is simple: in a large parking facility without guidance, drivers do not know where the available bays are. They enter the facility and begin searching. This search behaviour creates a cascade of problems that affect both the visitor experience and the operational efficiency of the facility.

Congestion on every level

When drivers cannot find a bay quickly, they circle. Every circling vehicle creates additional traffic inside the facility, slowing down drivers who are arriving, departing, or navigating to specific zones. During peak hours at a busy mall, this internal congestion becomes severe and is visible to everyone entering the facility.

Visitor frustration before they reach your facility

For a shopping mall, the parking experience is the first interaction a visitor has with the property. A stressful search for parking puts visitors in a negative frame of mind before they have even walked through the entrance. Research consistently links poor parking experiences with reduced dwell time and lower spend per visit.

Staff complaints and manual monitoring burden

Without a guidance system, facility staff receive constant complaints and queries about parking availability. Security personnel are pulled away from their primary responsibilities to direct drivers, answer calls about available spaces, and manage congestion at peak times. This is an operational cost that is easy to eliminate with the right technology.

Inefficient use of available capacity

In facilities without guidance, drivers tend to cluster in the same familiar zones, leaving other areas of the car park underused. The ground floor fills up while upper levels remain half empty because drivers do not know where to go. A guidance system distributes traffic intelligently across the available capacity of the facility.

No data for facility management

Without sensors in every bay, facility managers have no reliable data on occupancy patterns, peak usage by zone, or which areas of the car park are consistently underused. This makes it impossible to make informed decisions about pricing, access restrictions, reserved zones, or expansion planning.

How a Parking Guidance System Works: Step by Step

Understanding the system is straightforward once you follow the journey of a single driver from the moment they approach the facility entrance to the moment they park.

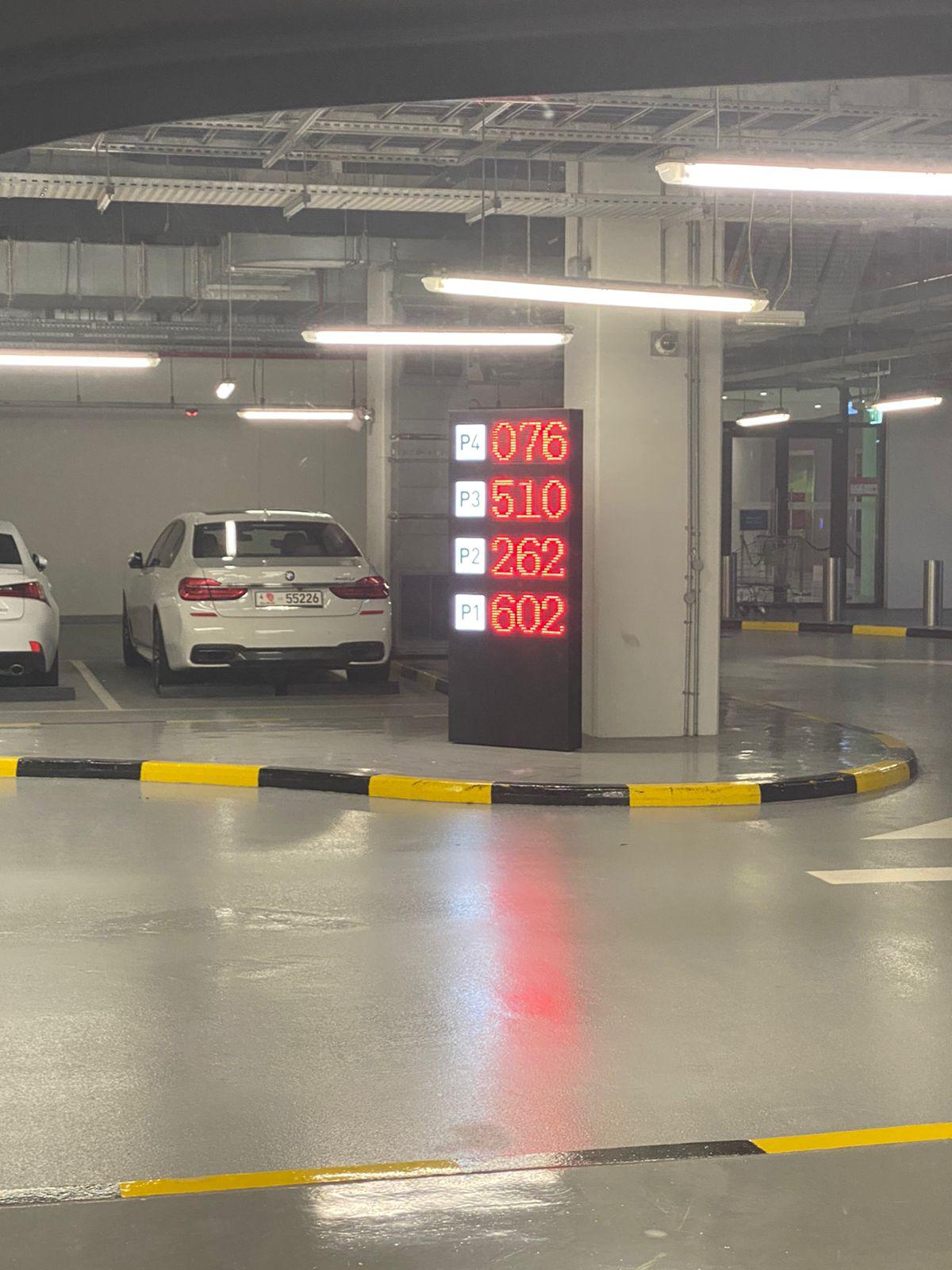

Step 1: Entrance display

Before entering the facility, the driver sees a large outdoor LED level count display at the entrance. This display shows the total number of available spaces on each floor in real time. If level 1 has 45 spaces available and level 2 has 12, the driver can make an immediate decision about which floor to head to. The display operates 24 hours a day and is visible from a distance.

Step 2: Zone directional display

Once inside the facility, indoor LED guidance displays at each decision point, such as the end of a lane or a junction between zones, show how many spaces are available in each direction. These displays provide 1-way, 2-way, or 3-way directional guidance depending on the layout of the facility. The driver follows the direction with the highest availability count.

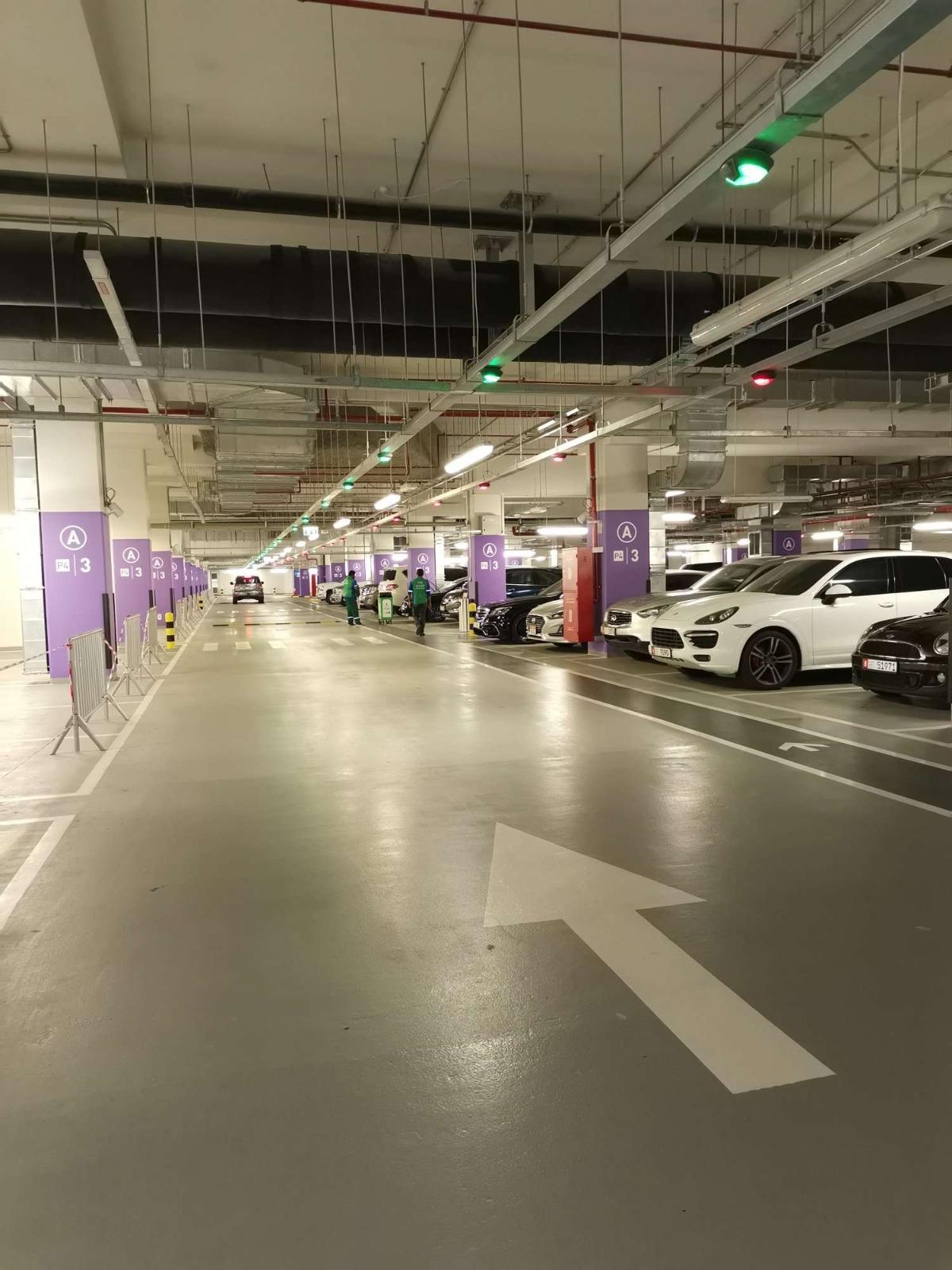

Step 3: Bay-level indicator

As the driver moves through the correct zone, they can see individual bay indicators mounted above or in front of each parking space. A green light means the bay is available. A red light means it is occupied. The driver parks in the first green bay they reach. No searching, no circling, no guesswork.

Step 4: Real-time data update

The moment a vehicle occupies a bay, the ultrasonic sensor or cameras above that bay detects the change and sends the update through the zone control unit to the central software. The indicator above the bay switches from green to red. The count on every relevant display in the facility adjusts immediately. The entire update cycle happens in real time.

Step 5: Central monitoring

Throughout this entire process, the facility management team can see the live status of every single bay in the facility on a central dashboard showing a 2D or 3D map of the carpark. They can see occupancy by zone, by level, and by individual bay, along with historical data on usage patterns, peak hours, and anomalies.

Key Components and Specifications of the Vantage Parking Guidance System - Ultrasonic Sensor Based

The Vantage Parking Guidance System is a complete end-to-end solution comprising six core hardware components, all rated for UAE operating conditions.

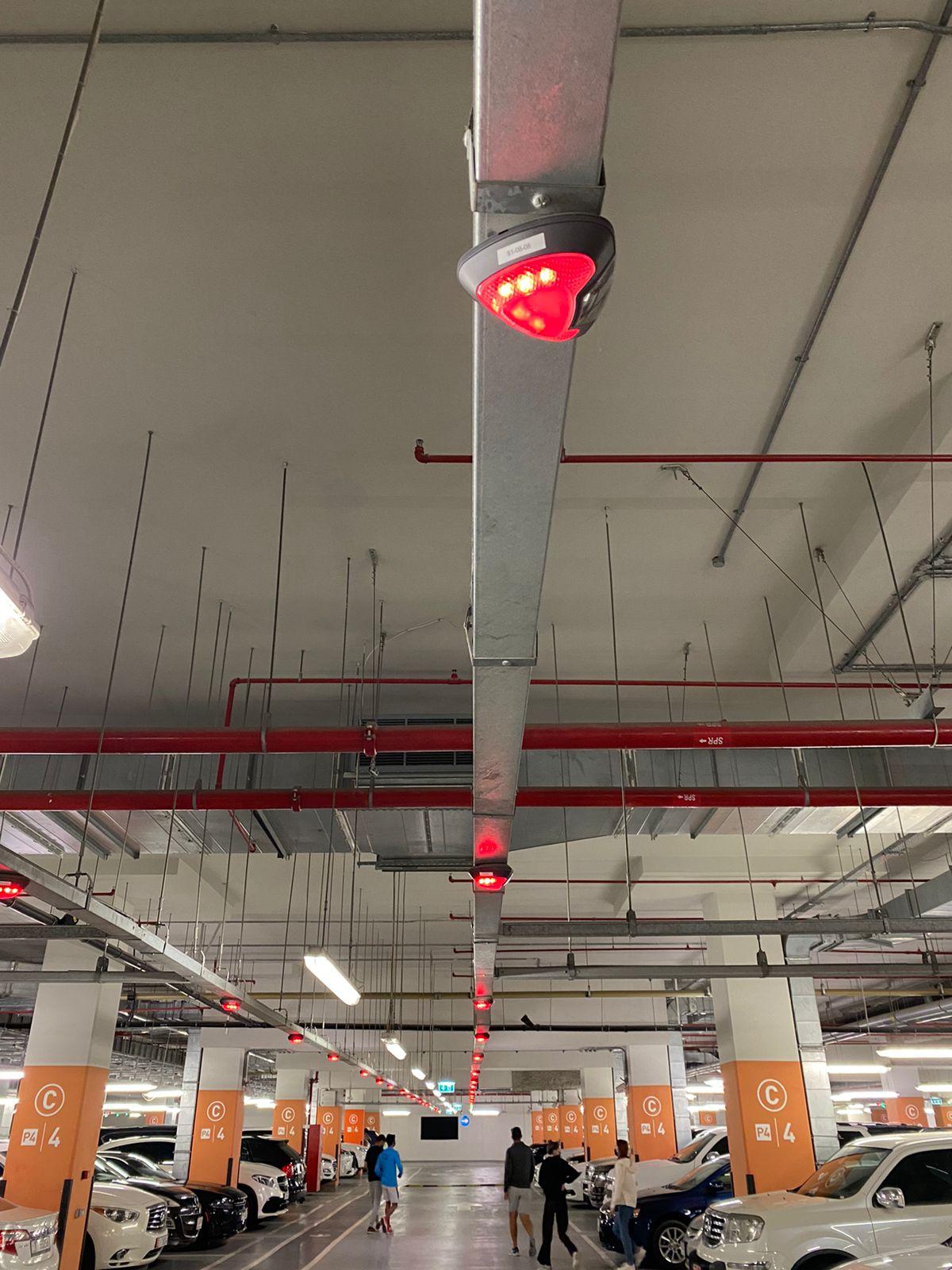

Ultrasonic Bay Sensors

One sensor is installed in front of every parking bay. The Vantage system offers two sensor variants to suit different facility requirements:

Forward Mounting Sensor (Green/Red): A built-in two-colour LED indicator as a single integrated unit. Green indicates availability, and red indicates occupation. Installation height: 2.0 to 2.7 meters. Operating temperature: -20 to +60 degrees Celsius.

Forward Mounting Sensor (RGB): Same physical specifications but supports full RGB colour output including green, red, blue, orange, yellow, cyan, white, and pink. Used when a facility needs to colour-code different bay categories such as disabled bays (blue), VIP bays (yellow), ladies-only zones, EV charging bays, or reserved bays.

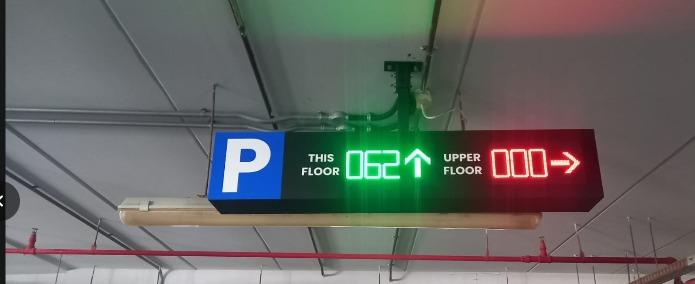

Indoor LED Guidance Displays

Installed at decision points throughout the facility, these displays guide drivers through the correct route to available bays. They support 1-way, 2-way, or 3-way directional configurations. Display luminance is 300 to 500 cd/m², clearly visible in the indoor environment. Lower power consumption design with built-in protection against short circuits, overloading, and overcurrent.

Outdoor LED Level Count Display

The large-format entrance display installed at the facility entry point. Shows available space counts per floor, updated in real time via TCP/IP. Operates 24 hours. The LED panel size is 32x16 cm. Firmware is customisable per project to display facility branding, zone names, or custom content.

Zone Control Unit

The Zone Control Unit (ZCU) is the hardware bridge between the bay sensors and the central software. It collects real-time occupancy data from all sensors within its zone and transmits it to the management platform via TCP/IP. The ZCU includes an LCD screen for on-site monitoring of sensor working status.

Server

The system runs on a dedicated server with an Intel Core processor, 16GB DDR5 memory, a 256GB PCIe NVMe SSD, and 4TB SATA storage. The operating system is Linux Debian 12.5.

Software and Dashboard Features

The Vantage Parking Guidance System software is a web-based central management platform that brings together data from every sensor, every display, and every zone control unit across the entire facility.

2D and 3D electronic map

The software renders a live 2D or 3D map of the entire parking facility, showing the real-time status of every bay. Occupied bays are shown in red and available bays in green, matching the physical indicators on the floor. Facility managers can zoom into any zone, level, or individual bay to check its status.

Real-time monitoring dashboard

The dashboard shows live occupancy data across the whole facility, including total available bays, occupancy percentage per zone, and current status of all sensors and displays. Alerts are generated automatically when a zone reaches full capacity, when a sensor goes offline, or when occupancy in a specific area triggers a defined threshold.

Reports view and download

The software generates historical occupancy reports showing peak usage by zone, by level, by hour, and by day. Facility managers can identify which zones fill up first, what time of day occupancy peaks, and how usage patterns differ between weekdays and weekends. Reports are available to download.

Permission rights control

Different user roles can be configured with access to different parts of the system. A security supervisor may have full dashboard access while a zone operator sees only their own zone. A property manager may have access to reports but not to system configuration. This role-based access control ensures the right people see the right data.

API for integration development

The software includes an open API that allows integration with third-party systems including building management platforms, property management software, mobile wayfinding apps, and external reporting tools. For UAE developments already operating a building management system, parking occupancy data can be fed directly into the wider operational picture.

Benefits of a Parking Guidance System for Facility Managers

Faster bay finding for every visitor

With guidance, a driver in a large multi-level facility can find an available bay in a fraction of the time it would take without the system. This reduces internal vehicle traffic, shortens the time between a visitor entering the facility and entering the building, and creates a measurably better first impression.

Reduced internal congestion

When drivers are directed efficiently, circling behaviour is eliminated. Vehicle movement inside the facility becomes purposeful rather than exploratory. This reduces internal congestion during peak hours, improves safety, and reduces wear on facility infrastructure from vehicles making unnecessary turns and maneuvers.

Better utilisation of available capacity

Without guidance, certain zones consistently fill before others because drivers default to familiar areas. A guidance system actively directs drivers to available spaces in less-used zones, distributing load evenly across the facility. The effective capacity of the car park is higher because all of it is being used.

Reduced staff workload

Facility staff who currently field calls and complaints about parking, direct confused drivers, or manually monitor occupancy are freed from those responsibilities. The system handles all of this automatically.

Real-time operational visibility

Facilities managers have a complete live picture of exactly what is happening in every bay, every zone, and every level of their car park at all times. Alerts notify them of developing issues before visitors notice them. Historical reports give them the data they need to make smarter operational decisions.

Special bay management

The RGB sensor variant allows colour-coded monitoring of special bay categories. Disabled bays, EV charging bays, ladies-only zones, and VIP bays can each be assigned a distinct colour. The system can alert management when a special bay is occupied by an unauthorised vehicle.

Scalable across large and complex facilities

The system is designed to scale from small facilities with a few hundred bays to large multi-level complexes with thousands of bays across multiple zones. The TCP/IP network architecture and zone control unit structure means additional zones can be added to an existing installation without replacing core infrastructure.

Which Facilities Need a Parking Guidance System in the UAE?

Any facility with a large parking area where drivers regularly struggle to find bays is a candidate for a parking guidance system. In the UAE context, the following sectors have the strongest operational case:

Shopping malls

Malls are the most common deployment environment for parking guidance systems in the region. High footfall, extreme peak periods during weekends and holidays, and the direct link between parking experience and time spent in the mall make the case compelling. Malls also typically have complex multi-level layouts with separate zones for different entrances or anchor tenants, all of which benefit from systematic bay-level guidance.

Hospitals and medical centres

Visitors to hospitals are frequently dealing with difficult personal circumstances. Adding a frustrating parking search to that experience is avoidable. Hospitals also have specific requirements for emergency vehicle access, staff parking, and patient drop-off zones that benefit from the colour-coded bay categorisation the RGB sensor variant provides.

Corporate campuses and office parks

Large corporate facilities with hundreds of employees arriving and leaving in overlapping windows create significant internal congestion without guidance. Designated staff bays, visitor zones, and executive parking can all be managed and monitored through the same system with colour-coded bay indicators.

Hotels and hospitality venues

For luxury hotels and resorts in the UAE, the arrival experience is critical to the brand. A guidance system ensures that valet and self-park zones are clearly navigable, that premium or reserved bays are protected, and that guests are never left circling a car park before checking in.

Mixed-use developments

Large mixed-use developments with residential, retail, and commercial occupants sharing the same parking infrastructure need a system that can manage multiple user categories simultaneously. The guidance system handles all user types on the same platform, directing residential occupants to their allocated zones while guiding retail visitors and office tenants to their respective areas.

UAE-Specific Considerations for Parking Guidance Systems

Installing a parking guidance system in the UAE presents specific environmental and operational challenges that the hardware must be rated to handle. The Vantage system is designed and tested for UAE conditions across the following areas:

Extreme heat tolerance

UAE summer temperatures frequently exceed 45 degrees Celsius outdoors, and parking structures without full air conditioning can reach similarly high temperatures. The Vantage ultrasonic sensors, zone control units, and outdoor LED displays are all rated for an operating temperature range of -20 to +60 degrees Celsius, providing a sufficient safety margin for UAE conditions.

High-brightness outdoor displays

Standard LED displays used in cooler climates are often unreadable in direct UAE sunlight. The Vantage outdoor LED level count display is designed for 24-hour outdoor operation with visibility specifications suited to high-ambient-light conditions, ensuring the entrance display is clearly readable at any time of day.

Dust and humidity tolerance

UAE environments present challenges of dust ingress and humidity variation. All Vantage system components are rated for working humidity of 10 to 90 percent non-condensing, and the hardware casings are specified for the conditions found in covered and semi-covered parking structures across the region.

Multi-language and custom firmware support

The outdoor LED level count display supports custom firmware, allowing displays to show content in Arabic and English as required by UAE facilities. Zone names, floor labels, and directional terminology can all be customised to match the facility branding and language requirements.

API integration with UAE building systems

Major UAE developments typically operate building management systems from providers such as Honeywell, Siemens, or Johnson Controls. The Vantage software API is designed for integration development, allowing parking guidance data to feed into wider building management dashboards without proprietary lock-in.

How to Choose the Right Parking Guidance System for Your Facility

When evaluating parking guidance systems for a UAE facility, consider the following criteria before committing to a supplier:

Bay count and facility complexity

The system must scale to your facility's total bay count and layout complexity. A multi-level mall with 2,000 bays across six levels has very different requirements from a 300-bay corporate carpark on two levels. Ensure the system architecture can handle your scale without performance degradation.

Sensor type and bay category requirements

If your facility has special bay categories such as disabled, ladies-only, EV charging, VIP, or reserved bays that need separate colour coding and monitoring, you need RGB sensors. If all bays are standard, Green/Red sensors are sufficient and more cost-effective. Clarify this requirement before specifying the system.

Display configuration for your layout

The number and configuration of indoor guidance displays depend entirely on your facility layout. A long single-aisle structure needs different display placement than a wide multi-aisle level with multiple decision points. The system supplier should provide a layout plan showing display placement before installation.

Software licensing model

Some parking guidance software platforms charge annual subscription fees that add up significantly over a 10-year facility lifespan. The Vantage system uses a one-time licence model with no recurring charges. Factor the total software cost over the expected lifespan of the installation into your comparison.

Integration capability

If your facility operates a parking management system, building management system, or mobile app, confirm that the guidance system software has an open API and a track record of successful integrations. Closed or proprietary systems that cannot communicate with other platforms create operational silos that limit the value of your investment.

Local installation and support

Hardware in a parking facility is operational 24 hours a day. When a zone control unit or display fails, you need a local technical team that can respond quickly. Confirm that your supplier has UAE-based technical support and spare parts availability before signing off on a project.

Frequently Asked Questions

What is a parking guidance system?

A parking guidance system uses sensors installed at every bay to detect occupancy in real time and displays this information through LED count displays and directional signs throughout the facility. It guides drivers to available bays without them needing to search, reducing search time and internal congestion.

What is the difference between a parking guidance system and a parking management system?

A parking management system controls vehicle access and payment at the entry and exit of a facility using ANPR cameras, boom barriers, and payment kiosks. A parking guidance system works inside the facility, directing drivers to available bays using sensors and displays. The two systems are complementary and are often deployed together.

What type of sensors does the Vantage Parking Guidance System use?

The system uses ultrasonic sensors with built-in LED indicators mounted in front of each bay. Two variants are available: a Green/Red indicator for standard bays and an RGB indicator for facilities that need colour-coded bay categories such as disabled, VIP, ladies-only, or EV charging bays.

Can the system manage different types of bays separately?

Yes. The RGB sensor variant supports multiple colours including blue for disabled bays, yellow for VIP bays, and other colours for ladies-only zones and EV charging bays. Each bay type can be monitored separately on the management dashboard, and alerts can be configured for misuse of designated bays.

Can the system integrate with our existing building management software?

Yes. The software includes an open API for integration development, allowing parking occupancy data to be fed into third-party building management systems, property management platforms, and mobile applications.

Is the hardware suitable for outdoor use in the UAE?

Yes. All Vantage system components are rated for operating temperatures of -20 to +60 degrees Celsius and humidity of 10 to 90 percent non-condensing. The outdoor LED level count display is designed for 24-hour outdoor operation with high-brightness visibility in direct sunlight conditions.

How many bays can the system support?

The system architecture uses a TCP/IP network with zone control units managing groups of sensors, allowing it to scale from small facilities to large multi-level complexes with thousands of bays across multiple zones.

How long does installation take?

Installation timescales depend on the number of bays, levels, and zones in the facility. Vantage Security manages the full installation, including sensor mounting, display installation, network cabling, zone control unit configuration, and software setup. A site survey and installation plan is provided before project commencement.

Conclusion: Smarter Parking Starts with Real-Time Guidance

For any large parking facility in the UAE, the question of whether to install a parking guidance system has a straightforward answer: the cost of not having one is paid every day in visitor frustration, staff time lost to manual direction, underused capacity, and the absence of any reliable data to manage the facility by.

The Vantage Parking Guidance System addresses all of these problems through a complete hardware and software solution built for UAE conditions. Ultrasonic sensors at every bay feed real-time data through zone control units to a central management platform. LED displays guide drivers from the facility entrance to a specific available bay in the shortest possible time. The software provides 2D and 3D facility maps, live occupancy monitoring, historical reports, role-based access control, and an open API for third-party integration, all on a one-time license with no recurring charges.

Whether you are planning a new parking facility or looking to upgrade an existing one, Vantage Security provides end-to-end supply, installation, and support for parking guidance systems across the UAE and GCC.
