Every vehicle that enters a gated community, a mall car park, a corporate campus or a logistics yard announces itself with a number plate. An ANPR camera reads that plate automatically, checks it against a database in a fraction of a second, and triggers whatever comes next: a barrier lifts for a resident, a parking session starts for a visitor, or a security alert fires for a blacklisted vehicle.

Across the world, ANPR has moved from a specialist traffic enforcement tool to standard infrastructure for entrance management. This guide explains how automatic number plate recognition works, what separates a true ANPR camera from ordinary CCTV, how to match camera type to your site, and the use cases where users see the strongest return on their investment.

Table of contents

• What is an ANPR camera and how does it work?
• ANPR vs LPR: is there a difference?
• What separates an ANPR camera from standard CCTV cameras?
• How to choose: match the camera to the distance and speed
• Vantage ANPR camera range at a glance
• Top ANPR use cases globally
• Integration with parking and barrier systems
• ANPR camera buying checklist
• Frequently asked questions



What is an ANPR camera and how does it work?

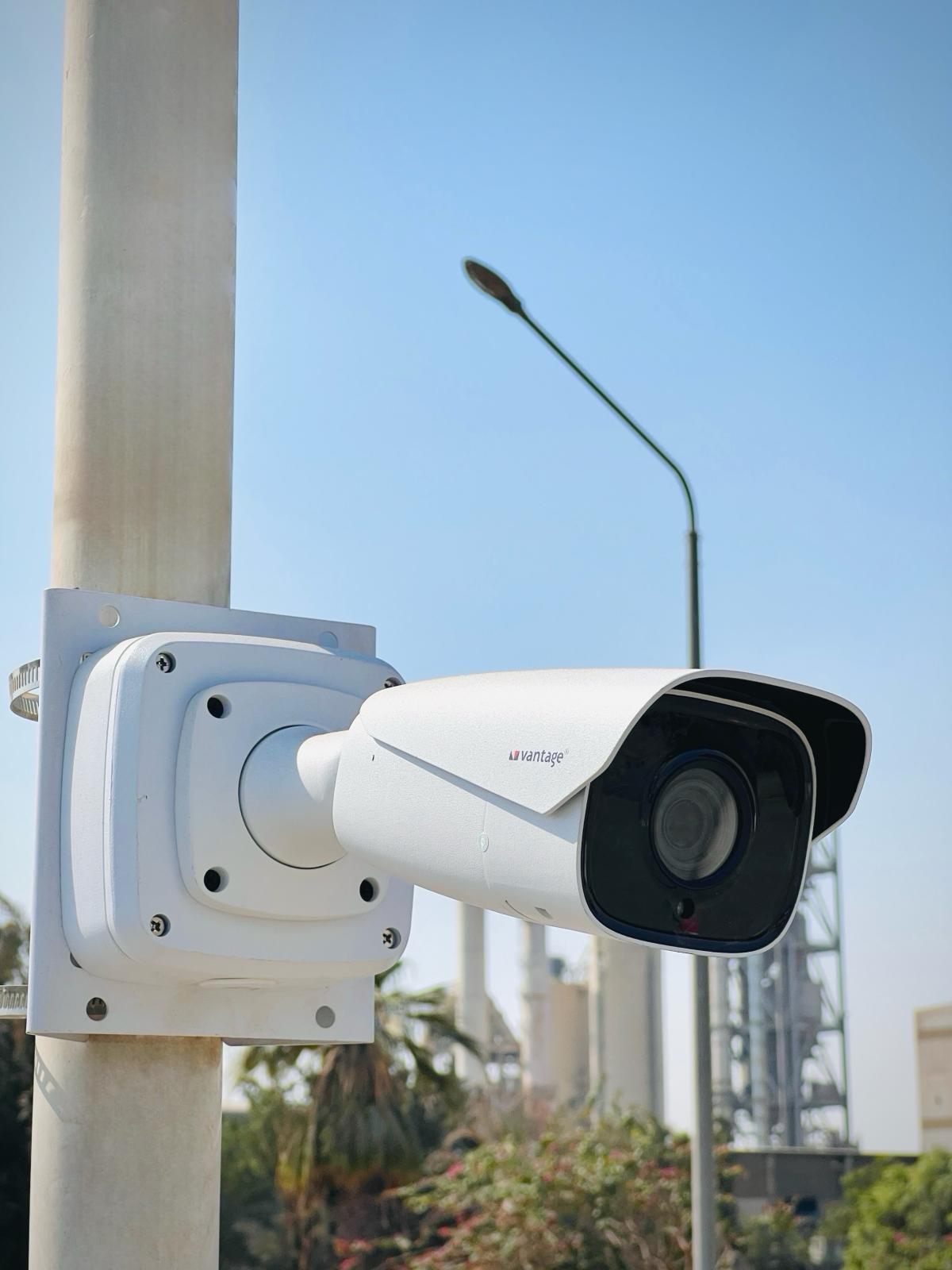

An ANPR (automatic number plate recognition) camera is a specialised IP camera that captures an image of a vehicle, locates the number plate within the frame, reads the characters using optical character recognition, and outputs the plate as machine readable text along with a snapshot. The whole cycle happens on the camera itself in real time.

The recognition pipeline has four stages:

• Capture: the camera detects a vehicle in its recognition zone and takes a high shutter speed snapshot, using infrared or white light illumination at night.
• Plate localisation: onboard analytics find the plate within the image, compensating for angle, headlight glare and partial obstruction.
• Character recognition: an OCR engine converts the plate image to text, with fault tolerance for worn or dirty plates.
• Action: the plate is matched against an onboard database, an allow list or a deny list, and the camera triggers an output such as a barrier relay, an alarm, or an event pushed to parking or security software.

Modern Vantage ANPR cameras hold an onboard database of up to 10,000 vehicle plates, which means gate decisions do not depend on a live server connection. Higher end models go further and extract vehicle attributes such as type, colour and travel direction alongside the plate itself.

ANPR vs LPR: is there a difference?

None in practice. ANPR (automatic number plate recognition) is the term used in the UK, Europe and the Gulf, while LPR (license plate recognition) is the North American term for the same technology. You will see both on datasheets and in tenders. Vantage lists its range under LPR/ANPR cameras, and every model in the category performs the same core function: reading plates automatically and acting on them.

What separates an ANPR camera from standard CCTV cameras?

A common and costly mistake is assuming any high resolution CCTV camera can perform as an ANPR camera. Reading a fast moving reflective plate at night is a fundamentally different imaging problem from general surveillance, and purpose built ANPR cameras differ in five ways:

• Very fast electronic shutter, up to 1/100,000s, to freeze plate characters without motion blur at road speeds.
• High intensity smart IR or white light illumination tuned to light the plate without overexposing it, with ranges of 50 to over 100 metres on the Vantage range.
• Wide dynamic range of 120dB to handle headlight glare at night and harsh sun and shadow contrast at gate lines.
• Onboard recognition engine with a plate database, allow and deny lists, and relay outputs, so the camera can open a barrier on its own.
• Optical Character Recognition (OCR) in an Automatic Number Plate Recognition (ANPR) camera is the core technology that converts raw visual images of vehicle license plates into machine-readable alphanumeric text.
• Rated capture speed of up to 120 km/h, so the plate is read reliably even when drivers do not slow down.

How to choose: match the camera to the distance and speed

The single biggest selection factor is the geometry of your site: how far the camera sits from the plate, and how fast vehicles pass. The Vantage range splits into three deployment tiers.

1. Short range gate cameras (3 to 8 metres)

For barrier gates, villa community entrances and ramp entries where the camera mounts close to the vehicle, the VP-NC91274B-AZIR3NPT1 is the fit. Its 2.8 to 12mm motorised lens with a bright F1.3 aperture gives a wide field of view of over 100 degrees, its recommended ANPR distance is 3 to 8 metres, and its 50 to 70 metre IR range covers the approach lane. This is the workhorse for compact entry points.

2. Mid-range lane cameras (7 to 30 metres)

For car park entry lanes, compound roads and perimeter gates where the camera mounts on a pole or gantry, two 4MP models cover the 7 to 30 metre band with 8 to 32mm motorised zoom lenses. The VP-NC91274B-AZ4IR4NPT1 uses smart IR illumination with a 70 to 100 metre range and adds vehicle feature extraction, reading vehicle colour, type, brand and model alongside the plate. The VP-NC91274B-AZ3IR5NPT1 adds vehicle type detection with rich on-image OSD overlay of snapshot time, location, plate and plate colour, useful where captured evidence needs to be self-documenting.

3. White light and integration flagship (up to 120 km/h)

For toll style free flow lanes, campus roads and any site where vehicles will not stop, VP-NC92294B-AZ4WL5NPT1 is the flagship model with a 8-32mm lens. It captures plates at up to 120 km/h, with recognition accuracy above 98 percent, a capture rate above 99 percent and an accidental capture rate below 2 percent. Its ultra-low light sensor works at 0 lux with LED on, 120dB WDR handles headlight bloom, and its built in AI detects vehicles with and without license plates, vehicle type and brand and much more. White light illumination produces full colour images at night, and dual alarm inputs and outputs plus both RS485 and RS232 interfaces make it the strongest integrator with barriers, intercoms and legacy controllers.

Vantage ANPR camera range at a glance



ANPR cameras

Specification	VP-NC91274B-AZIR3NPT1	VP-NC91274B-AZ4IR4NPT1	VP-NC92294B-AZ4WL5NPT1	VP-NC91274B-AZ3IR5NPT1
Resolution	4MP	4MP	4MP	4MP
Lens	2.8 to 12mm motorised, F1.3	8 to 32mm motorised, F1.6	8 to 32mm motorised, F1.6	8 to 32mm motorised, F1.6
ANPR distance	3 to 8m	7 to 30m	7 to 30m	7 to 30m
Night illumination	Smart IR, 50 to 70m	Smart IR, 70 to 100m	White light (colour at night)	Smart IR, 70 to 100m
WDR	120dB	120dB	120dB	120dB
Capture speed	Up to 120 km/h	Up to 120 km/h	Up to 120 km/h	Up to 120 km/h
Plate database	10,000	10,000	10,000	10,000
Standout feature	Wide FoV for close gates	Vehicle feature extraction	White light, dual alarm I/O, RS485 and RS232	Vehicle type detection, OSD overlay
Enclosure	IP67	IP67	IP67	IP67

8MP ANPR cameras are also being released shortly.

Top ANPR use cases globally

Gated communities and residential compounds

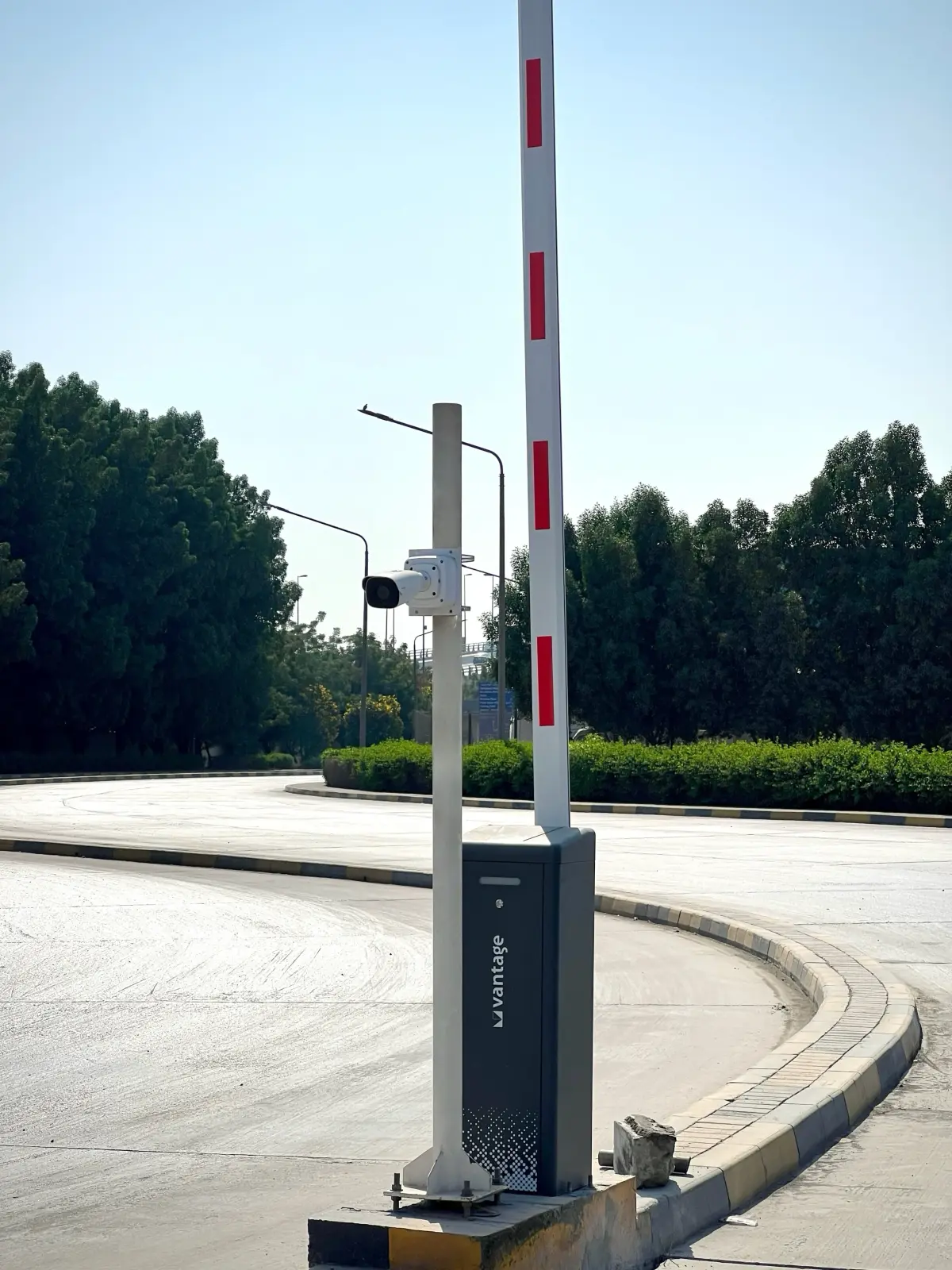

Resident vehicles are enrolled once in the plate database and the barrier opens automatically on approach, with no cards, remotes or guard intervention. Visitor plates can be registered for a time window and expire automatically. Guards deal with exceptions instead of every vehicle, and every entry and exit is logged with a timestamped snapshot.

Commercial parking facilities

ANPR is the backbone of ticketless parking. The camera reads the plate at entry, the parking management platform opens a session, and the same plate closes the session at exit, calculating duration and fee with no paper ticket to lose. Vantage ANPR cameras integrate directly with the Vantage parking management platform, which already runs live deployments handling hundreds of vehicle movements per day. For a deeper look at that side of the system, see our guide to parking management systems for commercial buildings.

Corporate campuses and government facilities

Facilities with contractor traffic, staff vehicles and VIP movements use ANPR to segment access by plate list: staff plates open staff gates, registered contractor plates are admitted only during working hours, and unknown plates are held at the barrier. Wiegand output on the camera lets it feed an existing access control panel the same way a card reader would.

Hotels, malls and mixed use destinations

High traffic destinations use ANPR for valet automation, licence based loyalty recognition and queue reduction at peak times. White light models produce full colour night captures at porte cochere entrances where IR monochrome images are not enough.

Logistics yards, ports and industrial sites

Gate automation for trucks is one of the fastest payback use cases: the plate is read on approach, matched against the expected delivery schedule, and the gate transaction is logged automatically. ANPR at vehicle checkpoints also pairs naturally with under vehicle surveillance for layered screening at sensitive sites.

Traffic monitoring and enforcement support

On private road networks, free zones and campuses, ANPR cameras log every plate that passes while flagging vehicle type and travel direction, giving operators both an evidence trail and live situational awareness.

Integration with parking and barrier systems

An ANPR camera earns its keep through what it triggers. The Vantage range connects to the wider entrance ecosystem in three ways: relay alarm outputs that drive barrier gates directly, Wiegand output that emulates a card reader into any access control panel, and network integration with NVRs, central monitoring software and the Vantage parking management platform. RS485 is supported across the range, and the white light model adds RS232 for legacy intercom and controller integration. Because the plate database lives on the camera, the barrier keeps working even if the network link to the server drops.

ANPR camera buying checklist

• Measure the real camera to plate distance and pick the matching tier: 3 to 8m short range or 7 to 30m lane range.
• Match illumination to the site: IR for standard lanes, white light where colour night capture matters.
• Check maximum vehicle speed at the capture point against the camera's rated capture speed.
• Confirm WDR rating of at least 120dB for gate lines that face headlights or low sun.
• Verify integration outputs you need: relay, Wiegand, RS485 or RS232.
• Size the onboard plate database against your resident, staff and contractor vehicle count.
• Insist on IP67 protection and verified high temperature operation for outdoor mounting.
• Plan edge storage: microSD up to 256GB keeps snapshots safe during network outages.

Frequently asked questions

What is the difference between ANPR and LPR cameras?

There is no technical difference. ANPR is the UK and Gulf term and LPR is the North American term for the same automatic plate reading technology. Vantage lists the range under LPR/ANPR cameras.

Can ANPR cameras read plates at night or in low light?

Yes. Vantage ANPR cameras use high intensity smart IR or white light illumination with ranges from 50 to over 100 metres, ultra-low light sensors that operate down to 0 lux with illumination active, and 120dB WDR to neutralise headlight glare.

At what vehicle speed can an ANPR camera capture plates?

Vantage models capture plates at vehicle speeds up to 120 km/h.

How many number plates can the camera store onboard?

The 4MP range holds an onboard database of up to 10,000 vehicle plates, so allow list and deny list decisions happen on the camera itself without depending on a live server connection.

Can ANPR cameras open barriers and integrate with parking systems?

Yes. The range provides relay alarm outputs to drive barriers directly, Wiegand output to connect to access control panels like a card reader, RS485 across the range, and network integration with NVRs, CMS software and the Vantage parking management platform used in live deployments.

Choose the right ANPR camera with Vantage

Vantage Security supplies UK engineered ANPR cameras with local support for site assessment, installation and integration with parking and access control systems. Explore the full LPR/ANPR camera range, or contact our team for a recommendation matched to your gate geometry, traffic speed and integration requirements.
