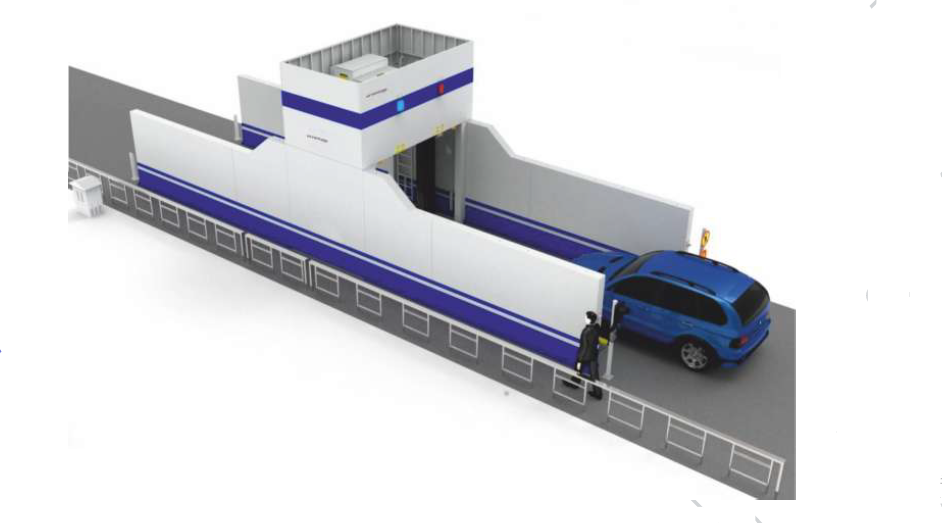

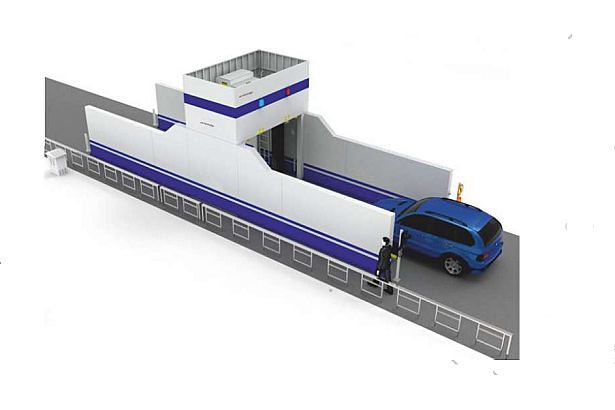

Cargo and Vehicle Inspection X-Ray Scanner- Conveyor Based
VP-XR3030-VSS16
- Efficient full vehicle scanning system for mandatory inspection at traffic control points
- Designed for inspection application of passenger vehicles and small cargo including mini buses
- State-of-the-art low-dose 300 kV X- ray scanner with 3m x 3m portal- shaped detection system
- Vertical X-ray scanning of vehicle from top to bottom for effective imaging for detection of contraband, illegal drugs, weapon and other dangerous objects
- Equipped with gantry rail to automatically move the cars and vehicles forward through the tunnel
- Complies with the ANSI 43.17 regulations for general use
X-ray Source & Performance
- Single 300 kV dual-energy accelerator, top-to-bottom vertical scanning direction
- Penetration: typical 65 mm steel; application 40 mm steel
- Mixed dose to passengers: <0.2 µSv per scan
- Dose rate outside: public area <0.5 µSv, compliant with IAEA standard
- Complies with ANSI 43.17 regulations for general use (low-dose drive-through scanning)
Image Resolution & Detection
- Wire resolution: dia 1.2 mm copper wire
- Dual-energy detection via 3 m x 3 m portal-shaped detection system
Imaging Features & Software
- Vertical top-to-bottom X-ray imaging for detection of contraband, illegal drugs, weapons, and other dangerous objects
- PC-based operator workstation with 24" LCD display
- Gantry rail system automatically moves cars and vehicles forward through the tunnel
Tunnel Size & Throughput Performance
- Tunnel size: 3 (L) x 3 (H) m portal
- Scanning speed: 5 to 10 km/h
- Typical throughput: 150 vehicles/hour
- Maximum vehicle length: 20 m and extendable
- Designed for passenger vehicles and small cargo including mini buses
Electrical & Environmental
- Operation power: 220VAC (±10%), 50±3 Hz
- Maximum power consumption: 3 kVA
- Working temperature: -15°C to 55°C at 5% to 95% humidity (non-condensing)
- Storage temperature: -40°C to 70°C at 5% to 95% humidity (non-condensing)
Dimensions & Installation
- Equipment dimensions: 16.5 (L) x 6.5 (W) x 5.5 (H) m
- Ideal installation area: 16.5 (L) x 6.5 (W) x 6.5 (H) m
Compliance & Certifications
- Certifications: CE, FCC, RoHS
