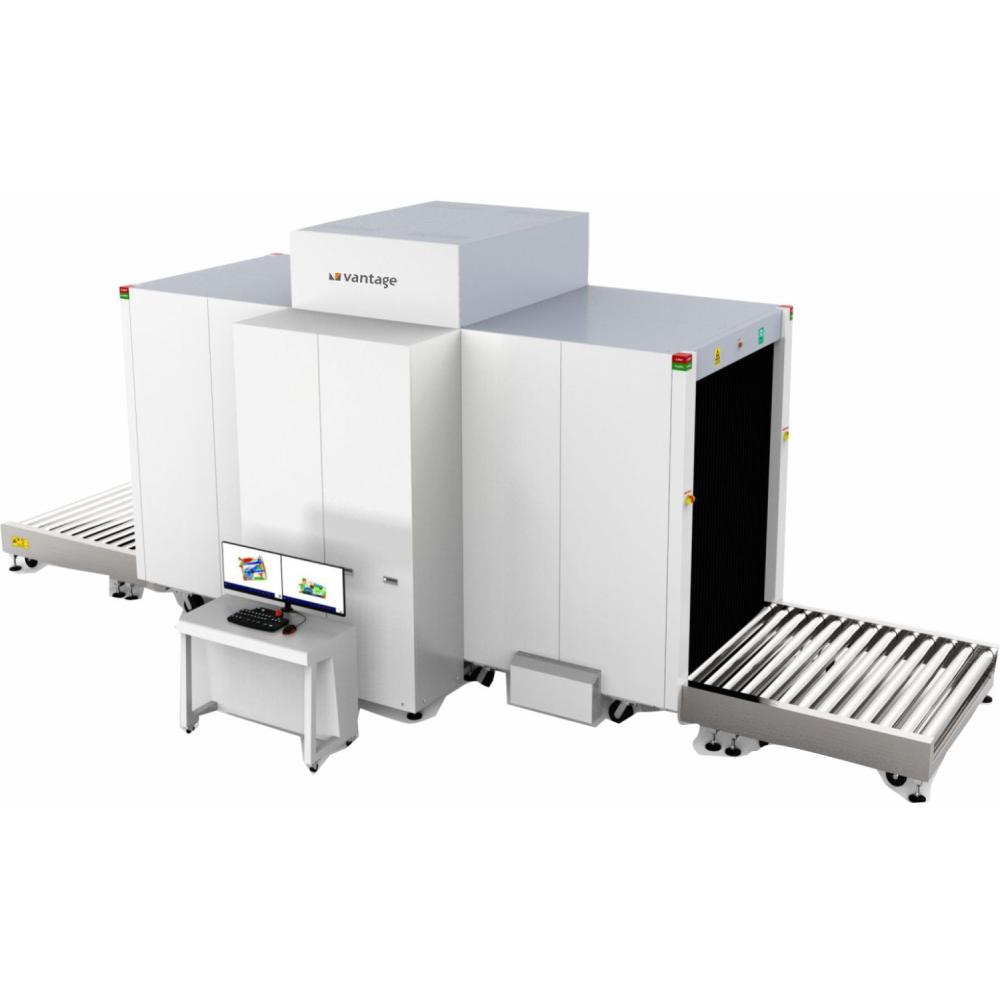

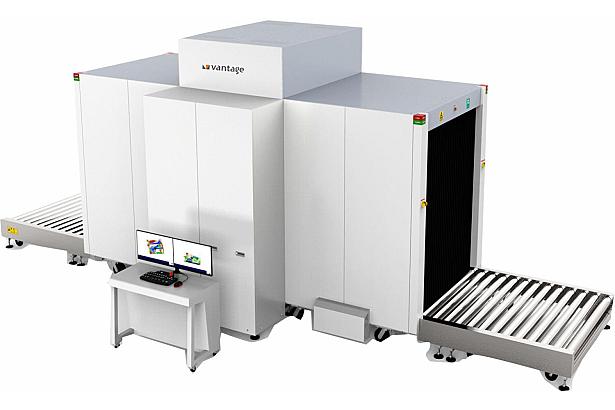

X-Ray Cargo Scanner with Dual 200KV Generators and 150x180cm Tunnel Size

X-Ray Cargo Scanner with Dual 200KV Generators and 150x180cm Tunnel Size
VP-XR1518D-BSS16
  •  Radiation safe dual X-ray generator technology with high penetration
  •  Suitable for scanning large baggage at borders/ immigration security check points and cargo terminals
  •  Dual view display with high resolution imaging for efficient security
  • Clear and distinct imaging with improved zooming ratio up to 64 times
  • Dual energy penetration system supports high/low density and organic/inorganic discerning
  •  Auto-inspection of drugs and explosives with threat alert system
  •  Supports real-time storage and retrieval of scanned images
  •  Energy saving & environmental protective design
  • Tunnel size 1505(W) × 1800(H)mm with conveyor speed 0.22m/s forward and backward, conveyor height 350mm, and maximum load capacity 2000kg
  • Dual X-ray generators for dual-view screening with 200KV tube voltage, vertical and horizontal beam direction, wire resolution 36AWG, and penetration resolution 30AWG
  • L-shaped array detector with steel penetration 38–40mm and spatial resolution 1.3mm vertical and 1.3mm horizontal
  • 100% duty cycle, sealed oil cooling, noise level below 60dB, and film safety guaranteed at ASA/ISO 1600
  • Dual 27" monitors at full HD 3840×2160 resolution with variable zoom up to 64x and 30 images recallable
  • Storage capacity up to 50,000 images automatically with USB transfer option and Windows 10 operating system
  • Single console with 3.3GHz core CPU, 4GB RAM, 1TB HDD, keyboard, three-phase electric motor, and integrated roller tables on both sides
  • Optional functions include video surveillance system, LED prompt screen, voltage stabilizer, and UPS backup
  • Working temperature 5°C to 40°C, working voltage AC220V (+10% to -15%) 50±3Hz, overall dimensions 7787(L) × 2423(W) × 2837(H)mm, net weight 4000kg, max power consumption 2.5KW, certified CE, FCC, and RoHS
