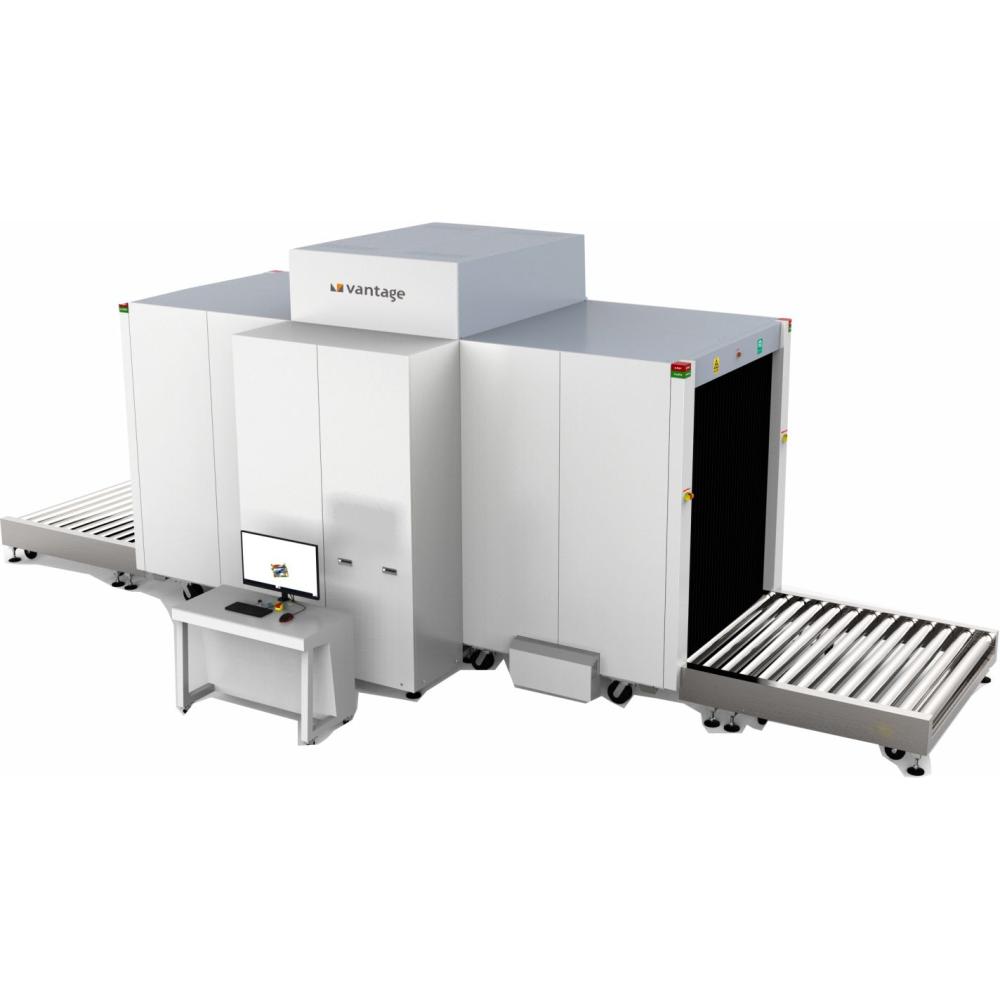

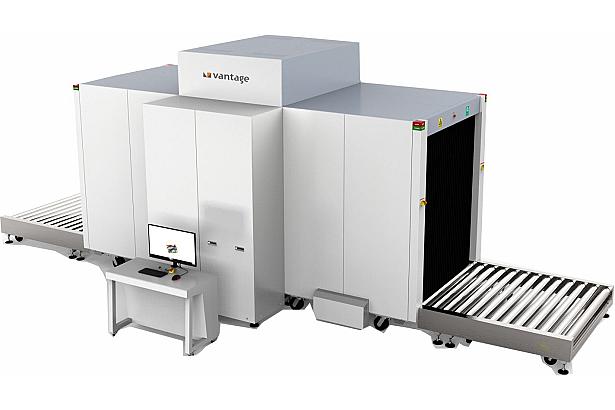

X-Ray Cargo Scanner with 200KV Generator and 150x180cm Tunnel Size

X-Ray Cargo Scanner with 200KV Generator and 150x180cm Tunnel Size
VP-XR1500-BSS16
  •  Single X-ray generator & single displaying technology for efficient security
  •  Dual energy penetration system supports high/low density and organic/inorganic discerning
  •  Auto-inspection of drugs and explosives with threat alert and material classification
  •  Supports real-time storage and retrieval of scanned images
  •  System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for large baggage and cargo at airports, train stations, cargo checkpoints, borders and other security check points
  • Energy-saving & environment-protective design

X-ray Source & Performance

  • Single 200 kV X-ray generator (tube voltage) for single view, horizontal beam direction
  • Steel penetration: 43 mm; penetration resolution: 32 AWG
  • X-ray dose per inspection: ≤4.5 µSv
  • Film safety: in accordance with ASA/ISO 1600 film safe standard
  • 100% duty cycle; sealed oil cooling
  • Radiation leakage: ≤1 µSv/h at any point 5 cm outside the external surface (FDA standard is ≤5 µSv/h)
  • Noise level: ≤60 dB

Image Resolution & Detection

  • Wire resolution: 38 AWG
  • Spatial resolution: vertical diameter 1.3 mm, horizontal diameter 1.3 mm
  • L-shaped array detector (dual energy penetration system)

Imaging Features & Software

  • Colour/black and white imaging with local enhancement, high/low penetration, organic and inorganic discerning, reverse colour, brightening/darkening, gray level scan/variable density, pseudo colour imaging, edge enhancement; alerts upon detection of suspicious items
  • Variable zoom up to 64x with continuous magnification
  • Image retrieval: 30 images; image archive up to 50,000 images stored automatically, transferable to USB drive
  • Windows 10 operating system; single console with 3.3 GHz core CPU, 4 GB RAM, 1 TB HDD, keyboard
  • Single 21.5" monitor, full HD resolution 1920 x 1080
  • Optional functions: video surveillance system, LED prompt screen, voltage stabilizer, UPS backup
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 1505 (W) x 1800 (H) mm
  • Conveyor speed: 0.22 m/s, forward or backward
  • Conveyor height: 350 mm
  • Load capacity: 2000 kg
  • Roller table integrated on both sides; three-phase electric motor

Electrical & Environmental

  • Supply: AC220V (+10%/-15%), 50±3 Hz
  • Maximum power consumption: 2 kW
  • Working temperature: 5°C to 40°C at 0% to 90% humidity (non-condensing)
  • Storage temperature: -20°C to 60°C at 10% to 90% humidity (non-condensing)

Dimensions & Weight

  • Overall dimensions: 7127 (L) x 2422 (W) x 2338 (H) mm
  • Net weight: 3100 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS and FDA
