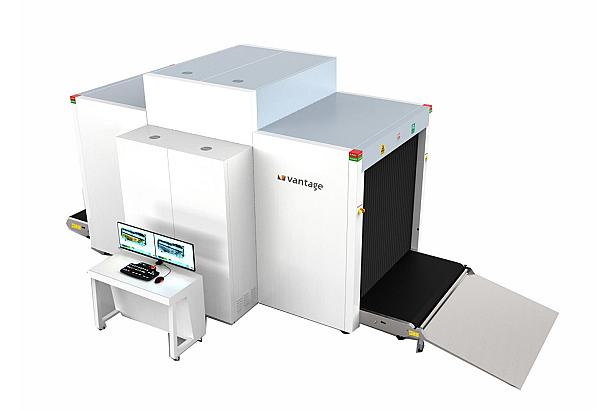

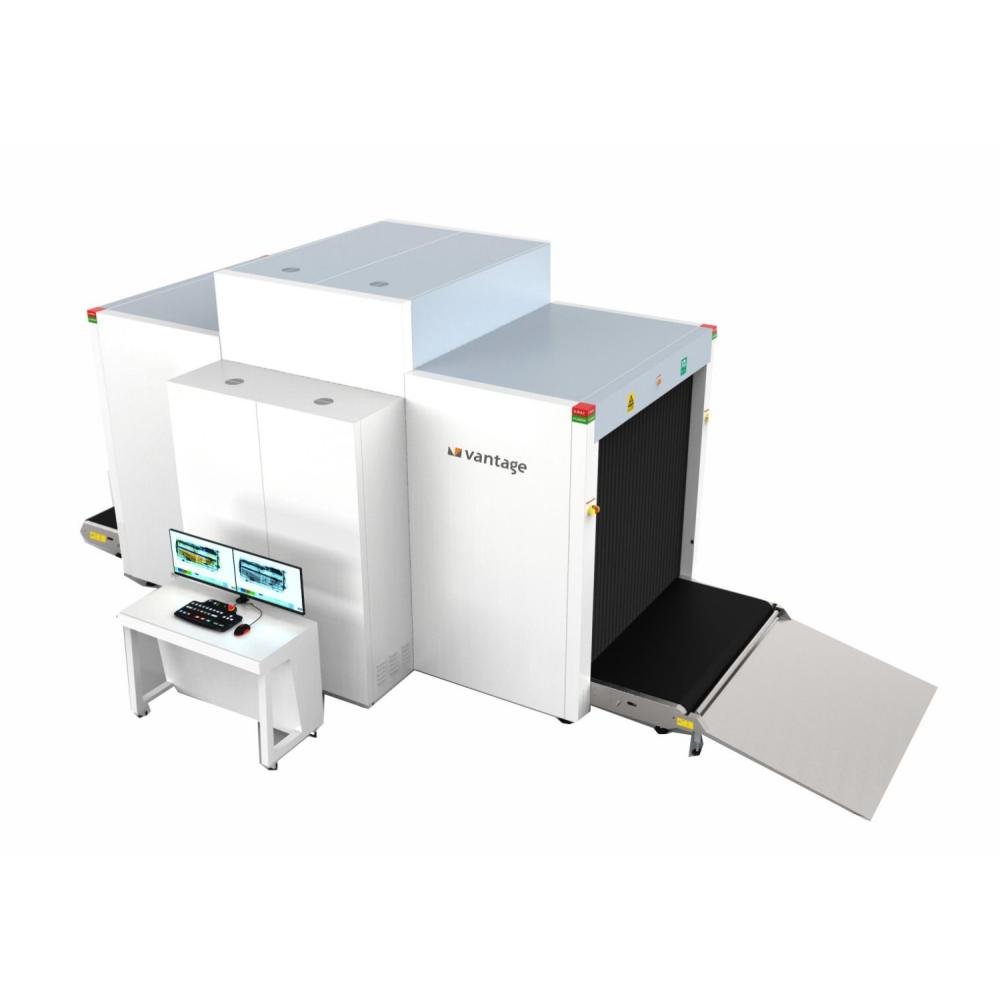

X-ray Cargo Scanner with 150x150cm tunnel size-image
VP-XR15020D-BSS16
- Radiation safe dual X-ray generator technology with high penetration
- Suitable for scanning large baggage at borders/immigration security check points and cargo terminals
- Dual view display with high resolution imaging for efficient security
- Clear and distinct imaging with improved zooming ratio up to 64 times
- Dual energy penetration system supports high/low density and organic/inorganic discerning
- Auto-inspection of drugs and explosives with threat alert system
- Supports real-time storage and retrieval of scanned images
- Energy saving & environmental protective design
- Tunnel size 1500(W) × 1500(H)mm with conveyor speed 0.25–0.3m/s, conveyor height 316mm and maximum load capacity 2000kg
- Dual X-ray generators for dual-view screening with 200KV tube voltage, vertical and horizontal beam direction, wire resolution AWG36 (top view) and AWG38 (side view)
- Steel penetration 40mm top view and 45mm side view, penetration resolution AWG32 for both views and spatial resolution 1.3mm vertical and 1.3mm horizontal for both views
- 100% duty cycle with sealed oil cooling and noise level ≤60dB with film safety guaranteed at ASA/ISO 1600
- Dual 27" monitors at full HD 1920×1080 resolution with variable zoom up to 64x and 30 images recallable
- Storage capacity 10,000 images supporting JPG, BMP, XF, PNG, TIFF and GIF formats with USB backup
- Windows 10 operating system with Intel i3 3.3GHz CPU, 1TB hard drive and 2GB storage
- Three-phase electric motor with optional integrated roller tables on both sides and atmospheric pressure range 86kPa–106kPa
- Working voltage AC 220V (+10% to -15%) 50±3Hz with maximum power consumption 2.5KW and working temperature 5°C to 40°C, humidity 0% to 90% non-condensing
- Overall dimensions 5963(L) × 2281(W) × 2450(H)mm, net weight 4000kg
- Certified CE, FCC and RoHS
