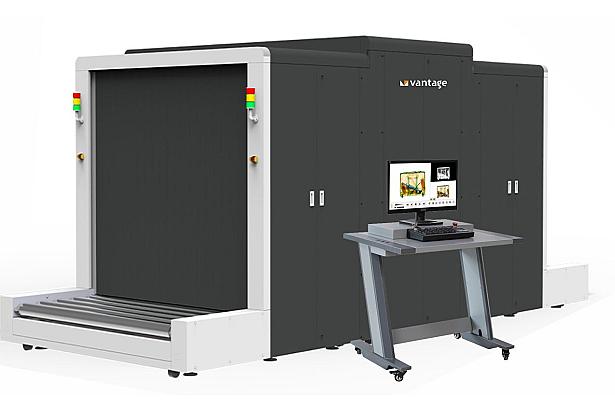

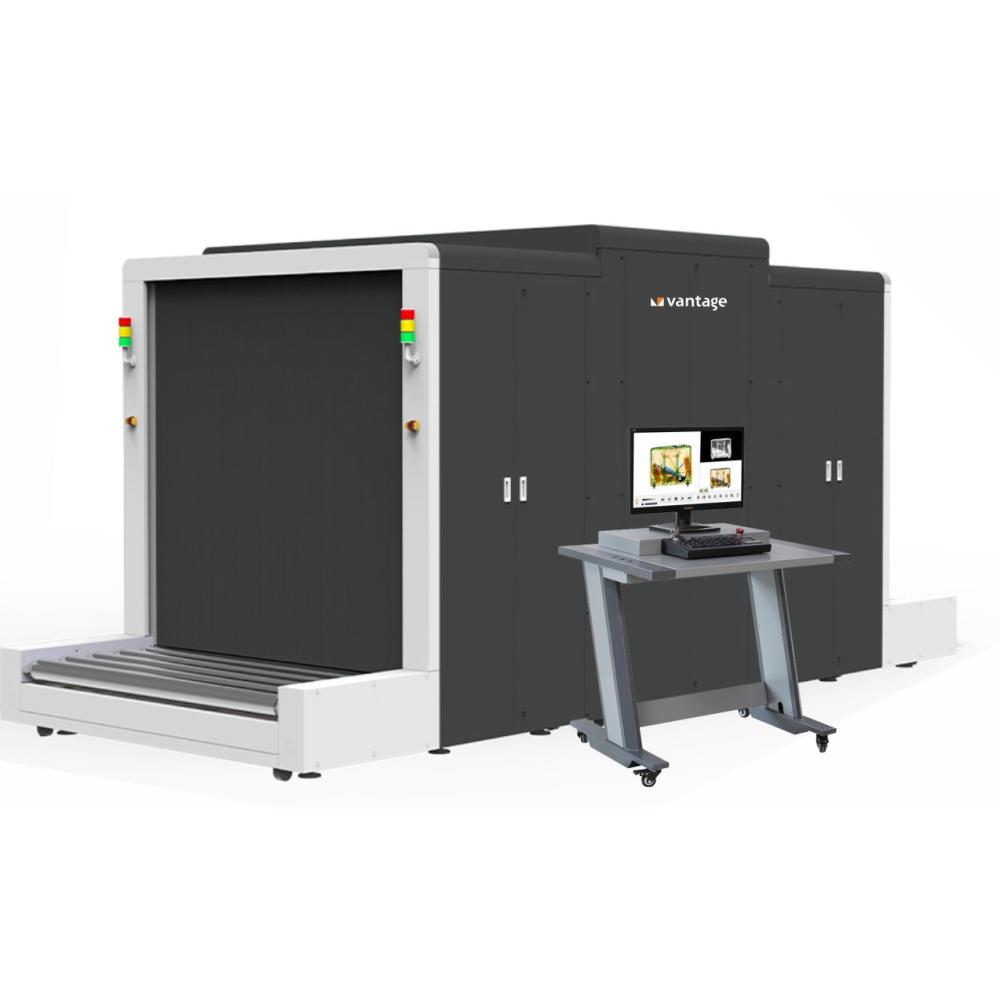

X-Ray Cargo Scanner, 7 Color Imaging , 180x180cm Tunnel Size
VP-XR1800S-BSJ8
- Advance X-ray generator technology for efficient screening & security
- Single display monitor with 7 Colors image displaying technology for advance material classification
- Dual energy penetration system supports organic/inorganic discerning
- Versatile software with more than 30 image processing functions including auto-inspection of drugs and explosives
- Supports real-time storage and retrieval of scanned images
- Enhanced imaging software with density alerts and threat material prompts to assist operator
- System initiates auto-diagnostic and calibration automatically at power on
- Suitable for scanning mid-sized baggage at airports, bus/train/metro stations, borders/immigration security check points
X-ray Source & Performance
- Single 200 kV X-ray generator, sideward beam direction
- Steel penetration: typical 50 mm
- Film safety: ISO 1600 (33 DIN)
- 100% duty cycle, no warm-up; sealed oil bath with forced-air cooling
- X-ray leakage ≤0.1 mR/hr (1.0 µSv/hr); leakage current 1.0 mA
Image Resolution & Detection
- Wire resolution: 38 AWG
- Spatial resolution: 1.0 mm horizontal, 1.0 mm vertical
- S/N ratio: <68 dB
- L-shaped photodiode array detector (dual energy), 24-bit depth
Imaging Features & Software
- 7-colour imaging, 24-bit/pixel colour display, edge enhancement
- Image recall: 30 images
- Windows OS; 1 TB HDD; storage up to 2,000,000 images
- Single 24" LCD display, Full HD resolution: 1920 x 1080
- Keyboard included
- AI object identification (optional)
Tunnel Size & Conveyor Performance
- Tunnel size: 1810 (W) x 1814 (H) mm
- Conveyor speed: 0.23 m/s
- Conveyor height: 380 mm
- Maximum conveyor load: 2000 kg
- Roller integrated with tunnel at entry & exit
Electrical & Environmental
- Supply: AC220V (±10%), 50/60 Hz, 10 A max
- Maximum power consumption: 5.2 kW
- Automatic voltage regulator supported
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 60°C
- Humidity: up to 95% non-condensing
Dimensions & Weight
- Overall dimensions: 5254 (L) x 2930 (W) x 2445 (H) mm
- Net weight: 4300 kg
Compliance & Certifications
- Certifications: CE, RoHS, FDA
