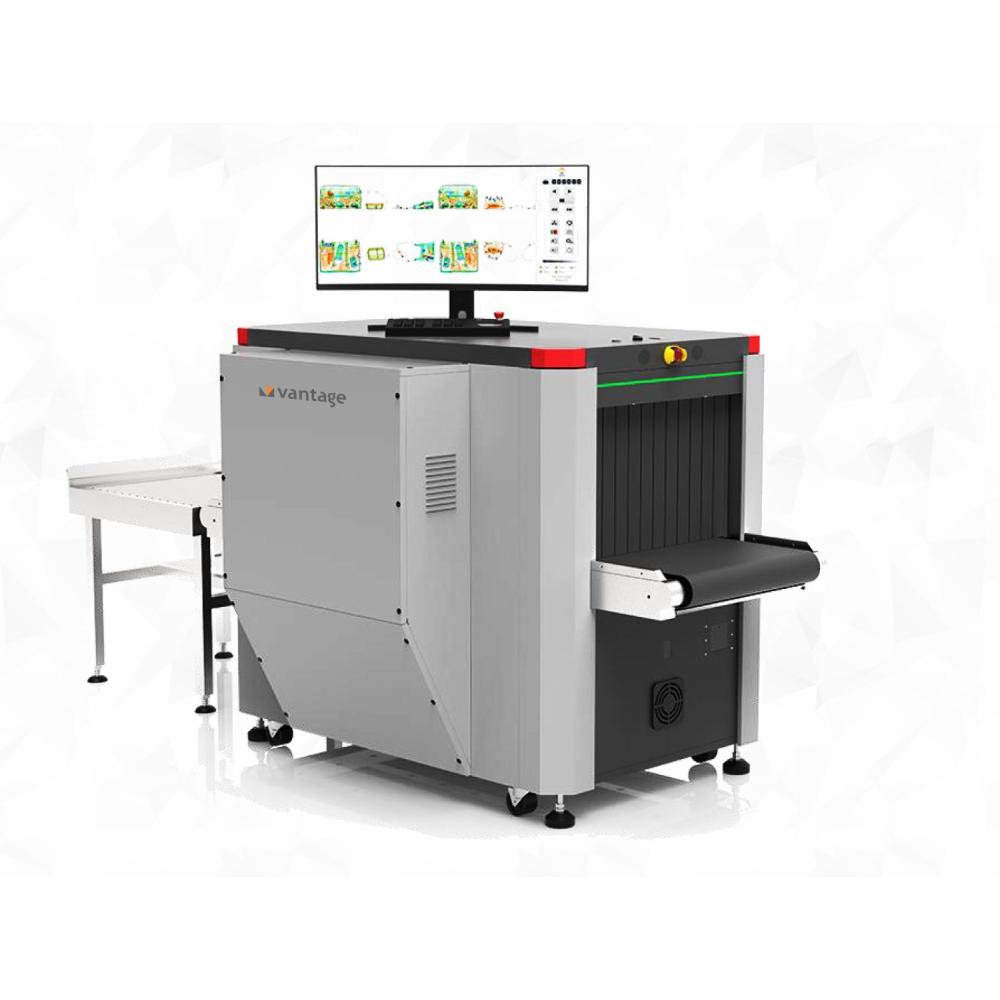

X-Ray Baggage Scanner,7 Color Imaging, Dual Generators and Dual View, 60x40cm Tunnel Size

X-Ray Baggage Scanner,7 Color Imaging, Dual Generators and Dual View, 60x40cm Tunnel Size
VP-XR6040D-BSJ8
  • X-Ray generator with Dual X-ray generator technology with high penitration
  • Dual energy penetration with 7 Colors imaging system supports organic/inorganic discerning & advance material classification
  • Versatile software with more than 30 image processing functions including auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/metro stations, borders/immigration security check points

X-ray Source & Performance

  • Dual 160 kV X-ray generators (160 kV x 2), upward and sideward beam directions (dual view)
  • Steel penetration: 37 mm steel typical
  • Film safety: guaranteed ASA/ISO 1600 film
  • 100% duty cycle, no warm-up procedure required; sealed oil cooling with forced air
  • X-ray leakage ≤0.1 mR/hr (1.0 µSv/hr); leakage current ≤0.7 mA

Image Resolution & Detection

  • Wire resolution: 40 AWG
  • Spatial resolution: 1.0 mm vertical, 1.0 mm horizontal (top view)
  • S/N ratio: <45 dB
  • L-shaped array detector (dual energy), 24-bit colour display

Imaging Features & Software

  • 7-colour imaging with dual-energy material classification (switchable 4 and 7 colour 3D modes), edge enhancement
  • Zeff-scan auto-highlighting of explosives and narcotics (Zeff 7, 8, 9) in real time
  • Throughput: up to 200 bags/hour
  • Image recall: 30 images; storage up to 200,000 images
  • Windows OS; 1 TB SSD (standard)
  • 34" curved display, resolution 3440 x 1440
  • Keyboard included; operation console available/optional
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 624 (W) x 429 (H) mm
  • Conveyor speed: 0.23 m/s
  • Conveyor height: 750 mm
  • Maximum conveyor load: 165 kg
  • Roller table integrated with tunnel

Electrical & Environmental

  • Supply: AC220V (±10%), 50/60 Hz, 10 A max
  • Maximum power consumption: 500 W
  • Working temperature: 0°C to 40°C
  • Storage temperature: -20°C to 60°C
  • Humidity: up to 95% non-condensing

Dimensions & Weight

  • Overall dimensions: 1423 (L) x 1193 (W) x 1300 (H) mm
  • Net weight: 485 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS, FDA
