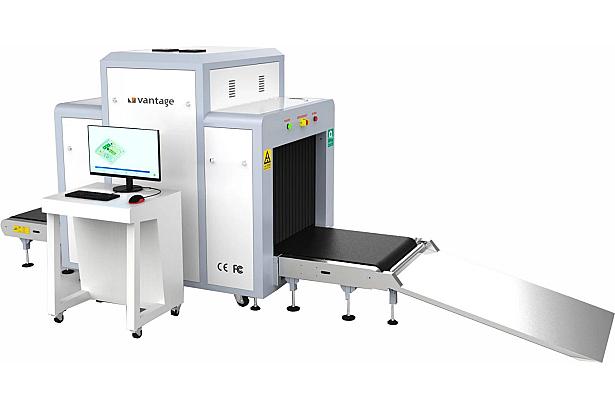

X-ray Baggage Scanner with 80x65cm tunnel size

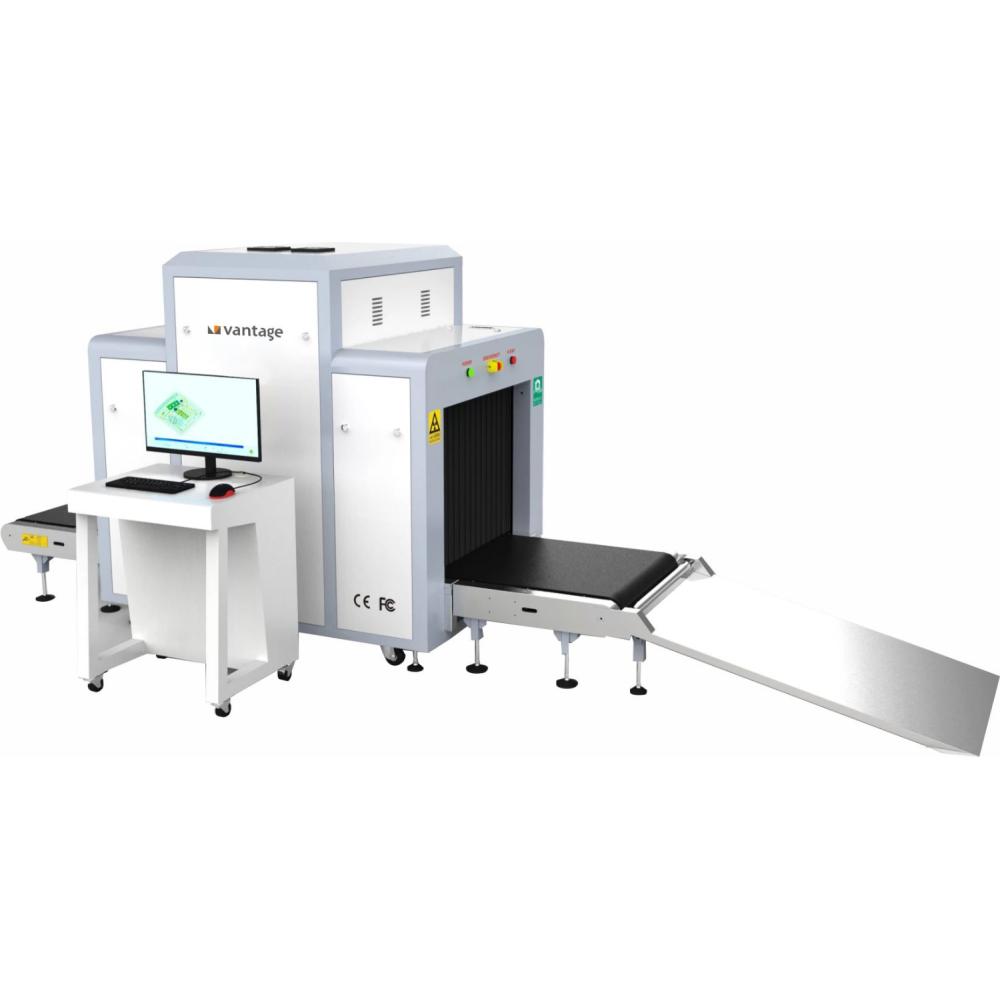

X-ray Baggage Scanner with 80x65cm tunnel size
VP-XR8650-BSS16
  • X-ray generator with 4 color displaying technology for efficient security
  • Dual energy penetration system supports high/low density and organic/inorganic discerning
  • Auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/ metro stations, borders/immigration security check points
  • Energy saving & environmental protective design

X-ray Source & Performance

  • Single 160 kV X-ray generator, downward beam direction
  • Penetration: 34 mm steel; penetration resolution: AWG 32
  • X-ray dose per inspection: ≤3.5 µGy
  • Film safety: guaranteed ASA/ISO 1600 film
  • 100% duty cycle; sealed oil cooling
  • X-ray leakage: <1 µGy/h at any point 5 cm outside the external surface
  • Noise level: ≤60 dB

Image Resolution & Detection

  • Wire resolution: AWG 38
  • Spatial resolution: horizontal dia 2.0 mm, vertical dia 2.0 mm
  • L-shaped photodiode array detector, 12-bit depth

Imaging Features & Software

  • 4-colour displaying technology with dual-energy high/low density and organic/inorganic discerning, 24-bit colour display
  • Image processing: 1 to 32x continuous enlargement, colour/BW, negative, high/low penetration, enhancement, brightening, darkening, gray level scan, super enhancement, organics/inorganics elimination, local enhancement, pseudo colour processing, edge enhancement
  • Suspicious organics highlighting (atomic number Zeff 7, 8, 9) for explosives and narcotics detection
  • Suspicious object alarm: alarms and box-lines hard-to-penetrate materials, explosives, and drugs
  • Image retrieval: 30 images; storage up to 10,000 images
  • Embedded Linux operating system on multi-core ARM; 8 GB RAM
  • Single 21" LCD monitor with console desk, high resolution 1920 x 1080; keyboard included
  • Threat Image Projection (TIP): inserts realistic threat images during screening for vigilance, training, and assessment
  • System functions: time/date display, counters, user management, X-ray on timers, power-on self test, built-in diagnostics, bi-directional scanning, forced scanning, image search and export, system log, standby and simulant training
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 807.5 (W) x 653 (H) mm
  • Conveyor speed: 0.22 m/s
  • Conveyor height: 341 mm
  • Load capacity: 200 kg
  • Three-phase electric roller

Electrical & Environmental

  • Supply: 220VAC (±10%), 50±3 Hz
  • Maximum power consumption: 1 kW
  • Working temperature: 5°C to 40°C at 0% to 90% humidity (non-condensing)
  • Storage temperature: -20°C to 60°C at 10% to 90% humidity (non-condensing)

Dimensions & Weight

  • Overall dimensions: 2848 (L) x 1095 (W) x 1536 (H) mm
  • Net weight: 630 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS, ISO, FDA
