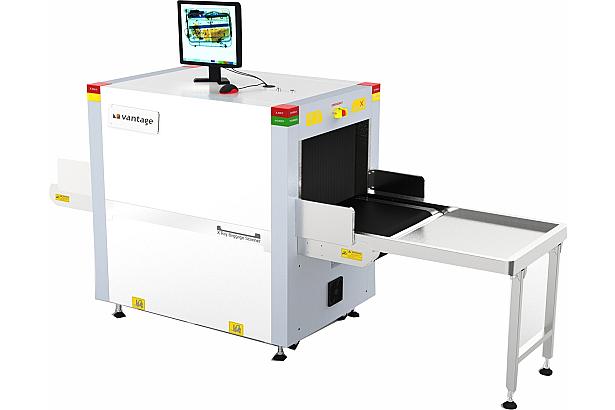

X-Ray Baggage Scanner with 60x40cm Tunnel Size and Windows OS

X-Ray Baggage Scanner with 60x40cm Tunnel Size and Windows OS
VP-XR6040W-BSS16
  • Single x-ray generator technology with single view for efficient screening & security
  • Dual energy penetration system supports high/low density and organic/inorganic discerning
  • Auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/metro stations, borders/immigration security checkpoints
  • Energy-saving & environment-protective design

X-ray Source & Performance

  • Single X-ray generator, 140 kV standard with 160 kV optional, upward beam direction
  • Steel penetration: 34 mm guaranteed; 38 mm at 160 kV
  • X-ray dosage per inspection: ≤4 µSv
  • Film safety: guaranteed ASA/ISO 1600 film
  • 100% duty cycle; sealed oil cooling
  • X-ray leakage: ≤1 µSv/h at any point 5 cm outside the external surface (FDA standard is ≤5 µSv/h)

Image Resolution & Detection

  • Wire resolution: AWG 40
  • Spatial resolution: 1.0 mm horizontal, 1.0 mm vertical
  • S/N ratio: <60 dB
  • L-shaped photodiode array detector (dual energy penetration system)

Imaging Features & Software

  • Colour/black and white imaging with local enhancement, high/low penetration, super enhancement, organic and inorganic stripping, reverse colour, brightening/darkening, variable contrast, pseudo colour imaging, organics enhancement, suspicious item alarm and notation, edge enhancement
  • Variable zoom up to 64x with continuous magnification
  • Image recall: 30 images; storage up to 50,000 images stored automatically, converting to JPG, BMP and other formats
  • Windows 10 operating system; Intel i3 3.3 GHz CPU; 4 GB RAM; 1 TB hard disk
  • Single 21.5" LCD screen, resolution 1920 x 1080; specially designed keyboard; no console desk
  • System functions: high density alarm, TIP, OTP, date/time display, baggage count, user management, system work timing, radiation timing, power-on self-inspection, image save and search, automatic maintenance and diagnosis, image recognition training
  • Optional features: intelligent roller, remote workstation, network integration, video monitoring, face recognition and baggage integration, recheck station, additional roller table, UPS backup
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 613 (W) x 409.5 (H) mm
  • Conveyor speed: 0.22 m/s, forward or backward
  • Conveyor height: 663.5 mm
  • Maximum conveyor load: 150 kg
  • Three-phase electric roller

Electrical & Environmental

  • Supply: AC220V (+10%/-15%), 50±3 Hz
  • Maximum power consumption: 0.8 kW
  • Working temperature: 5°C to 40°C at 0% to 90% humidity (non-condensing)
  • Storage temperature: -20°C to 60°C at 10% to 90% humidity (non-condensing)

Dimensions & Weight

  • Overall dimensions: 2007 (L) x 844 (W) x 1234 (H) mm
  • Net weight: 455 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS, ISO, FDA
