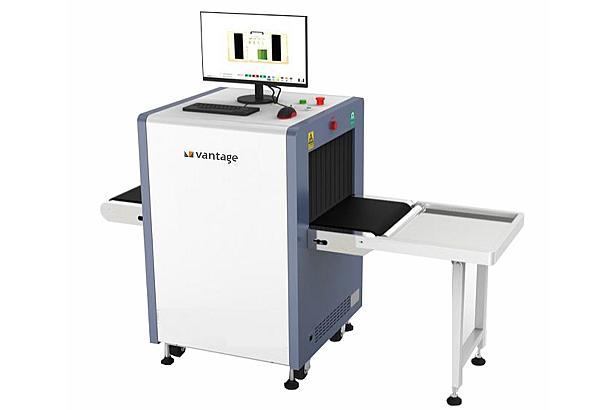

X-Ray Baggage Scanner with 50x30cm Tunnel Size

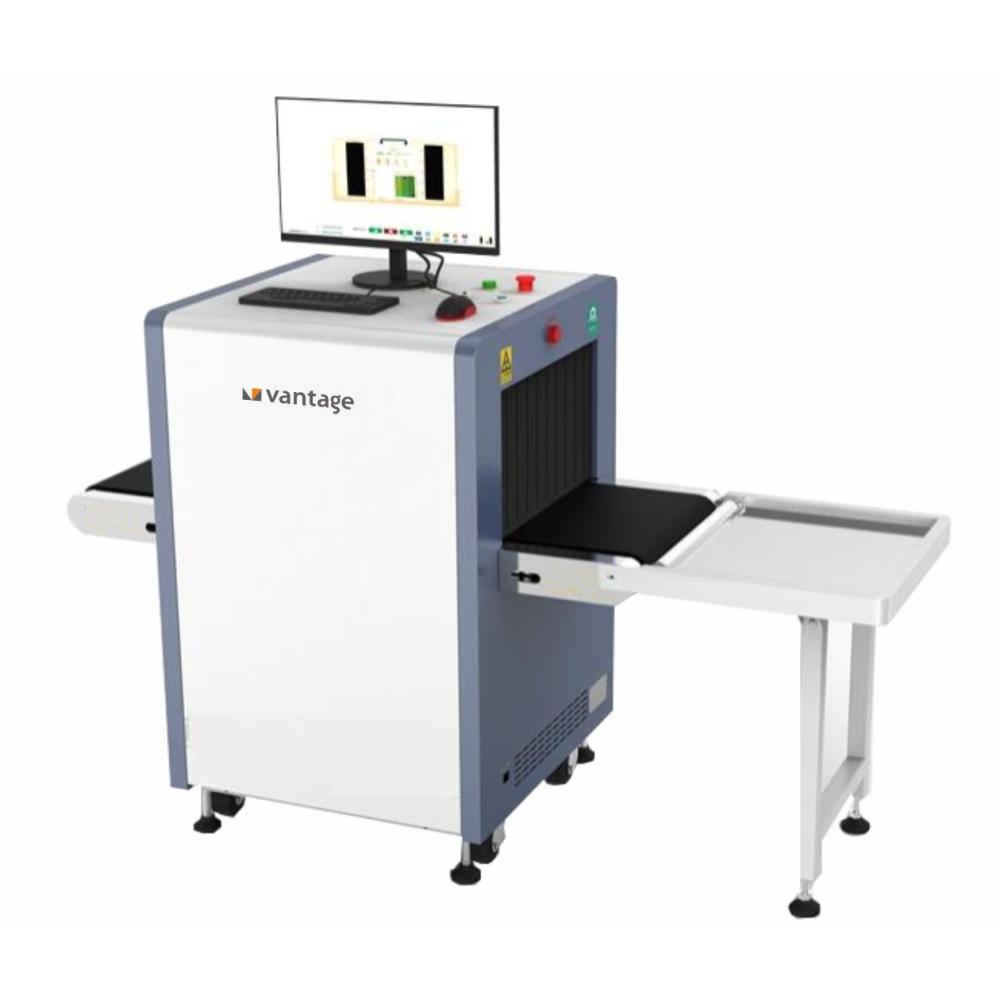

X-Ray Baggage Scanner with 50x30cm Tunnel Size
VP-XR3500-BSS16
  • Single X-ray generator & single displaying technology for efficient security
  • Single energy penetration system supports high/low density and organic/inorganic discerning
  • Auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/ train/metro stations, borders/immigration security check points
  • Energy saving & environment protective design

X-ray Source & Performance

  • Single 80 kV X-ray generator, upward beam direction
  • Steel penetration: 8 mm; penetration resolution: AWG 32
  • X-ray dosage per inspection: ≤3.5 µSv (µGy)
  • Film safety: guaranteed ASA/ISO 1600 film
  • 100% duty cycle; sealed oil cooling
  • X-ray leakage: ≤1 µGy/h at any point 5 cm outside the external surface

Image Resolution & Detection

  • Wire resolution: AWG 40
  • Spatial resolution: 1.0 mm vertical, 1.0 mm horizontal
  • S/N ratio: <60 dB
  • L-shaped photodiode array detector (single energy), 12-bit depth

Imaging Features & Software

  • 24-bit real-time processing with 4-colour analysis; images marked with date and ID number, bag counting
  • Suspicious organics highlighting (atomic number Zeff 7, 8, 9) for explosives and narcotics detection
  • Suspicious alarm: highlights hard-to-penetrate materials, explosives, and narcotics with alarm triggering
  • Image recall: 30 images; storage up to 10,000 images stored automatically
  • Embedded Linux operating system on multi-core ARM; 8 GB RAM
  • Single 21.5" LCD screen, high resolution 1920 x 1080; keyboard included; no console desk
  • Threat Image Projection (TIP): inserts simulated threat images during screening for operator training and vigilance assessment
  • System functions: time/date display, counters, user management, X-ray on timers, power-on self test, built-in diagnostics, system log, standby and simulant training
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 501 (W) x 301 (H) mm
  • Conveyor speed: 0.22 m/s
  • Conveyor height: 680 mm
  • Maximum conveyor load: 100 kg
  • Single-phase electric roller

Electrical & Environmental

  • Supply: AC220V (+10%/-15%), 50±3 Hz
  • Maximum power consumption: 500 W
  • Working temperature: 5°C to 40°C at 0% to 90% humidity (non-condensing)
  • Storage temperature: -20°C to 60°C at 10% to 90% humidity (non-condensing)

Dimensions & Weight

  • Overall dimensions: 1919 (L) x 730 (W) x 1100 (H) mm
  • Net weight: 150 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS, ISO, FDA
