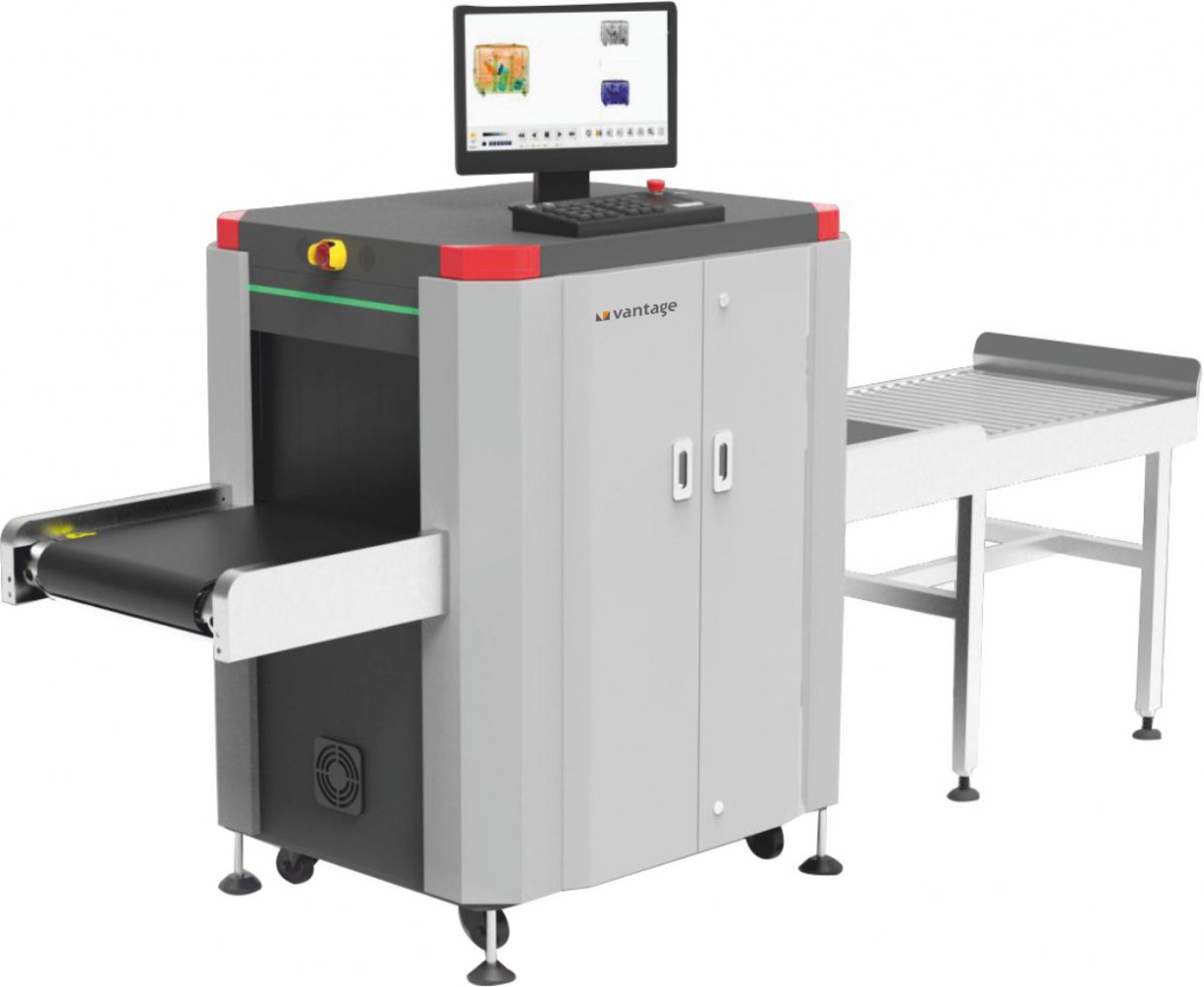

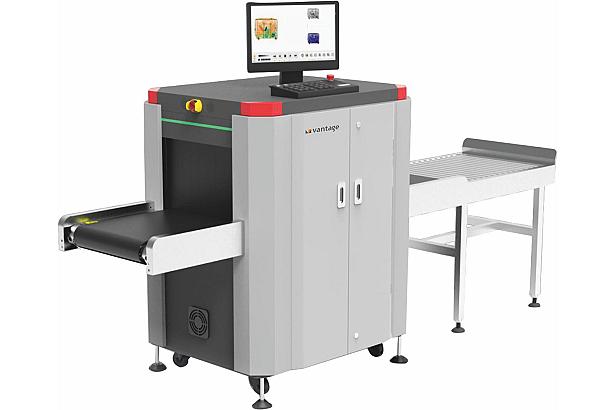

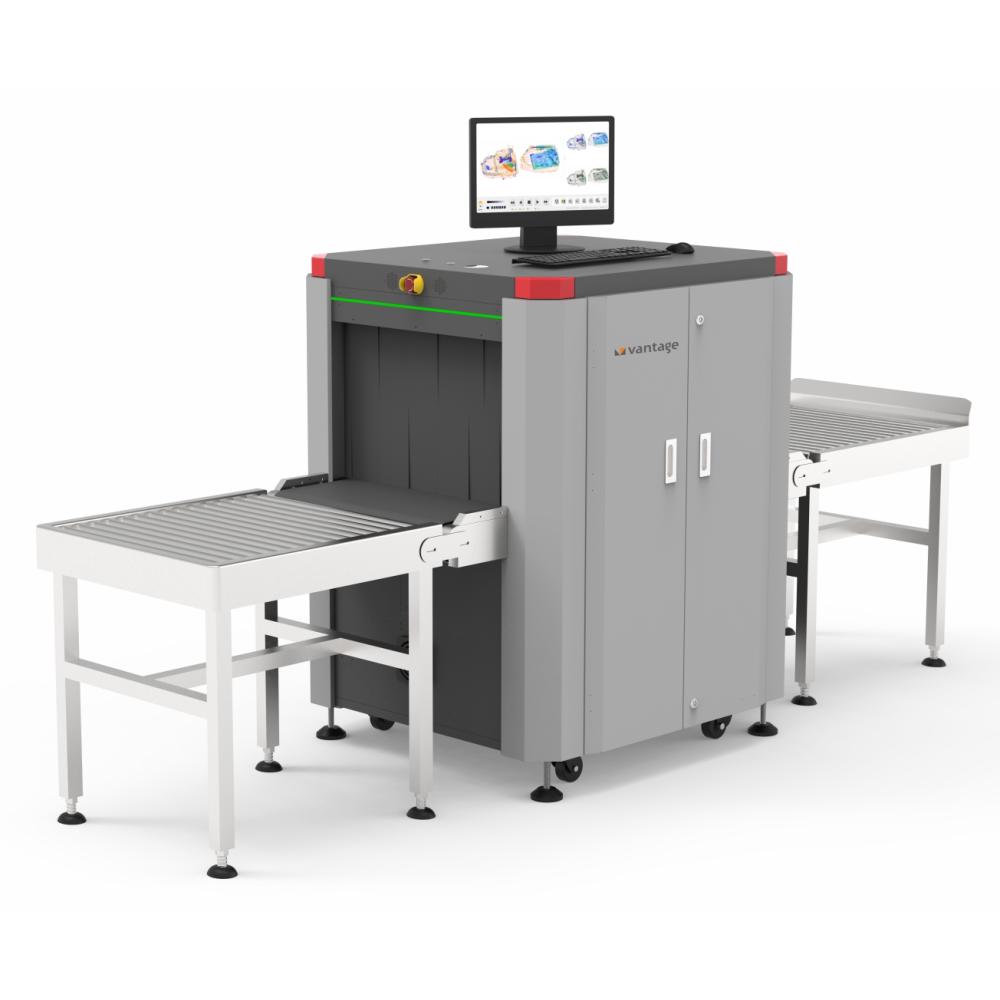

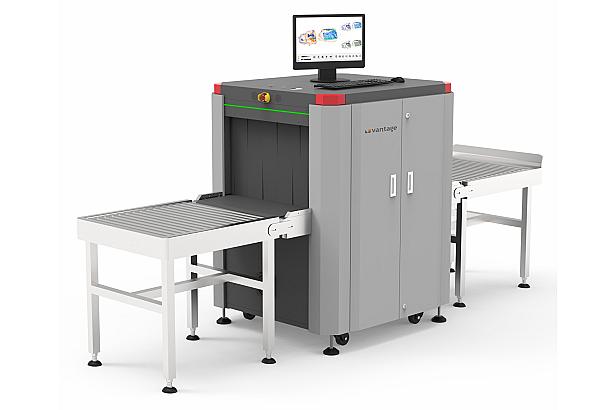

3D view X-Ray Baggage Scanner, 7 Color Imaging, 60x40cm Tunnel Size

3D view X-Ray Baggage Scanner, 7 Color Imaging, 60x40cm Tunnel Size
VP-XR60403D-BSJ8
  • X-Ray generator with 3-D perspective technology for efficient security
  • Dual energy penetration with 7 Colors imaging system supports organic/inorganic discerning & advance material classification
  • Versatile software with more than 30 image processing functions including auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/metro stations, borders/immigration security check points
  • Tunnel size 624(W) × 429(H)mm with conveyor speed 0.23m/s, conveyor height 750mm, and maximum conveyor load 165kg
  • Single 160KV X-ray generator with diagonally upward beam direction, wire resolution AWG40 top view and AWG40 side view, tube current below 0.7mA, and spatial resolution 1.0mm vertical and 1.0mm horizontal
  • L-shaped photodiode array detector with dual energy and 24-bit depth, steel penetration 36mm top view and 36mm side view, and S/N ratio below 45dB
  • 100% duty cycle with no warm-up procedure required, sealed oil cooling, and film safety guaranteed at ASA/ISO 1600
  • Single 21.5" LCD display at 1920×1080 resolution with optional operation console, keyboard included, and 30 images recallable
  • Storage capacity up to 200,000 images automatically with 1TB SSD standard and Windows OS operating system
  • Roller table integrated with tunnel with working voltage AC220V (±10%) 50/60Hz, 10A max, and maximum power consumption 500W
  • Working temperature 0°C to 40°C, storage temperature -20°C to 60°C, and humidity up to 95% non-condensing
  • Overall dimensions 1500(L) × 947(W) × 1340(H)mm and net weight 485kg
  • Certified CE, FCC, RoHS, and FDA
