Entrance Management Solutions

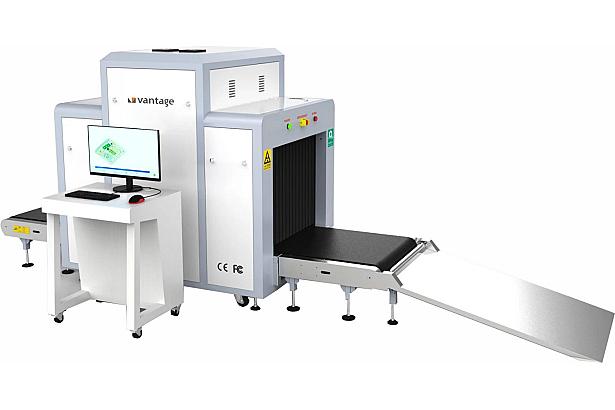

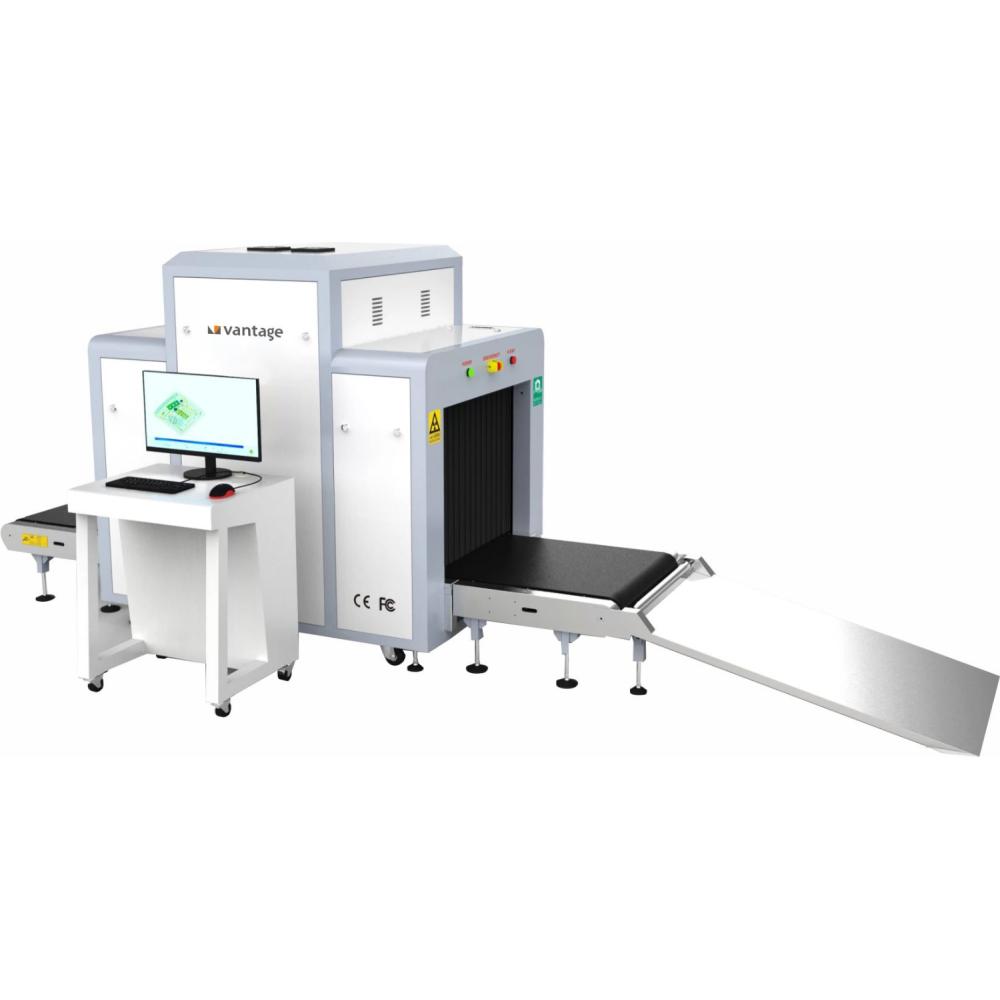

X-ray Baggage Scanner with 100x80cm tunnel size
VP-XR1080S-BSS16
- X-ray generator with 4 color displaying technology for efficient security
- Dual energy penetration system supports high/low density and organic/inorganic discerning
- Auto-inspection of drugs and explosives
- Supports real-time storage and retrieval of scanned images
- System initiates auto-diagnostic and calibration automatically at power on
- Suitable for scanning mid-sized baggage at airports, bus/train/ metro stations, borders/immigration security check points
- Energy saving & environmental protective design
- Tunnel size 1000(W) × 800(H) mm with conveyor speed 0.22 m/s forward and backward, conveyor height 341mm, and maximum load capacity 200kg
- Single 160KV anode voltage X-ray generator with downward beam direction, wire resolution AWG38, penetration resolution AWG32, and spatial resolution 1.3mm horizontal and 1.3mm vertical
- L-shaped photodiode array detector with 12-bit depth, steel penetration 34mm minimum, and noise level below 60dB
- 100% duty cycle, sealed oil cooling, and film safety guaranteed at ASA/ISO 1600
- 21.5" LCD monitor with console desk at 1920×1080 resolution, keyboard included, and 30 images retrievable
- Storage capacity up to 50,000 images with Windows 10 operating system and three-phase electric roller
- Working voltage 220VAC (±10%) 50±3Hz, power current max 5mA, and maximum power consumption 1 kW
- Working temperature 5°C to 40°C, storage temperature -20°C to 60°C, and humidity 0% to 90% non-condensing
- Overall dimensions 3130(L) × 1295(W) × 1716(H)mm, net weight 800kg, certified CE, FCC, and RoHS
