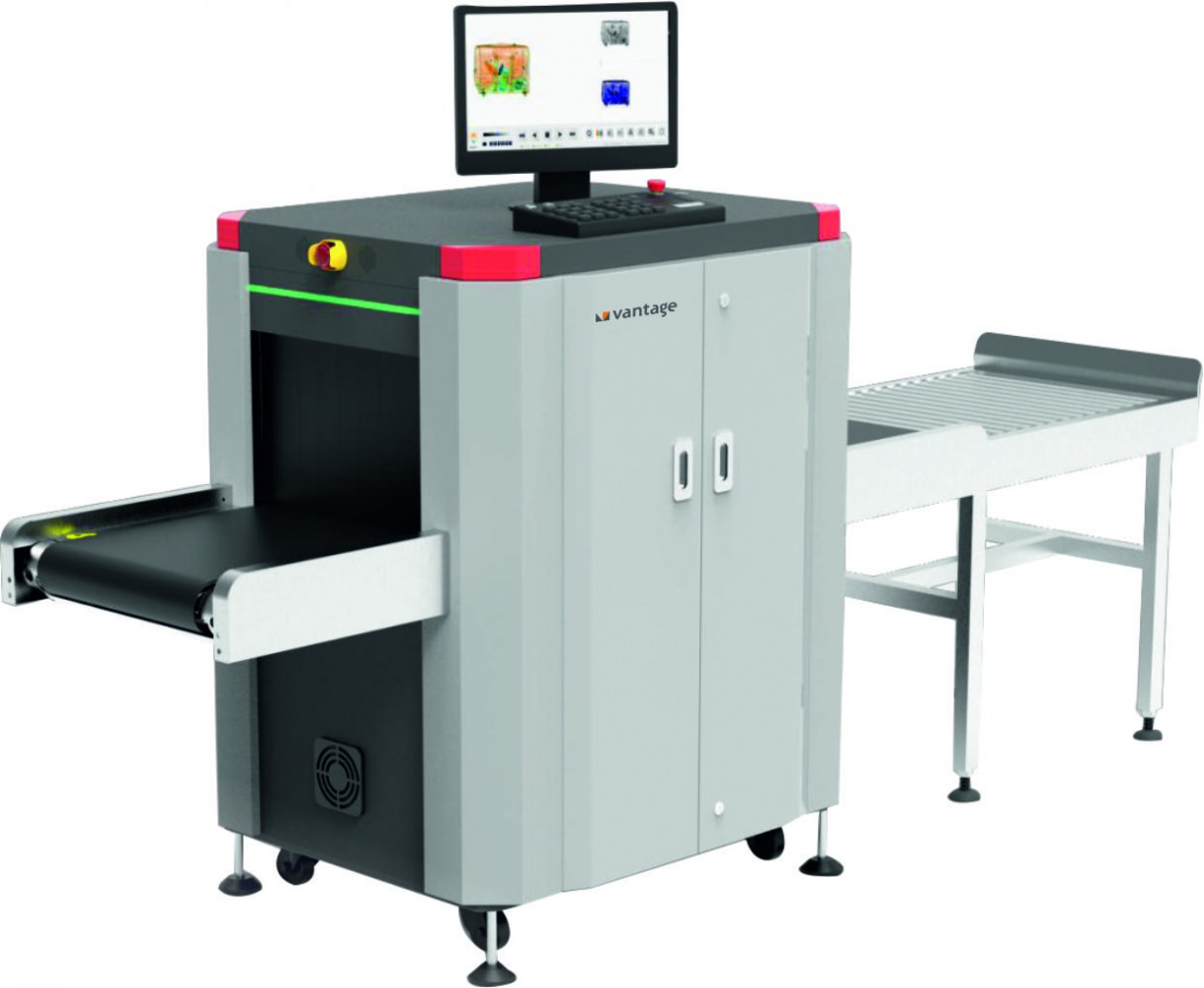

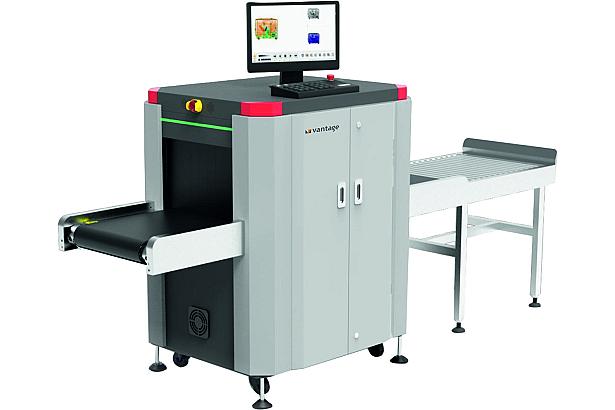

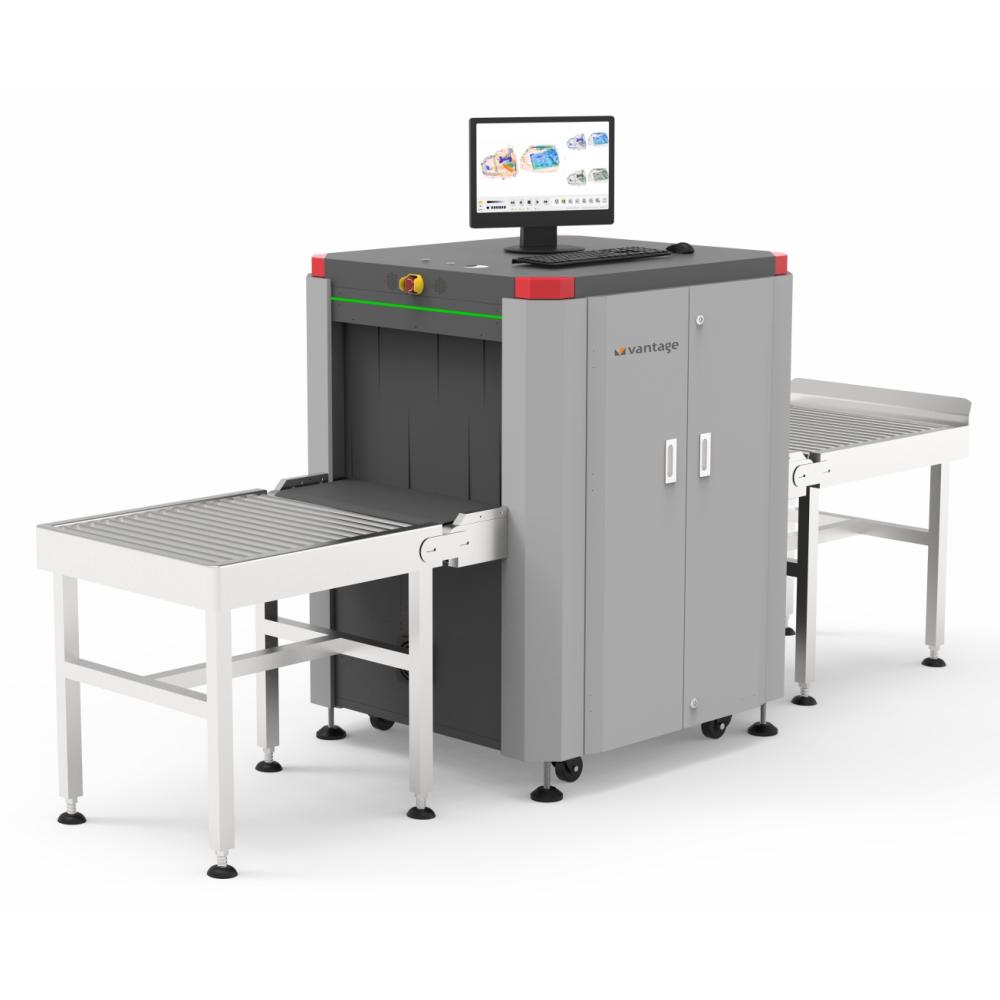

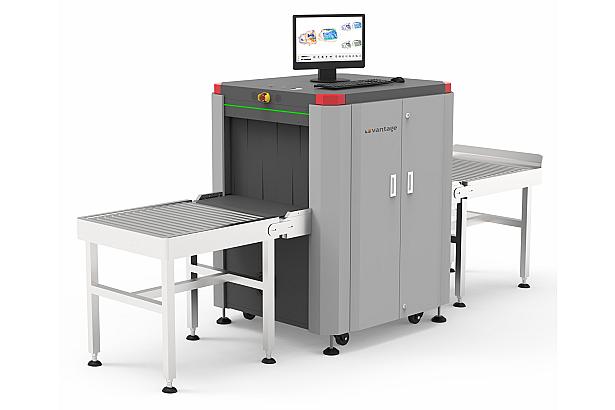

X-Ray Baggage Scanner, 7 Color Imaging, 65x50cm Tunnel Size

X-Ray Baggage Scanner, 7 Color Imaging, 65x50cm Tunnel Size
VP-XR6550S-BSJ8
  • X-ray generator with 7 Colors image displaying technology for advance material classification
  • Dual energy penetration system supports organic/inorganic discerning for efficient security
  • Versatile software with more than 30 image processing functions including auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/ metro stations, borders/immigration security check points

X-ray Source & Performance

  • Single 160 kV X-ray generator, diagonally upward beam direction
  • Steel penetration: 37 mm (top view); 37 mm (side view); useful penetration 39 mm
  • Film safety: guaranteed ISO 1600 (33 DIN)
  • 100% duty cycle, no warm-up procedure required; sealed oil cooling
  • X-ray leakage ≤0.1 mR/hr (1.0 µSv/hr); leakage current 1.0 mA

Image Resolution & Detection

  • Wire resolution: typical AWG 40 (top view); typical AWG 40 (side view)
  • Spatial resolution: 1.0 mm vertical, 1.0 mm horizontal (top view)
  • S/N ratio: <45 dB
  • L-shaped photodiode array detector (dual energy), 24-bit depth

Imaging Features & Software

  • 7-colour imaging with dual-energy material classification (switchable 4 and 7 colour modes), 24-bit colour display, edge enhancement
  • Image recall: 30 images
  • Windows OS (standard); 1 TB SSD (standard); storage up to 200,000 images stored automatically
  • Single 24" LCD colour display, resolution 1980 x 1080
  • Keyboard included; operation console available/optional
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 661 (W) x 509 (H) mm
  • Conveyor speed: 0.23 m/s
  • Conveyor height: 711 mm
  • Maximum conveyor load: 165 kg
  • Roller table integrated with tunnel

Electrical & Environmental

  • Supply: AC220V (±10%), 50/60 Hz, 10 A max
  • Maximum power consumption: 500 W
  • Working temperature: 0°C to 40°C
  • Storage temperature: -20°C to 60°C
  • Humidity: up to 95% non-condensing

Dimensions & Weight

  • Overall dimensions: 1675 (L) x 985 (W) x 1380 (H) mm
  • Net weight: 500 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS, FDA
