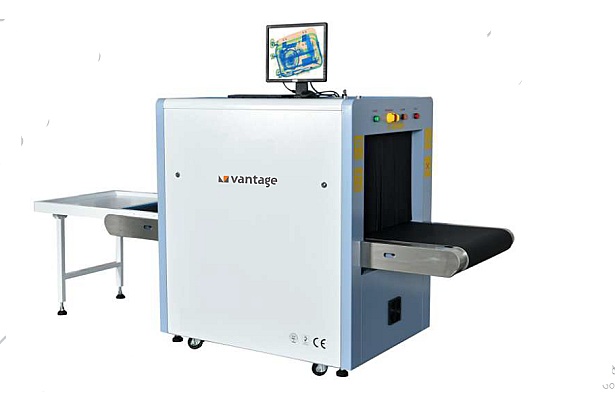

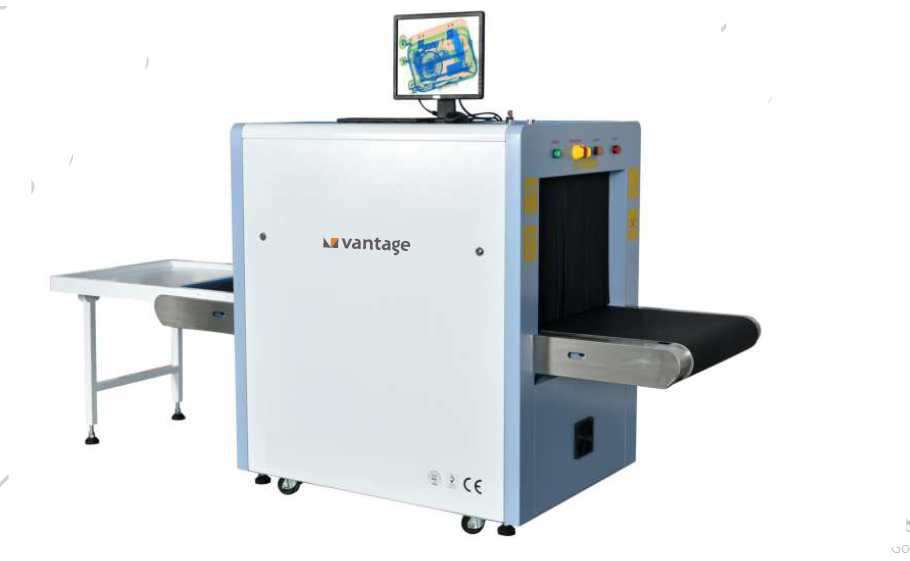

X-Ray Baggage Scanner with 60x40cm Tunnel Size

X-Ray Baggage Scanner with 60x40cm Tunnel Size
VP-XR6040-BSS16
  • X-ray generator with 4 color displaying technology for efficient security
  • Dual energy penetration system supports high/low density and organic/inorganic discerning
  • Auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/metro stations, borders/immigration security check points
  • Energy saving & environment protective design

X-ray Source & Performance

  • Single 140 kV X-ray generator, upward beam direction
  • Penetration: 30 mm steel; penetration resolution: AWG 32
  • X-ray dosage per inspection: ≤2.5 µSv (µGy)
  • Film safety: guaranteed ASA/ISO 1600 film
  • 100% duty cycle; sealed oil cooling
  • X-ray leakage: <1 µGy/h at any point 5 cm outside the external surface

Image Resolution & Detection

  • Wire resolution: AWG 40
  • Spatial resolution: horizontal dia 1.0 mm, vertical dia 1.0 mm
  • S/N ratio: <60 dB
  • L-shaped photodiode array detector, 12-bit depth

Imaging Features & Software

  • 4-colour displaying technology with dual-energy high/low density and organic/inorganic discerning
  • Image processing: 1 to 32x continuous enlargement, colour/BW, negative, high/low penetration enhancement, brightening, darkening, gray level scan, super enhancement, organics/inorganics elimination, local enhancement, pseudo colour processing, edge enhancement
  • Suspicious organics highlighting (atomic number Zeff 7, 8, 9) for explosives and narcotics detection
  • Suspicious object alarm: alarms and box-lines hard-to-penetrate materials, explosives, and drugs
  • Storage up to 10,000 images stored automatically
  • Embedded Linux operating system on multi-core ARM; 1 GB RAM
  • 21.5" LCD monitor, resolution 1920 x 1080; single screen console; keyboard included
  • Threat Image Projection (TIP): inserts realistic threat images during screening for vigilance, training, and assessment
  • System functions: time/date display, counters, user management, X-ray on timers, power-on self test, built-in diagnostics, system log, standby and simulant training
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 608 (W) x 400 (H) mm
  • Conveyor speed: 0.22 m/s
  • Conveyor height: 700 mm
  • Maximum conveyor load: 150 kg
  • Three-phase electric roller

Electrical & Environmental

  • Supply: AC220V (+10%/-15%), 50±3 Hz
  • Maximum power consumption: 800 W
  • Working temperature: 5°C to 40°C at 0% to 90% humidity (non-condensing)
  • Storage temperature: -20°C to 60°C at 10% to 90% humidity (non-condensing)

Dimensions & Weight

  • Overall dimensions: 2798 (L) x 852 (W) x 1272.5 (H) mm
  • Net weight: 400 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS, ISO, FDA
