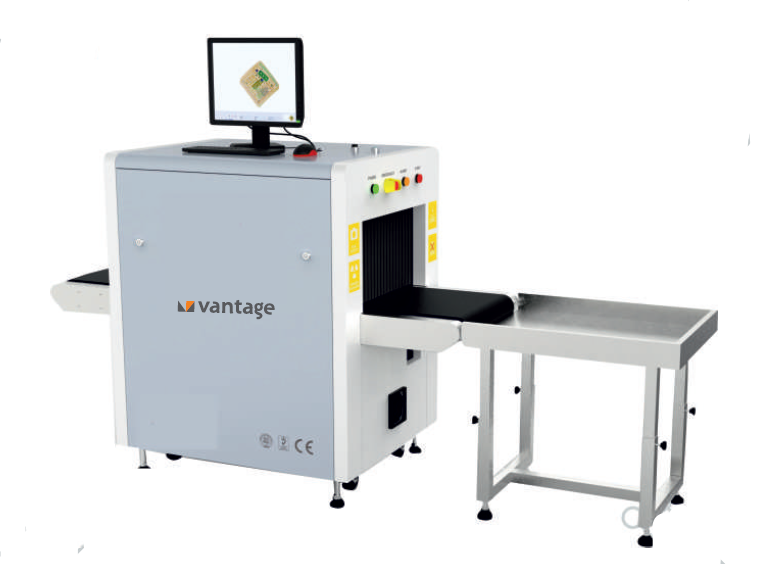

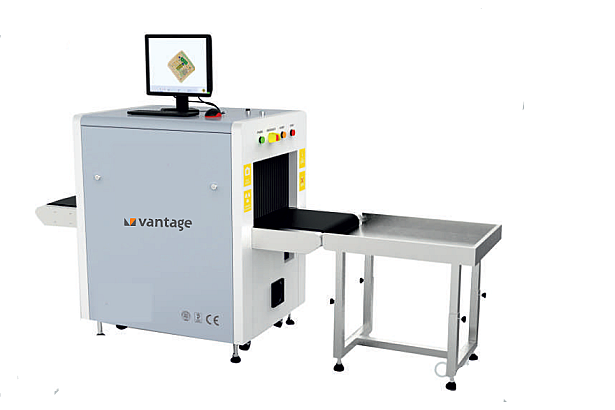

X-Ray Baggage Scanner with 50x30cm Tunnel Size
VP-XR3500-BSZ6
- Specially design for screening at office premises, shopping malls, airports, metro station etc
- High-resolution 19-inch LCD monitor display
- 24-bit true color image display
- Super image enhancement for sharp picture details
- Improved image contrast with high & low penetration levels
- Supports realtime image storage
- Energy saving & environmental protective design
- Tunnel size 500(W) × 300(H)mm with conveyor speed 0.22m/s adjustable and maximum load capacity 120kg
- Single 80KV tube voltage X-ray generator with bottom beam direction, tube current 0.4–1.2mA, angle of beam divergence 80°, and resolution 0.0787mm
- L-shaped photodiode array detector with single energy and 24-bit depth, steel penetration 10mm minimum, and noise level below 58dB(A)
- 100% duty cycle and sealed oil cooling with 19-inch high resolution LCD display (optional) and Windows based operating system (optional)
- Image scrolling supports pull back of recent 20 scanned images with image storage supporting real-time storage
- Working voltage 220VAC (±10%) 50±3Hz and maximum power consumption 1.0KW
- Working temperature 0°C to 45°C, storage temperature -20°C to 60°C, and humidity 20% to 95% non-condensing
- Overall dimensions 1750(L) × 730(W) × 1200(H)mm, net weight 280kg, gross weight 350kg, certified CE
