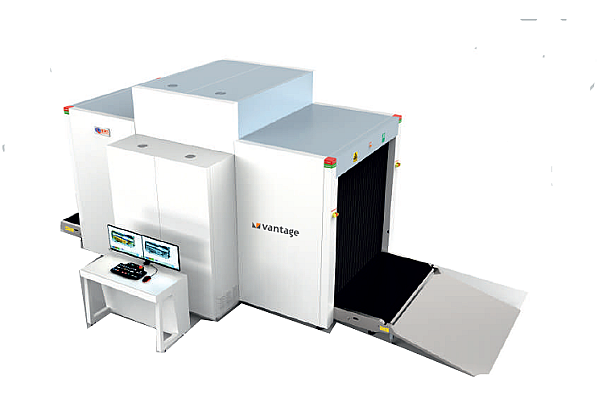

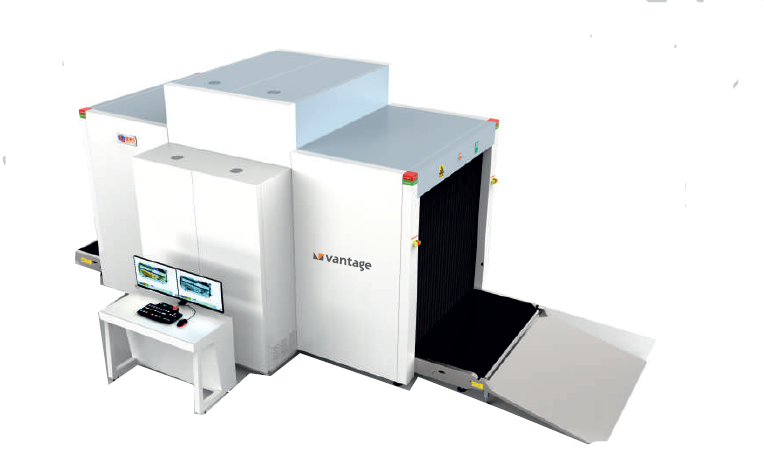

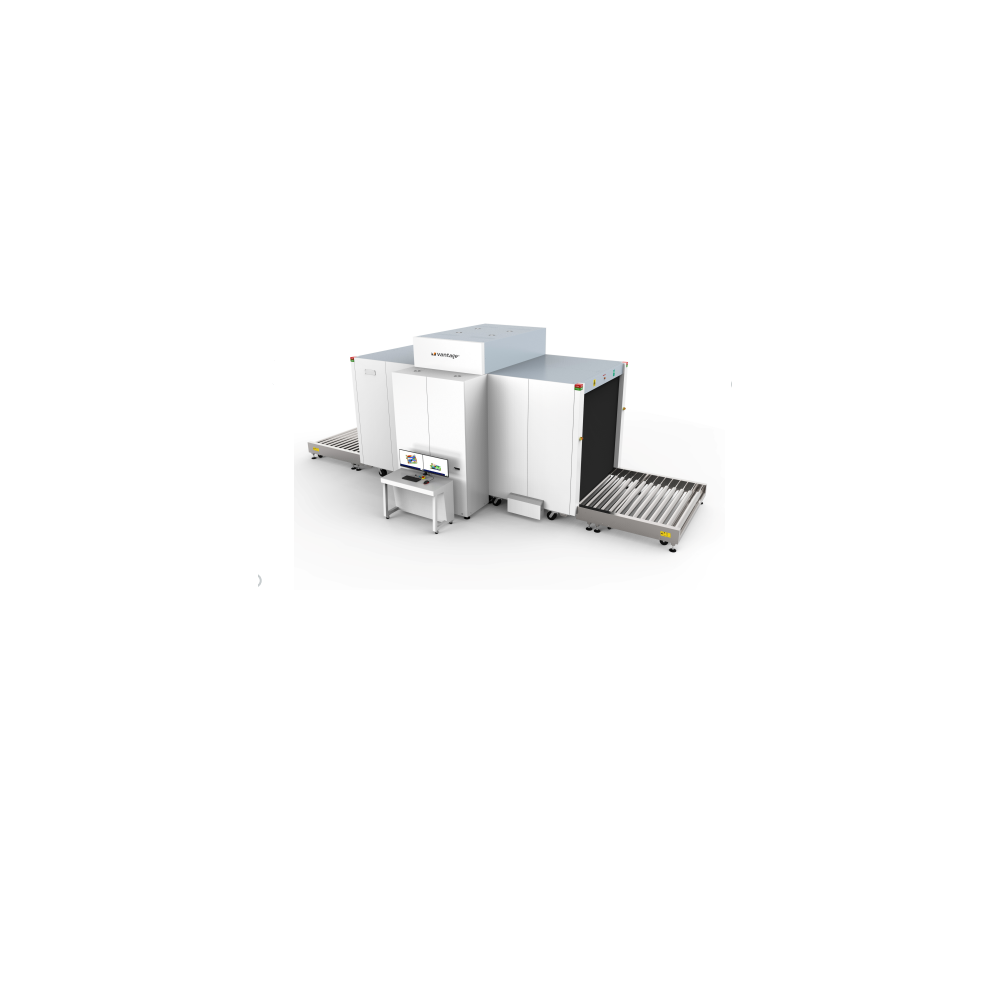

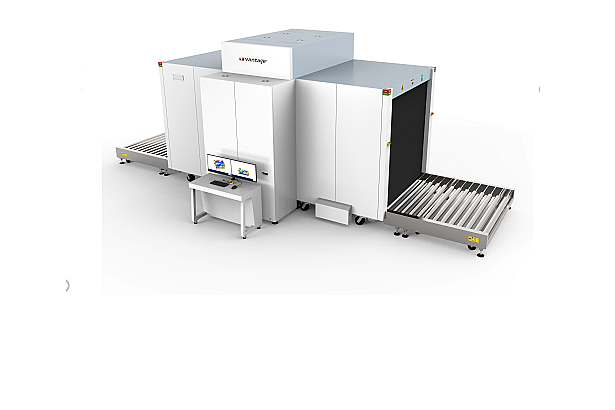

X-Ray Cargo Scanner with Dual 250KV Generators and 180x180cm Tunnel Size

X-Ray Cargo Scanner with Dual 250KV Generators and 180x180cm Tunnel Size
VP-XR1800-BSS16
  • Dual X-ray generator with dual view display technology for advanced and effective security
  • AI based advance screening software for improved clear and distinct imaging with real-time analysis & classification of scanned images
  • Supports auxiliary functions- threat image projection (TIP), operator's training programme (OTP) and auto-inspection of drugs and explosives
  • Dual energy penetration system supports high/low density and organic/inorganic discerning
  • Supports real-time storage and retrieval of scanned images
  • Suitable for scanning large baggage at borders/immigration security check points and cargo terminals
  • Energy saving & environmental protective design

X-ray Source & Performance

  • Dual X-ray generators (2), 250 kV tube voltage, side beam direction
  • Penetration: ≥50 mm steel
  • X-ray dose per inspection: ≤2 µSv
  • Film safety: in accordance with ASA/ISO 1600 film safe standard
  • 100% duty cycle; sealed oil cooling
  • Radiation leakage: <1 µSv/h (5 cm away from frame)
  • Noise level: ≤55 dB

Image Resolution & Detection

  • Wire resolution: 40 AWG (0.0787 mm copper wire)
  • Spatial resolution: vertical diameter 1.0 mm, horizontal diameter 1.0 mm

Imaging Features & Software

  • Colour/black and white imaging, negative image, high/low penetration, super enhancement, histogram equalization, check back/forward, automatic image save, pseudo colour, 90-degree rotation, organic/inorganic stripping
  • Variable zoom up to 64x with continuous magnification
  • Image checking: continuous check-back; storage capacity 100,000 images
  • Dual 24" displays, high resolution 1280 x 1024
  • System functions: F1/F2/F3 programmable keys, high density alarm, TIP, date/time display, baggage count, user management, system work timing, radiation timing, power-on self-inspection, image save and search, automatic maintenance and diagnosis, image recognition training
  • Optional functions: video surveillance system, LED prompt screen, voltage stabilizer, UPS backup
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 1810 (W) x 1810 (H) mm
  • Conveyor speed: 0.20 m/s, bi-directional scanning
  • Conveyor height: 358 mm
  • Load capacity: 2000 kg

Electrical & Environmental

  • Supply: 220VAC (±10%), 50/60 Hz
  • Power consumption: 3.0 kVA
  • Working temperature: 10°C to 45°C at 5% to 95% humidity (non-condensing)
  • Storage temperature: -40°C to 60°C at 5% to 95% humidity (non-condensing)

Dimensions & Weight

  • Overall dimensions: 7787 (L) x 3023 (W) x 2837 (H) mm
  • Net weight: 4500 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS and FDA
