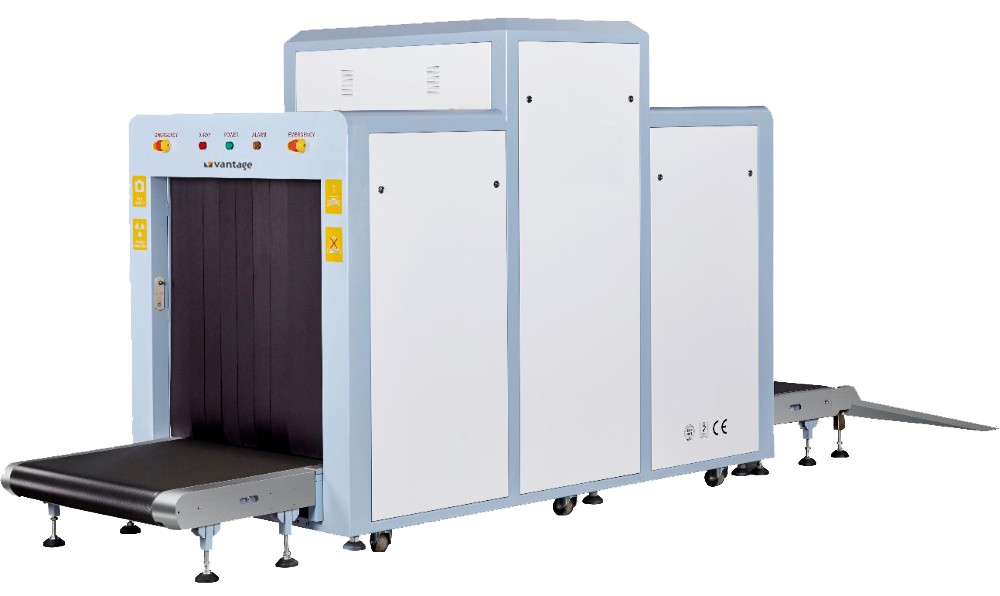

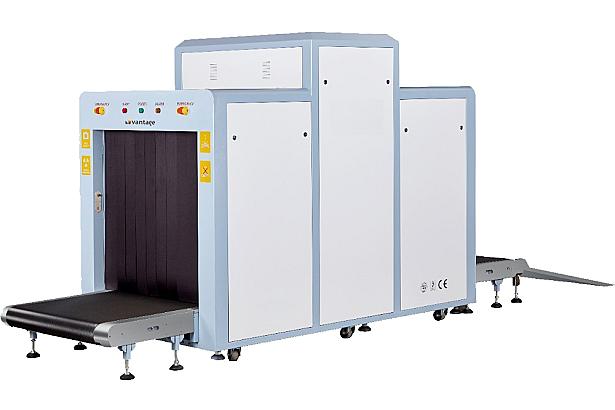

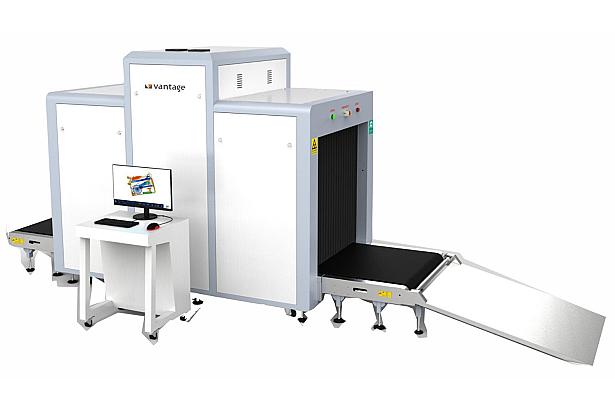

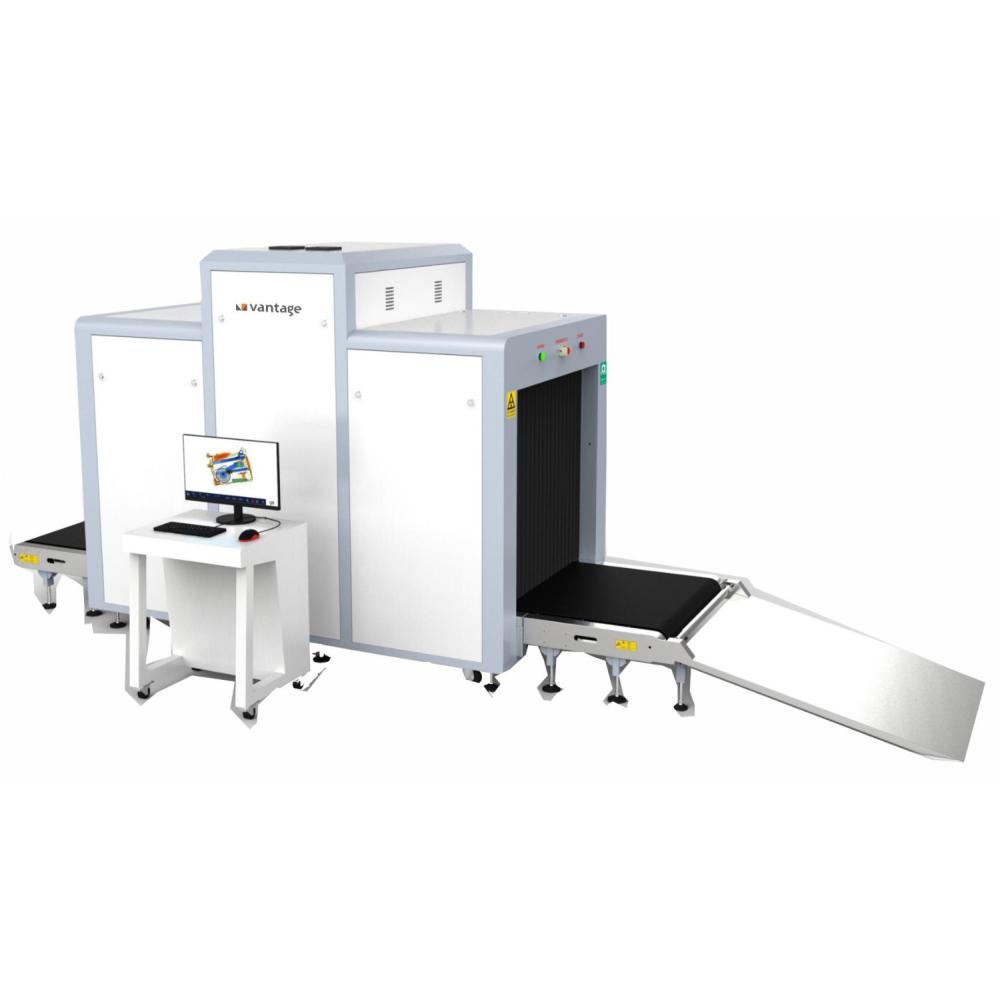

X-Ray Baggage Scanner with 100x100cm Tunnel Size

X-Ray Baggage Scanner with 100x100cm Tunnel Size
VP-XR1000-S16
  • Multi-function image processing- color, black & white, negative,high / low penetration, organic / inorganic stripping, general enhancement and pseudo color
  • Secure access key protection
  • Automatic image archiving with threat alert and material classification
  • Energy-saving design with one-key shutdown function
  • Drugs and explosives inspection capability with organic and inorganic material identification and automatic suspicious object marking
  • On-screen date/time display and baggage counter
  • Threat Image Projection (TIP) for operator training
  • Supports Dual-direction scanning

X-ray Source & Performance

  • Single 160 kV X-ray generator (1 x 160 kV), downward beam direction
  • Penetration: 32 mm steel; penetration resolution: AWG 30
  • X-ray dose per inspection: ≤3.5 µSv
  • Film safety: guaranteed for ASA/ISO 1600 film
  • 100% continuous duty cycle; sealed oil cooling
  • Radiation leakage: ≤1 µGy/h at 5 cm distance
  • Noise level: ≤60 dB

Image Resolution & Detection

  • Wire resolution: AWG 36
  • Spatial resolution: 2.0 mm vertical, 2.0 mm horizontal
  • L-shaped photodiode array detector
  • Gray level: 65,536

Imaging Features & Software

  • 24-bit real-time image processing with 4-colour material classification; images displayed with date and ID number, baggage counting
  • Image enhancement: 1 to 32x continuous zoom, colour/black and white display, negative imaging, high/low penetration enhancement, brightening and darkening, gray level scanning, edge enhancement, local enhancement, pseudo colour processing, organic/inorganic elimination
  • Suspicious organics highlighting (Zeff 7, 8, 9) for explosives and narcotics detection; alarm with boxed indication for high-density materials, explosives, and drugs
  • Image recall: 30 images; image archive up to 10,000 images with USB export in JPG format
  • Embedded Linux operating system on multi-core ARM; 8 GB RAM
  • Console with 21.5" LCD monitor, 1920 x 1080 resolution; dedicated control keyboard
  • Threat Image Projection (TIP) for operator training; secure access key protection
  • Auxiliary functions: time/date and baggage counters, user management, X-ray on timers, power-on self-test, built-in diagnostics, dual-direction scanning, system log, standby mode, simulated training; one-key shutdown
  • Optional features: UPS backup (15/30/60 minutes), intelligent roller system
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 1006.5 (W) x 1001 (H) mm
  • Conveyor speed: 0.22 m/s, forward or backward
  • Conveyor height: 341 mm
  • Load capacity: 200 kg
  • Three-phase electric roller

Electrical & Environmental

  • Supply: 220V (+10%/-15%), 50±3 Hz; optional voltages 100/110/120/200 VAC
  • Maximum power consumption: 1 kW
  • Working temperature: 5°C to 40°C at 0% to 90% humidity (non-condensing)
  • Storage temperature: -20°C to 60°C at 10% to 90% humidity (non-condensing)

Dimensions & Weight

  • Overall dimensions: 3629 (L) x 1295 (W) x 1916 (H) mm
  • Net weight: 940 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS, ISO, FDA
