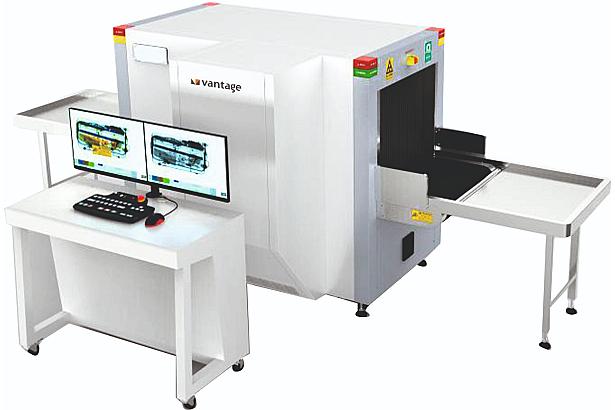

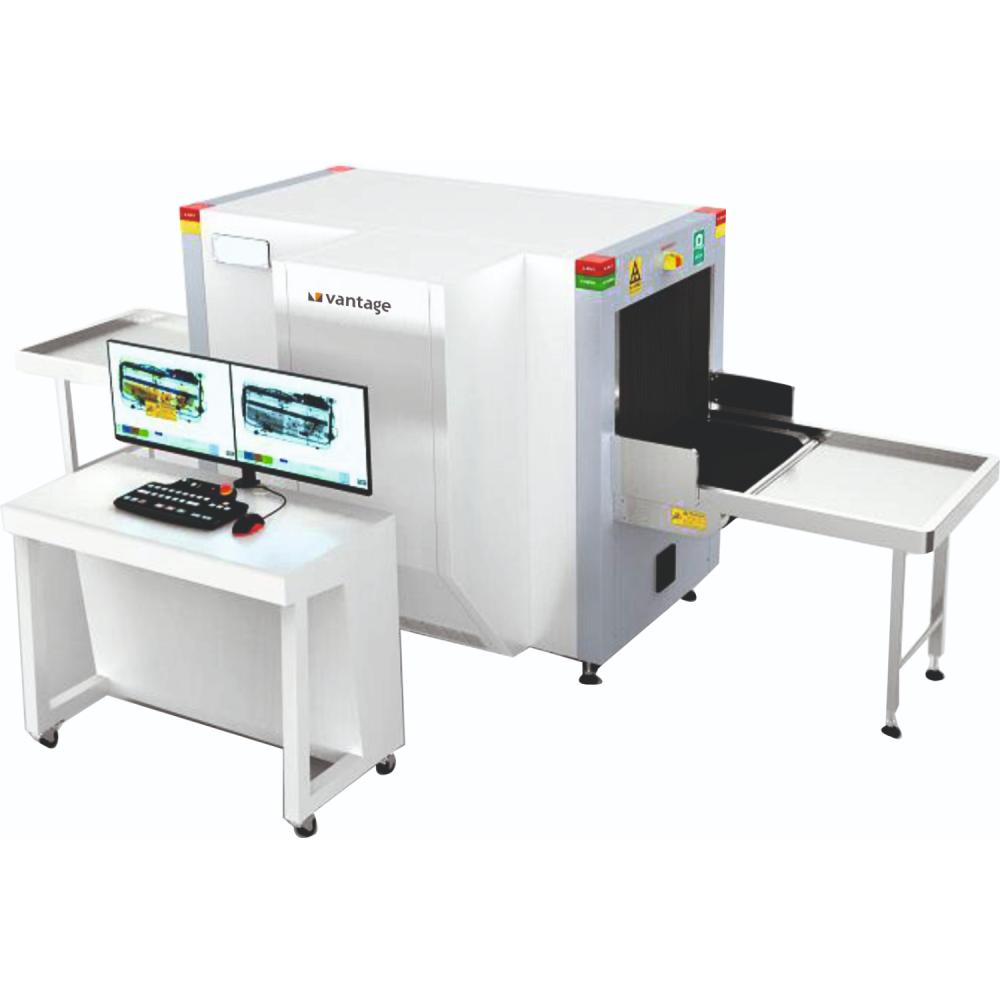

X-Ray Baggage Scanner, Dual Generators and Dual View, 65x50cm Tunnel Size

X-Ray Baggage Scanner, Dual Generators and Dual View, 65x50cm Tunnel Size
VP-XR6550D-BSS16
  • Dual X-ray generator technology with dual view for efficient screening & security
  • Dual energy penetration system supports high/low density and organic/inorganic discerning
  • Auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/metro stations, and borders/immigration security checkpoints
  • Energy-saving & environment-protective design

X-ray Source & Performance

  • Dual 160 kV X-ray generators (2 x 160 kV), vertical and horizontal beam directions (dual view)
  • Steel penetration: 34 mm; penetration resolution: AWG 32
  • X-ray dosage per inspection: ≤4.8 µSv
  • Film safety: ASA/ISO 1600 film
  • 100% duty cycle; sealed oil cooling
  • X-ray leakage: ≤1 µSv/h at any point 5 cm outside the external surface

Image Resolution & Detection

  • Wire resolution: horizontal AWG 38, vertical AWG 36
  • Spatial resolution: horizontal view 1.3 mm (horizontal/vertical); upward view 1.0 mm (horizontal/vertical)
  • S/N ratio: <60 dB
  • Two L-shaped array detectors (dual energy)

Imaging Features & Software

  • Colour/black and white imaging with local enhancement, high/low penetration, super enhancement, organic and inorganic stripping, reverse colour, brightening/darkening, variable contrast, continuous zoom up to 64x, pseudo colour imaging, organics enhancement, edge enhancement
  • Suspicious organics highlighting (atomic number Zeff 7, 8, 9) for explosives and narcotics detection
  • Suspicious alarm: alarms and box-lines hard-to-penetrate materials, explosives, and drugs
  • Image recall: 30 images; storage up to 50,000 images stored automatically
  • Windows 10 operating system; 4 GB RAM; 1 TB hard disk
  • Dual 21.5" LCD screens, resolution 1920 x 1080; specially designed keyboard; 1 console desk included
  • Threat Image Projection (TIP): inserts realistic threat images during screening for vigilance, training, and assessment
  • System functions: time/date display, counters, user management, X-ray on timers, power-on self test, built-in diagnostics, bi-directional scanning, forced scanning, image search and export, system log, standby and simulation training
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 660 (W) x 501 (H) mm
  • Conveyor speed: 0.22 m/s, forward or backward
  • Conveyor height: 669 mm
  • Maximum conveyor load: 150 kg
  • Three-phase electric roller

Electrical & Environmental

  • Supply: AC220V (+10%/-15%), 50±3 Hz
  • Maximum power consumption: 1 kW
  • Working temperature: 5°C to 40°C at 0% to 90% humidity (non-condensing)
  • Storage temperature: -20°C to 60°C at 10% to 90% humidity (non-condensing)

Dimensions & Weight

  • Overall dimensions: 2456 (L) x 1348 (W) x 1331 (H) mm
  • Net weight: 740 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS, ISO, FDA
