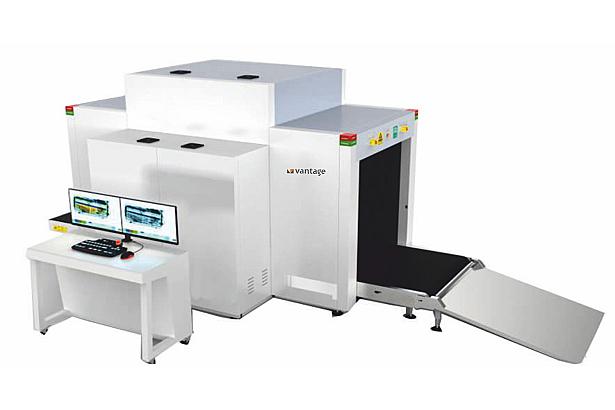

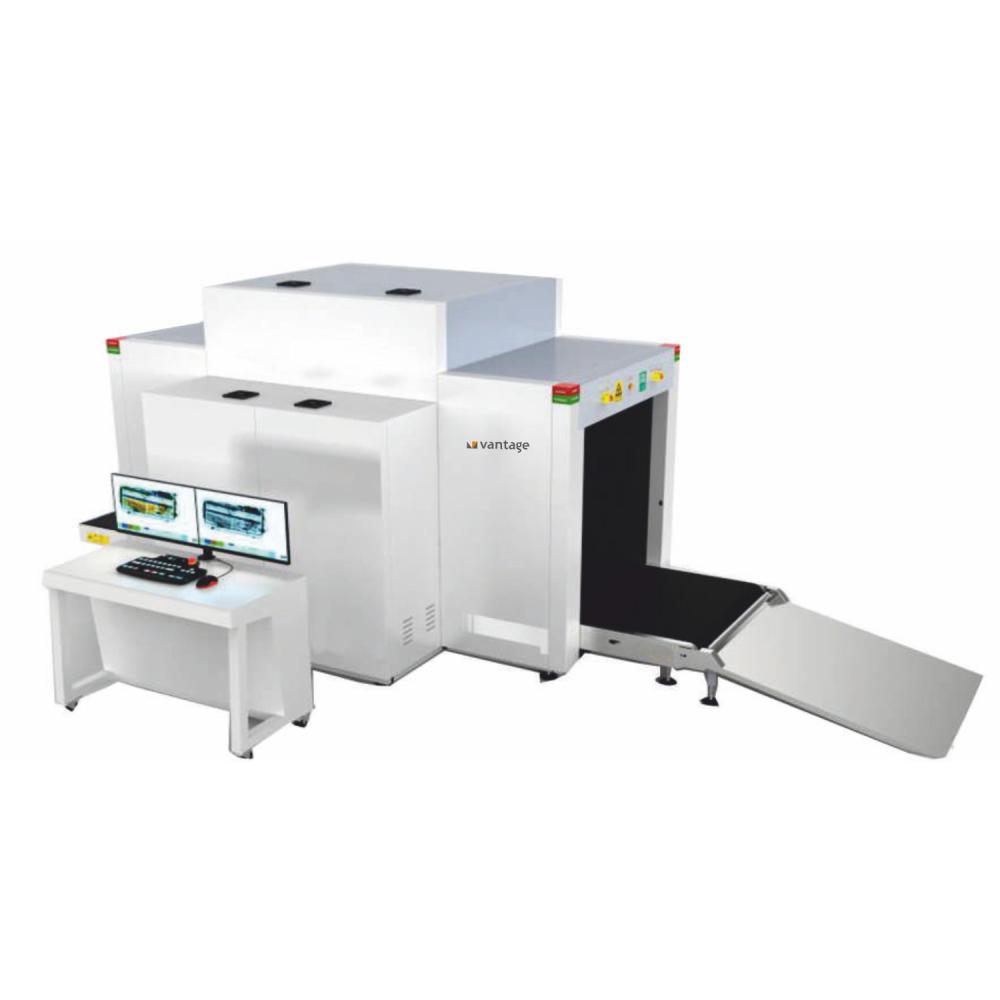

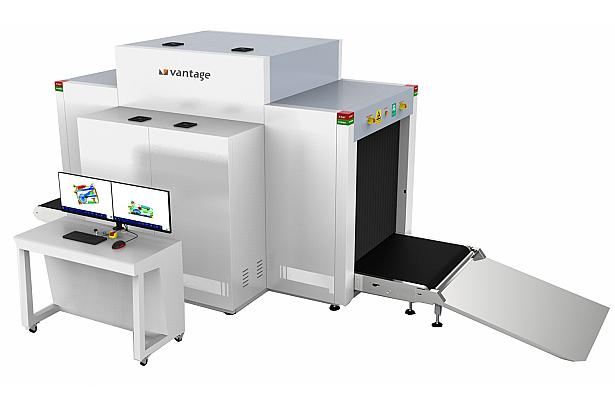

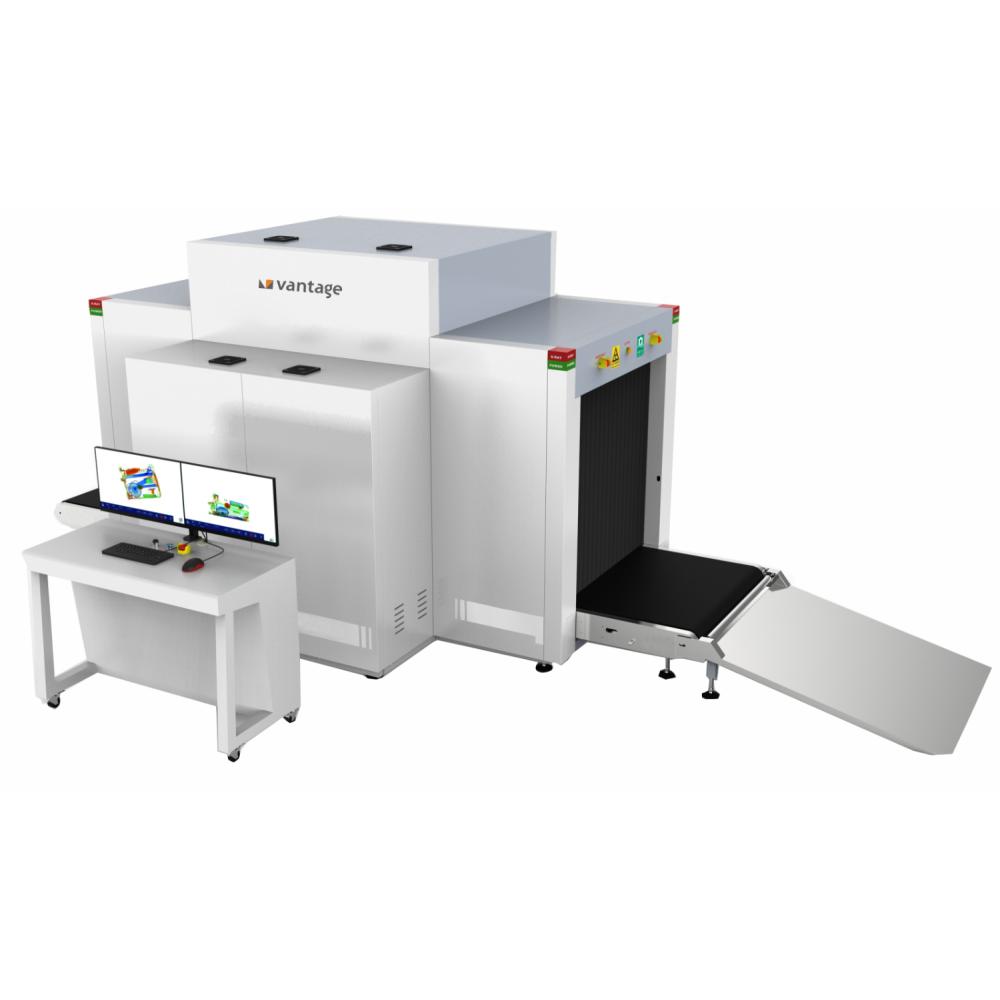

X-Ray Baggage Scanner, Dual Generators and Dual View, 100x100cm Tunnel Size

X-Ray Baggage Scanner, Dual Generators and Dual View, 100x100cm Tunnel Size
VP-XR1010D-BSS16
  • Dual X-ray generator & dual displaying technology for efficient security
  • Clear and distinct imaging with improved zooming ratio up to 64 times
  • Dual energy penetration system supports high/low density and organic/inorganic discerning
  • Auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • Suitable for scanning large baggage at borders/immigration security check points and cargo terminals
  • Energy saving & environmental protective design

X-ray Source & Performance

  • Dual 160 kV X-ray generators (anode voltage), vertical and horizontal beam directions (dual view)
  • Penetration: ≥32 mm steel
  • X-ray dose per inspection: ≤4.8 µSv
  • Film safety: guaranteed ASA/ISO 1600 film
  • 100% duty cycle; sealed oil cooling
  • Radiation leakage: <1 µSv/h (5 cm away from frame)
  • Noise level: ≤60 dB

Image Resolution & Detection

  • Wire resolution: horizontal AWG 38, vertical AWG 36
  • Spatial resolution: vertical diameter 1.3 mm, horizontal diameter 1.3 mm

Imaging Features & Software

  • Colour/black and white imaging with local enhancement, high/low penetration, super enhancement, organic and inorganic stripping, reverse colour, brightening/darkening, variable contrast, continuous zoom up to 64x, pseudo colour imaging, organics enhancement, suspicious item alarm and notation, edge enhancement
  • Suspicious organics highlighting (atomic number Zeff 7, 8, 9) for explosives and narcotics detection
  • Image checking: continuous check-back of 30 images; storage capacity 50,000 images
  • Dual 21.5" displays, high resolution 1920 x 1080
  • System functions: time/date display, counters, user management, X-ray on timers, power-on self test, built-in diagnostics, bi-directional scanning, forced scanning, image search and export, system log, standby and simulant training
  • Optional functions: intelligent roller, remote workstation, network integration, video monitoring, face recognition and baggage integration, recheck station, additional roller table
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 1007 (W) x 1008 (H) mm
  • Conveyor speed: 0.22 m/s, forward or backward
  • Conveyor height: 309 mm
  • Load capacity: 200 kg

Electrical & Environmental

  • Supply: 220V (+10%/-15%), 50±3 Hz
  • Maximum power consumption: 1.5 kW
  • Working temperature: 5°C to 40°C at 0% to 90% humidity (non-condensing)
  • Storage temperature: -20°C to 60°C at 10% to 90% humidity (non-condensing)

Dimensions & Weight

  • Overall dimensions: 3909 (L) x 1781 (W) x 1878 (H) mm
  • Net weight: 1350 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS and FDA
