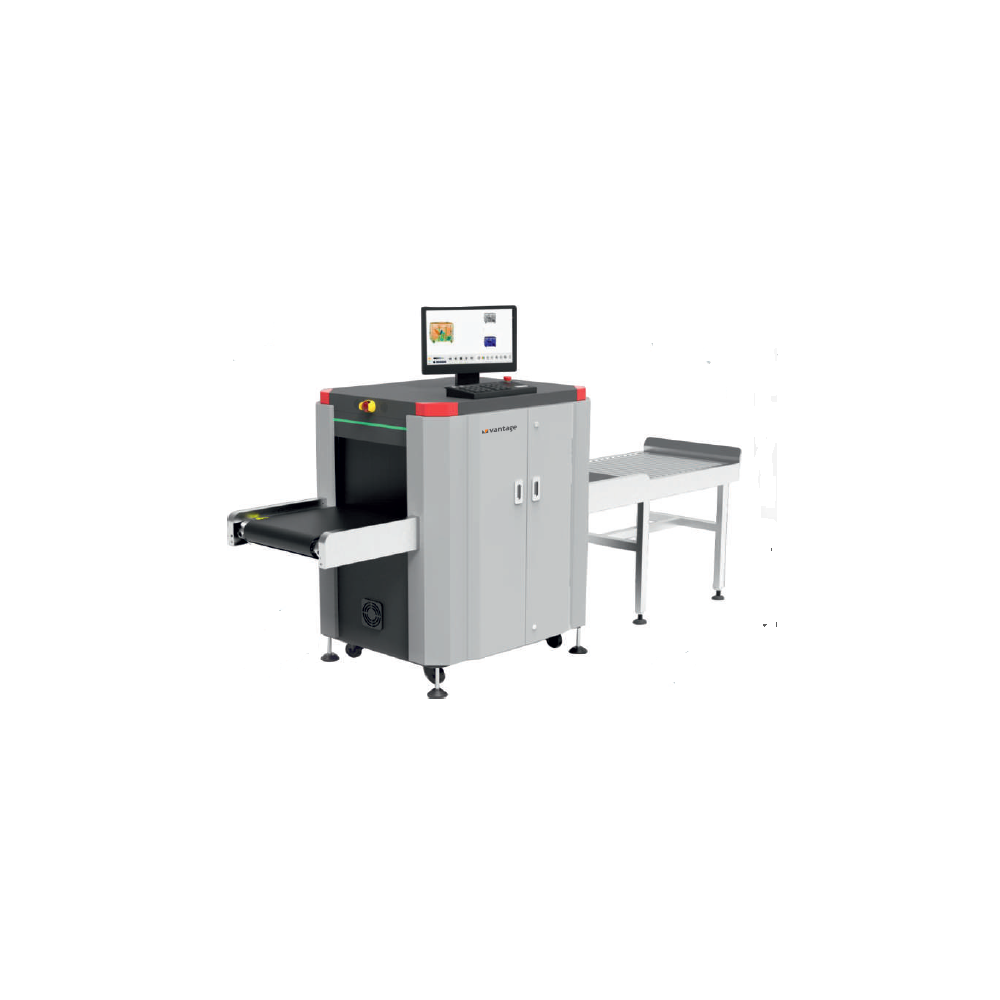

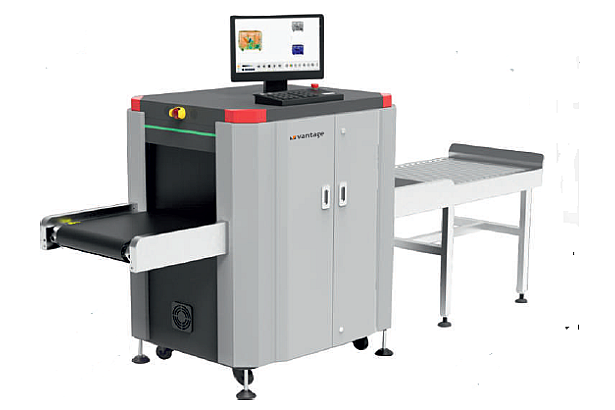

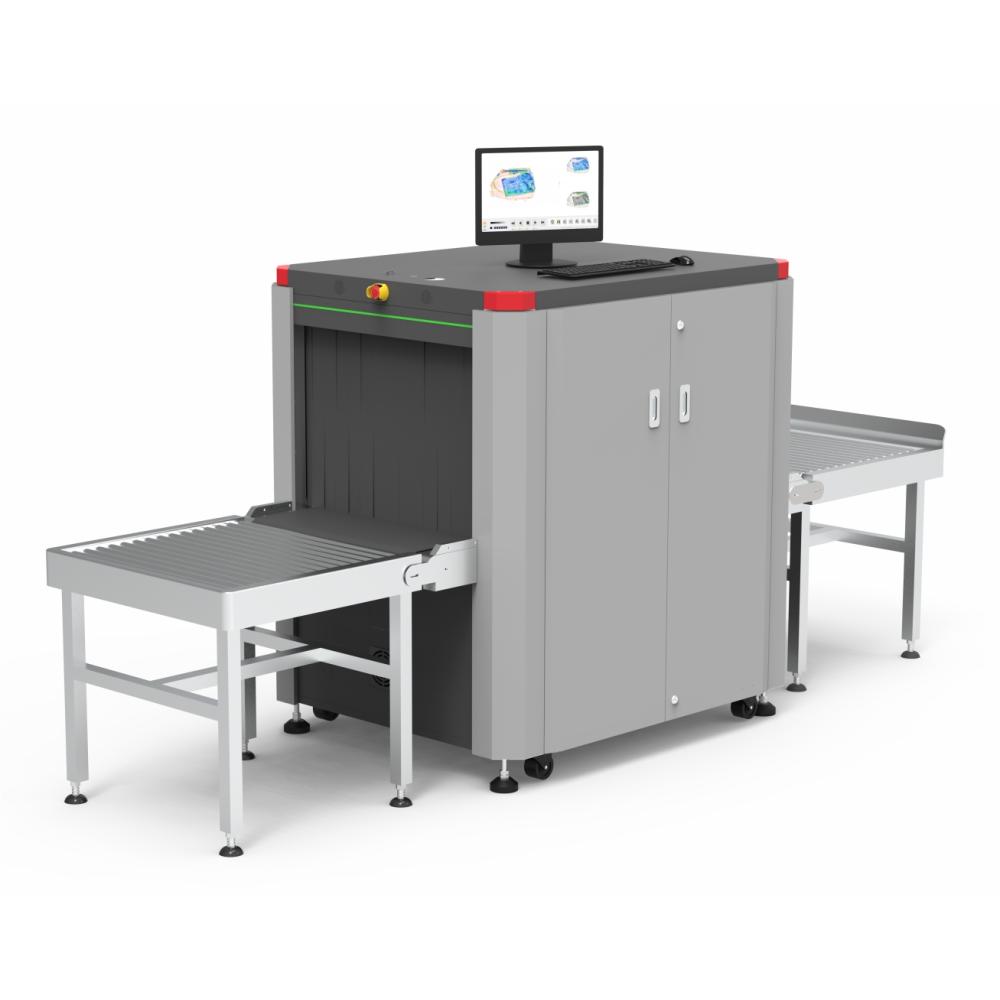

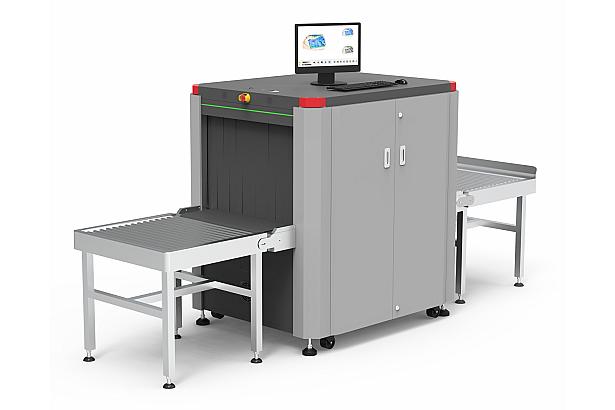

X-Ray Baggage Scanner, 7 Color Imaging, 75x55cm Tunnel Size

X-Ray Baggage Scanner, 7 Color Imaging, 75x55cm Tunnel Size
VP-XR7550S-BSJ8
  • X-ray generator with 7 Colors image displaying technology for advance material classification
  • Dual energy penetration system supports organic/inorganic discerning for efficient security
  • Versatile software with more than 30 image processing functions including auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/metro stations, borders/immigration security check points
  • Tunnel size 755(W) × 555(H)mm with conveyor speed 0.23m/s, conveyor height 750mm, and maximum conveyor load 165kg
  • Single 180KV X-ray generator with diagonally upward beam direction, wire resolution 40AWG, and spatial resolution 1.0mm horizontal and 1.0mm vertical
  • L-shaped photodiode array detector with dual energy and 24-bit depth, steel penetration 36mm, and S/N ratio below 45dB
  • 100% duty cycle with no warm-up procedure required, sealed oil cooling, and film safety guaranteed at ISO 1600 (33 DIN)
  • Single 21.5" LCD display at 1920×1080 resolution with optional LED monitor and 30 images recallable
  • Storage capacity up to 200,000 images automatically with 1TB SSD standard
  • Windows OS standard operating system with keyboard included and roller table integrated with tunnel
  • Working voltage AC220V (±10%) 50/60Hz, 10A max, and maximum power consumption 500W
  • Working temperature 0°C to 45°C, storage temperature -20°C to 60°C, and humidity up to 95% non-condensing
  • Overall dimensions 1723(L) × 1080(W) × 1425(H)mm, net weight 725kg, certified CE, FCC, RoHS, and FDA
