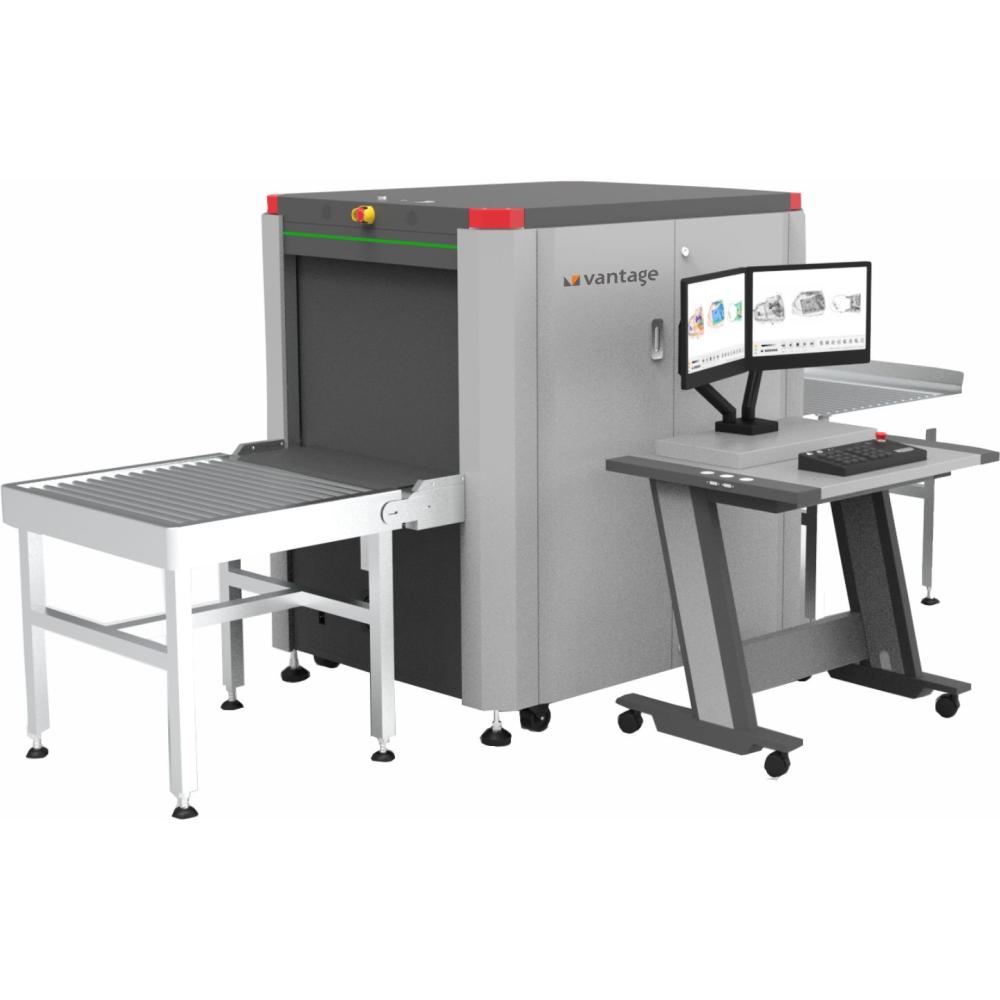

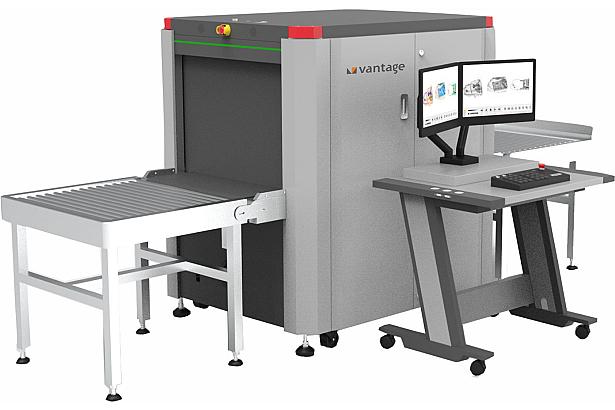

X-Ray Baggage Scanner, 7 Color Imaging, 65x50cm Tunnel Size with inbuilt Cameras

X-Ray Baggage Scanner, 7 Color Imaging, 65x50cm Tunnel Size with inbuilt Cameras
VP-XR6550S-NCBSDJ8
  • X-ray generator with 7 Colors image displaying technology for advance material classification
  • Dual energy penetration system supports organic/inorganic discerning for efficient security
  • Versatile software with more than 30 image processing functions including auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/metro stations, borders/immigration security check points
  • Integrated entry/exit surveillance monitoring cameras (optional)

X-ray Source & Performance

  • Single 160 kV X-ray generator, diagonally upward beam
  • Steel penetration: 37 mm (top), 37 mm (side)
  • Film safety: ISO 1600 (33 DIN)
  • 100% duty cycle, no warm-up; sealed oil cooling
  • X-ray leakage ≤0.1 mR/hr (1.0 µSv/hr); leakage current 1.0 mA

Image Resolution & Detection

  • Wire resolution: typical AWG40 (top & side)
  • Spatial resolution: 1.0 mm vertical, 1.0 mm horizontal
  • S/N ratio: <45 dB
  • L-shaped photodiode array detector, dual energy, 24-bit depth

Imaging Features & Software

  • 7-colour imaging, 24-bit display, edge enhancement
  • Image recall: 30 images
  • OS: Windows; 1 TB SSD; storage up to 200,000 images
  • Dual 24" LCDs, 1920 x 1080; keyboard included
  • Inbuilt cameras for video correlation
  • AI object identification (optional)

Tunnel Size & Conveyor Performance

  • Tunnel size: 661 (W) x 509 (H) mm
  • Conveyor speed: 0.23 m/s; conveyor height: 711 mm
  • Maximum conveyor load: 165 kg
  • Roller table integrated with tunnel

Electrical & Environmental

  • Supply: AC 220 V (±10%), 50/60 Hz, 10 A max; max power 500 W
  • Operating temperature: 0°C to 40°C; storage: -20°C to 60°C
  • Humidity: ≤95% non-condensing

Dimensions & Weight

  • Overall: 1675 (L) x 985 (W) x 1380 (H) mm
  • Net weight: 500 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS, FDA
