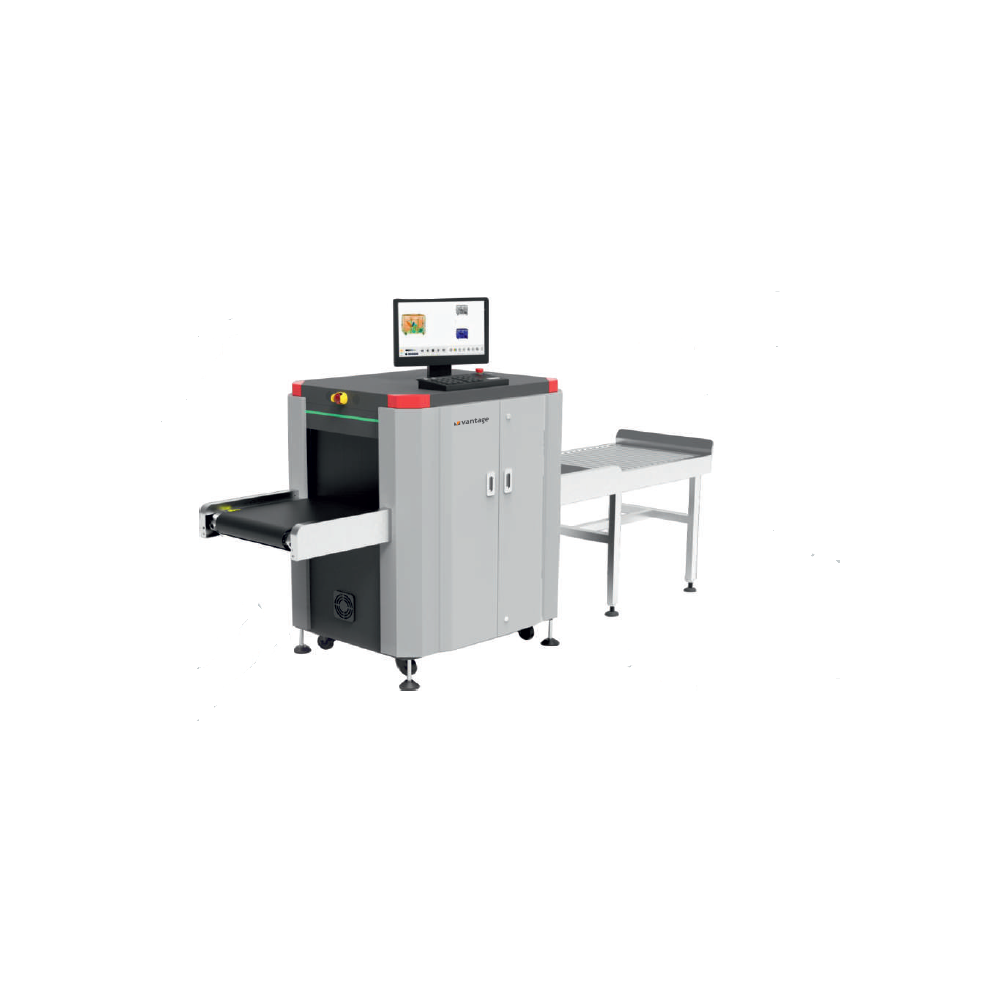

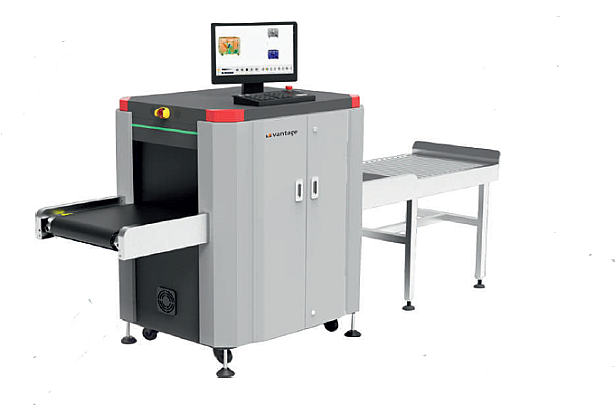

X-Ray Baggage Scanner, 7 Color Imaging, 50x30cm Tunnel Size

X-Ray Baggage Scanner, 7 Color Imaging, 50x30cm Tunnel Size
VP-XR3500-BSJ8
  • X-ray generator with 7 Colors image displaying technology for advance material classification
  • Dual energy penetration system supports organic/inorganic discerning for efficient security
  • Versatile software with more than 30 image processing functions including auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized baggage at airports, bus/train/metro stations, borders/immigration security check points
  • Tunnel size 510(W) × 310(H) mm with conveyor speed 0.23 m/s bidirectional, conveyor height 711mm, and maximum conveyor load 150kg
  • Single 140KV X-ray generator with diagonally upward beam direction, wire resolution 40AWG, and spatial resolution 1.0mm horizontal and 1.0mm vertical
  • L-shaped photodiode array detector with dual energy and 24-bit depth, steel penetration 36mm typical, and S/N ratio below 45dB
  • 100% duty cycle with no warm-up procedure required, sealed oil bath with forced air cooling, and film safety guaranteed at ISO 1600 (33 DIN)
  • Single 21.5" LCD display at 1920×1080 resolution with optional operation console, keyboard included, and 30 images recallable
  • Storage capacity up to 200,000 images automatically with 1TB SSD standard and Windows OS operating system
  • Roller table integrated with tunnel with working voltage AC220V (±10%) 50/60Hz, 10A max, and maximum power consumption 600 W
  • Working temperature 0°C to 40°C, storage temperature -20°C to 60°C, and humidity up to 95% non-condensing
  • Overall dimensions 1359.5(L) × 831(W) × 1180(H) mm and net weight 375kg
  • Certified CE, FCC, RoHS, and FDA
