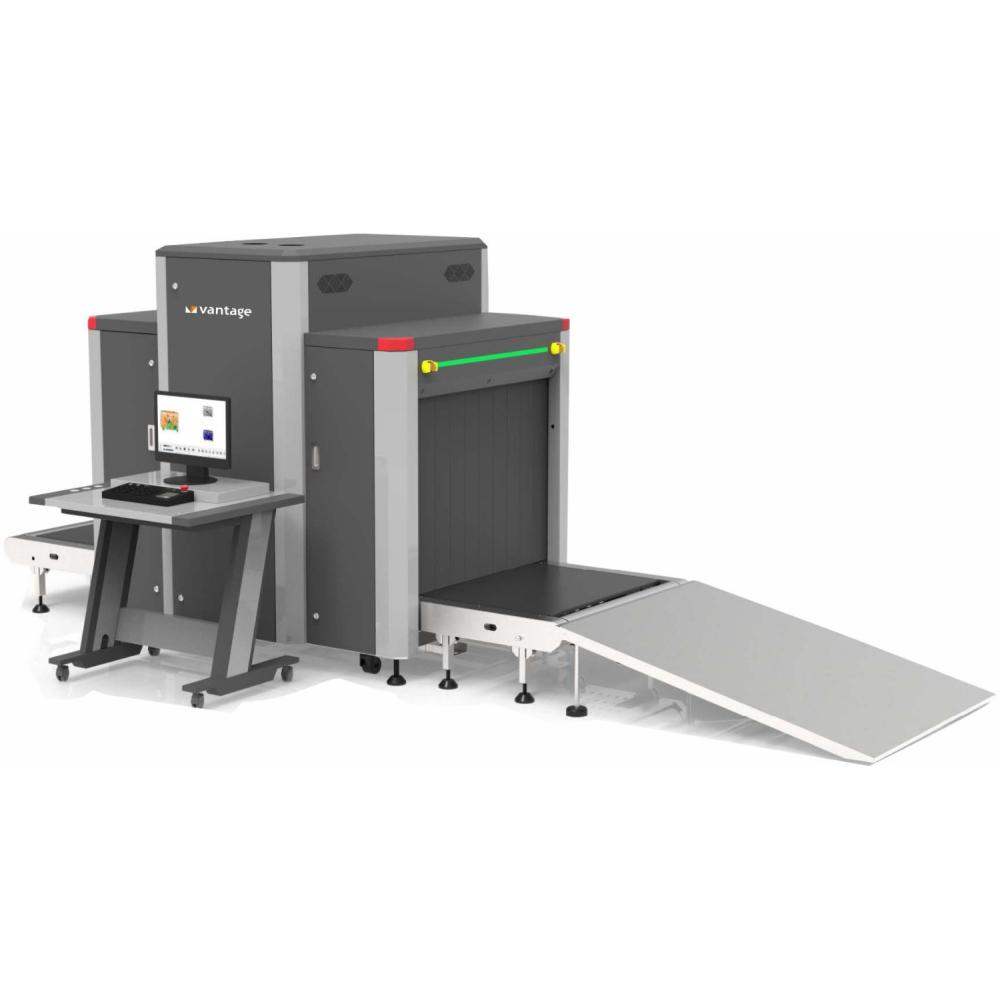

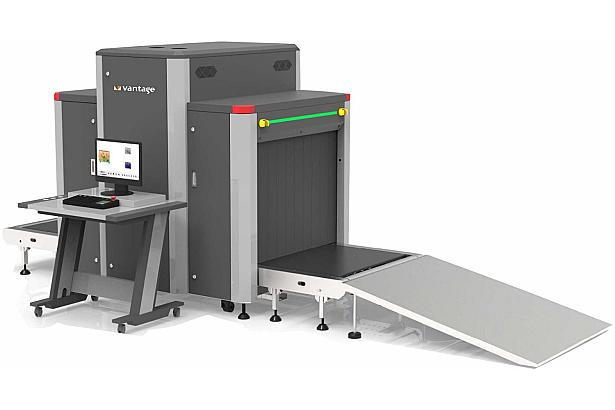

X-Ray Baggage Scanner, 7 Color Imaging, 100x100cm Tunnel Size with inbuilt Cameras

X-Ray Baggage Scanner, 7 Color Imaging, 100x100cm Tunnel Size with inbuilt Cameras
VP-XR1010S-NCBSJ8
  • X-ray generator with 7 Colors image displaying technology for advance material classification
  • Dual energy penetration system supports organic/inorganic discerning for efficient security
  • Versatile software with more than 30 image processing functions including auto-inspection of drugs and explosives
  • Supports real-time storage and retrieval of scanned images
  • Enhanced imaging software with density alerts and threat material prompts to assist operator
  • System initiates auto-diagnostic and calibration automatically at power on
  • Suitable for scanning mid-sized and large baggage at airports, bus/train/metro stations, borders/immigration security check points
  • Integrated entry/exit surveillance monitoring cameras (optional)

X-ray Source & Performance

  • Single 160 kV X-ray generator, diagonally downward beam direction
  • Steel penetration: 36 mm
  • Tube current: 0.1 to 1 mA (adjustable)
  • Film safety: guaranteed ISO 1600 (33 DIN)
  • 100% duty cycle, no warm-up procedure required; sealed oil bath with forced-air cooling
  • X-ray leakage ≤0.1 mR/hr (1.0 µSv/hr)

Image Resolution & Detection

  • Wire resolution: 40 AWG
  • Spatial resolution: 1.0 mm horizontal, 1.0 mm vertical
  • S/N ratio: <45 dB
  • L-shaped photodiode array detector (dual energy), 24-bit depth

Imaging Features & Software

  • 7-colour imaging with dual-energy material classification (switchable 4 and 7 colour modes), 24-bit colour display, edge enhancement
  • Zeff-scan auto-highlighting of explosives and narcotics (Zeff 7, 8, 9) in real time
  • Density alerts and threat material prompts to assist the operator
  • Image recall: 30 images; storage up to 200,000 images stored automatically
  • Windows OS (standard); 1 TB SSD (standard)
  • Single 21.5" LCD colour display, resolution 1980 x 1080
  • Keyboard included; operation console available/optional; 1 m roller table optional
  • Inbuilt cameras for video correlation
  • AI object identification (optional)

Camera System

  • Multiple built-in protected cameras to monitor baggage, passengers, and environment at entry and exit

Tunnel Size & Conveyor Performance

  • Tunnel size: 1010 (W) x 1005 (H) mm
  • Conveyor speed: 0.23 m/s
  • Conveyor height: 344 mm
  • Maximum conveyor load: 250 kg
  • Roller table integrated with tunnel

Electrical & Environmental

  • Supply: AC220V (±10%), 50/60 Hz, 10 A max
  • Maximum power consumption: 800 W
  • Automatic voltage regulator supported
  • Working temperature: 0°C to 40°C
  • Storage temperature: -20°C to 60°C
  • Humidity: up to 95% non-condensing

Dimensions & Weight

  • Overall dimensions: 3052 (L) x 1813 (W) x 1780 (H) mm
  • Net weight: 1020 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS, FDA
