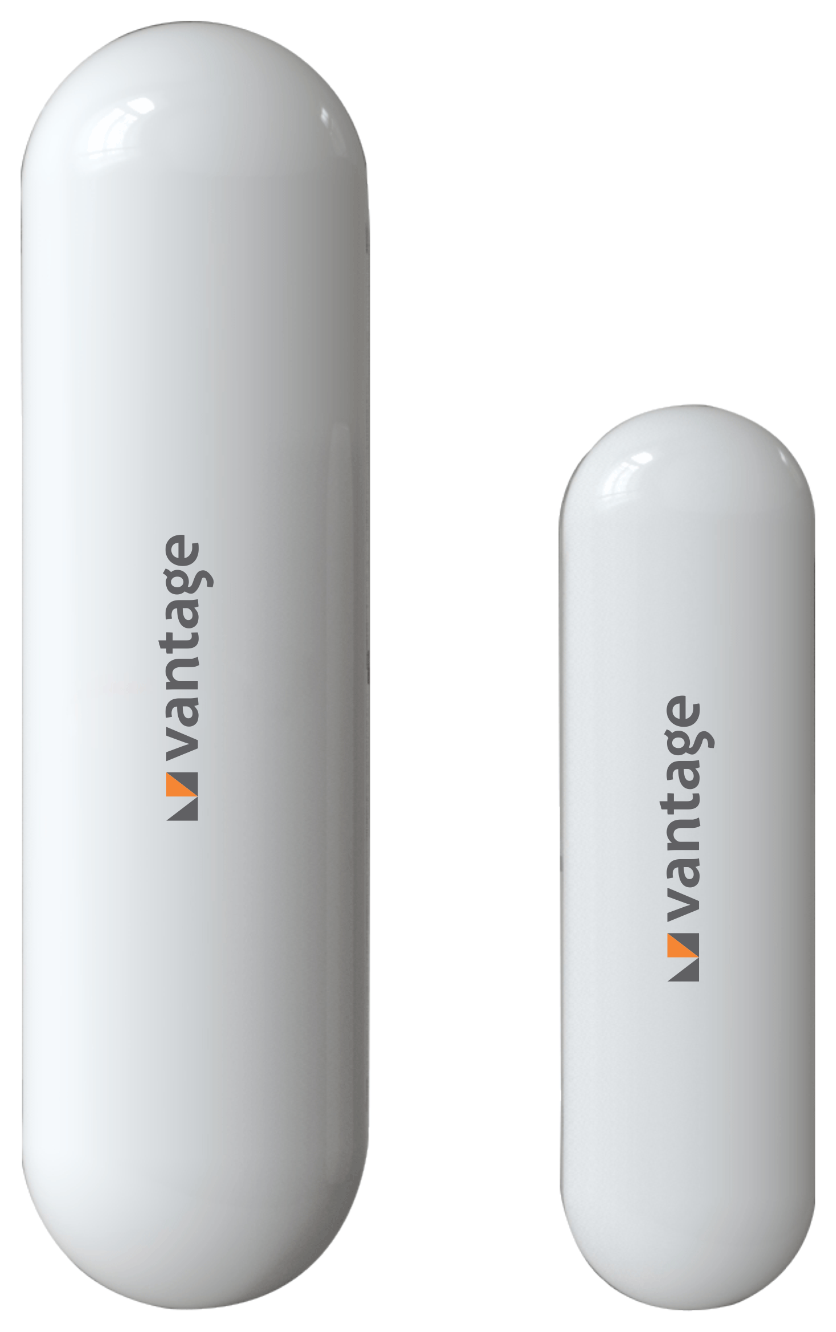

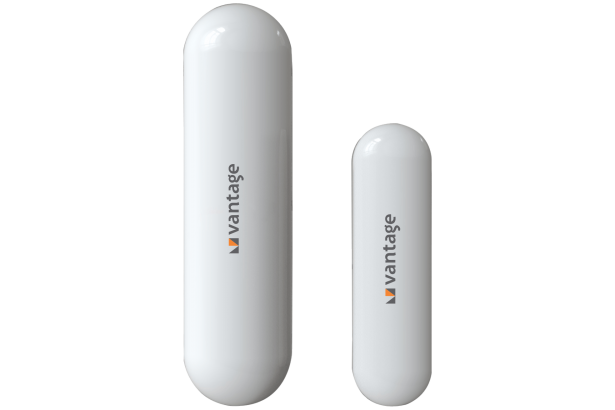

Wireless Door/Window Magnetic Contact Sensor

Wireless Door/Window Magnetic Contact Sensor
VV-SA620AX-MCK2
Image of 'LED' feature Image of 'Temper' feature Image of 'Wireless' feature
  • Built-in antenna
  • Tamper protection
  • Power Supply DC 12V (23A Battery x 1 pc)
  • Operating frequency 433MHz
  • Transmitting distance : ≤25m
Parameter Specifications
Power Supply DC 12V (23A Battery x 1 pc)
Standby Current ≤25uA
Alarm Current ≤20mA
Transmitting Distance ≤25m
Radio Frequency  433MHz
Housing Material ABS plastic
Working Temperature .-10°C~55°C
Working Humidity  <= 80% (non-condensing)
 Dimensions Transmitter (L x W x H) 77*23*15 mm
 Dimensions Megnet (L x W x H) 64*13 *13 mm
Certifications CE, FCC, ROHS
