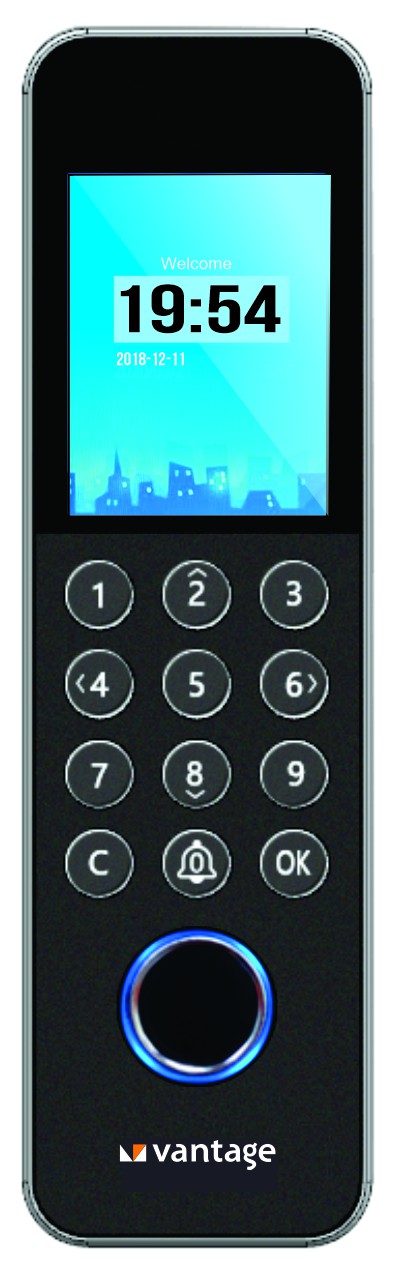

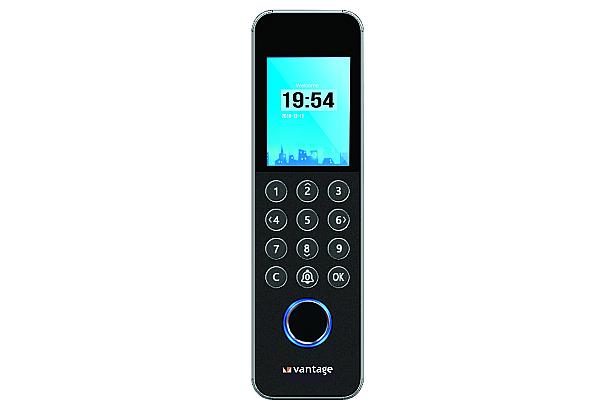

Waterproof Fingerprint Access Control Reader

Waterproof Fingerprint Access Control Reader
VP-BS2030FP-CABWT5
Image of '2" Color TFT Display' feature Image of 'Access Control' feature Image of 'Battery Backup' feature Image of 'TCP/IP' feature Image of 'USB' feature
  • Capacitive fingerprint sensor
  • Fingerprint/Pin/Card authentication
  • 360° verification angle
  • 2" TFT Color screen
  • TCP-IP network connectivity
  • Set different access time zone to manage visitors
  • High performance sensing with <1s identification time
  • Excel reports export and it supports working with software or offline
  • Quad-core Cortex A7 processor with 64M RAM and 256M Flash for fast and stable performance
  • Stores up to 3000 fingerprint templates, 3000 card IDs and 3000 PIN users with a transaction log of 100,000 records
  • Fingerprint verification in just 1.0 second with a 360° reading angle and FAR less than 0.01% for highly accurate identification
  • Inbuilt 125 KHz EM card reader with a read range of 3 to 5 cm supporting Wiegand 26 and 34 input and output
  • Connects via TCP/IP Ethernet, RS485 and USB with optional WiFi for flexible online and offline deployment
  • Powered at DC 12V 1A with battery backup of up to 5 hours ensuring uninterrupted access during power outages
  • IP66 rated enclosure operating from 0°C to 40°C with humidity range of 20% to 60% for outdoor and indoor use
  • Compact aluminum alloy body at 140 x 45 x 20 mm built for surface mounting on any door frame or wall
