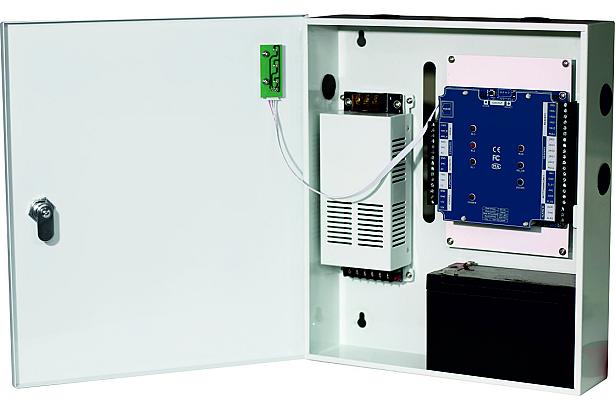

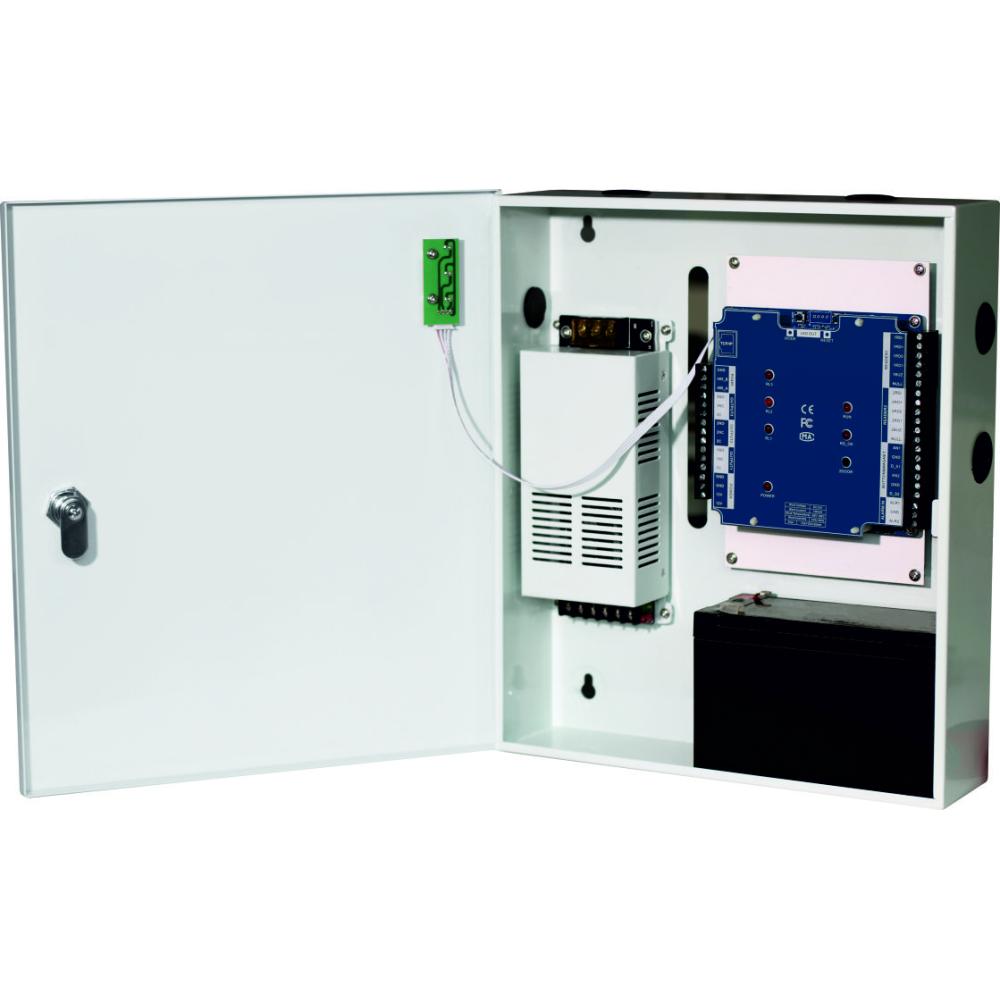

Two Door One Way Integrated Controller

Two Door One Way Integrated Controller
VP-CD2IP-2WA14
Image of 'Access Control' feature Image of 'EM Card' feature Image of 'TCP/IP' feature Image of 'Time Zones' feature
  • High-performance hardware with 32-bit ARM7 processor
  • Supports advanced security functions, including multi-card opening (up to four cards), first-card authorization, multi-door interlock, and anti-passback.
  • Supports multiple authentication methods such as card, password,card+code, and fingerprint
  • Enhanced hardware protection with opto-isolator protection for inputs and varistor protection for outputs.
  • Robust network communication with TCP/IP supporting transmission modes such as TCP, UDP, RTP, and multicast
  • Linkage and integration with video recording or snapshot capture via NVMS Unified software.
  • Supports real-time logs and event monitoring
  • User capacity 20,000 users with transaction capacity 70,000 logs and 200 access groups
  • 32-bit ARM7 processor with 10/100M TCP/IP and 1×RS485 communication
  • 2 Wiegand reader ports, 2 exit button ports, 2 door contacts and 2 lock outputs
  • 1 door magnet alarm output and 1 user-configurable alarm output with 2 user-configurable alarm inputs
  • Multi-card opening supported for up to four cards with 6-digit duress code for emergency password alarm
  • Opto-isolator and varistor protection for inputs and outputs
  • Supports TCP, UDP, RTP and multicast communication protocols
  • Overall dimensions 32.5 × 7 × 29cm, certified CE, FCC and RoHS
