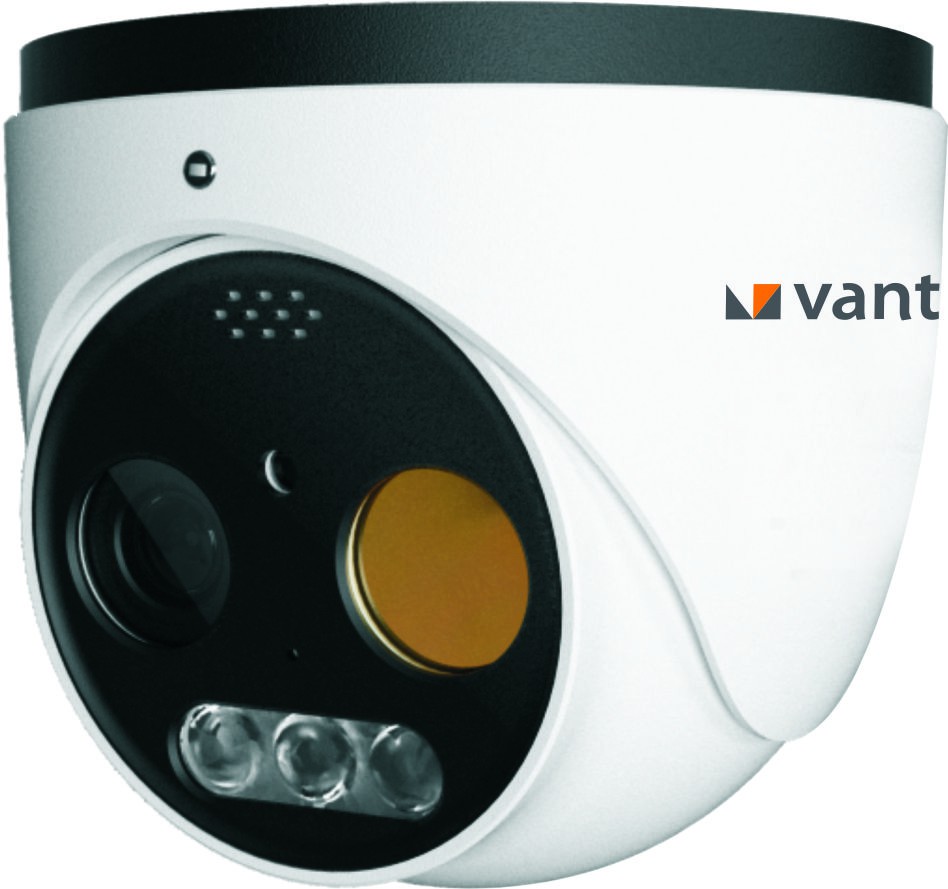

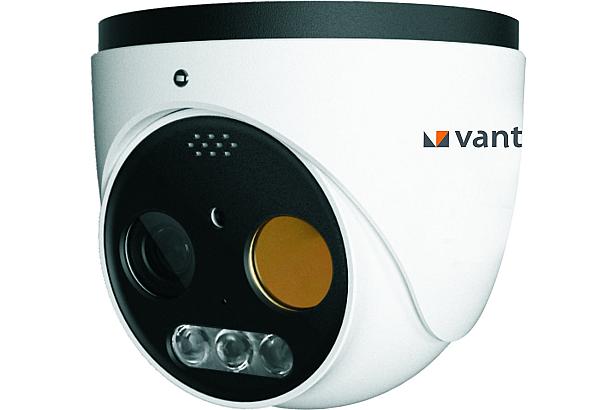

5MP Thermal Dome IP Camera with Dual Lens

5MP Thermal Dome IP Camera with Dual Lens
VV-NC92205D-AF8TH7T1
Image of '120db WDR' feature Image of 'IP66' feature Image of 'Motion Detection' feature Image of 'ROI (Region of Interest)' feature Image of 'SD Card' feature
  • Uncooled detector 256× 192 resolution
  • 7mm@F1.0 thermal imaging lens
  • Temperature range: -20°C~150°C
  • Sound and light warning, temperature exception alarm, fire detection
  • Multi-palette: white hot, black hot, iron oxide red, etc.
  • Supports Intelligent analytics
  • Thermal resolution 256 × 192 with vanadium oxide uncooled detector
  • Thermal lens 7mm F1.0 with field of view 24.8° × 18.7°
  • Optical sensor 1/2.7" CMOS with 5MP resolution (2592 × 1944)
  • Optical lens 8mm F2.0 with field of view 38° × 27.5°
  • Temperature measurement range -20°C to 150°C with ±8°C accuracy
  • Video compression H.265, H.264 and MJPEG with audio G711A/U
  • Supports WDR 120dB, BLC, HLC and defog
  • Network storage micro SD card support up to 256GB
  • Power supply DC12V or PoE (IEEE802.3af) with max 9W consumption
  • IP66 weatherproof enclosure with operating temperature -30°C to 60°C
