Entrance Management Solutions

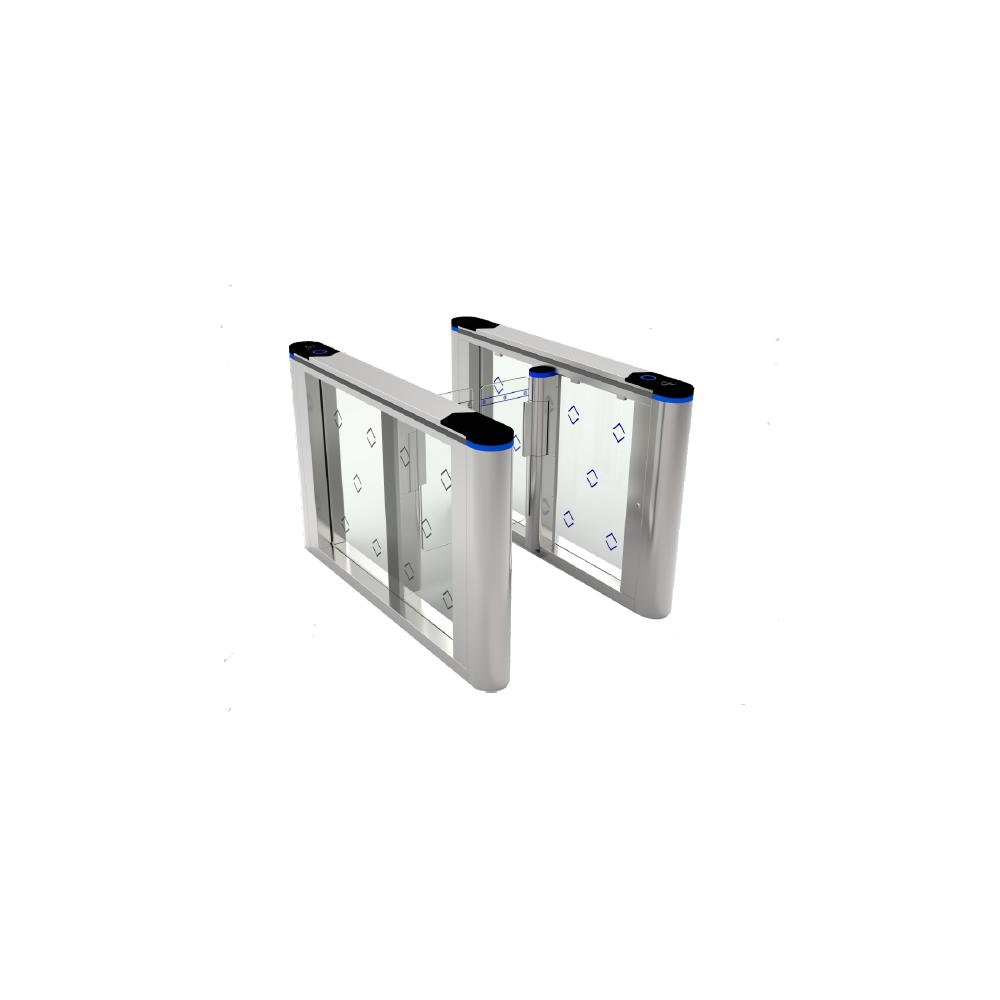

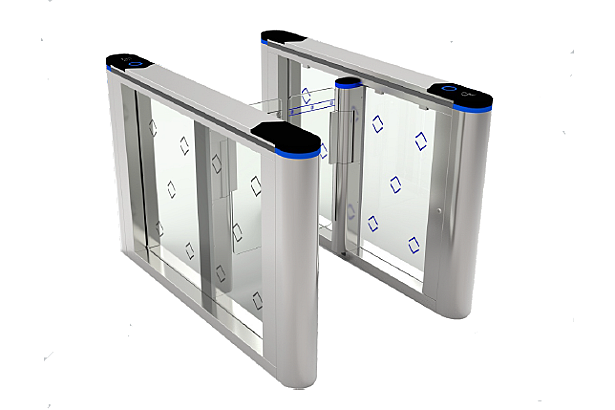

Swing Gate Barrier Single/Dual Core
V-PM4500SC/DC-SGT3
- Selectable operating modes- single direction,bi-direction, always free or always locked
- Heavy duty stainless steel Swing Barrier with Fiber glass gates
- LED Direction indicators at each side
- IP54 Ingress Protection rating
- Automatic reset of barrier gate after each passage
- Adjustable time out delay
- Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping
- Integration support with any RFID/Biometric Reader through NO input
- Top quality AISI 304 grade SS construction
- Passage width 600mm standard with 900mm optional and throughput rate of 30 persons per minute
- Selectable operating modes single direction, bi-direction, always free or always locked with automatic reset after each passage
- Brushless servo motor with electro-magnetic DC drive, operational voltage 24VDC and power supply AC100~240V 50~60Hz
- Maximum power consumption 100W with IP54 ingress protection rating (IP56 optional) and 100% duty cycle
- Heavy-duty AISI 304 grade stainless steel construction with 10mm transparent acrylic flap gates and LED direction indicators on each side
- Integration support with any RFID/Biometric Reader through NO input
- Working temperature -25°C to +70°C
- Overall dimensions 1500 × 150 × 980mm, net weight 65kg, certified CE, FCC and RoHS
