Entrance Management Solutions

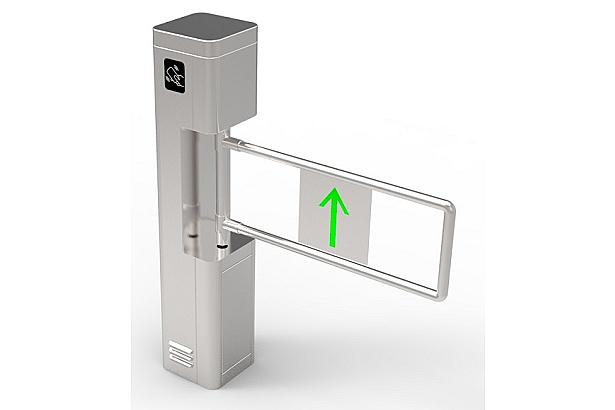

P Type Swing Gate Barrier

P Type Swing Gate Barrier
V-PM4000-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature



  • LED Direction indicators at each side
  • Selectable operating modes- single direction, bi-direction, always free or always locked
  • IP54 Ingress Protection rating
  • Automatic reset of barrier gate after each passage
  • Integration support with any smart card, RFID/Biometric Reader through NO input
  • Top quality AISI 304 grade SS construction
  • Heavy-duty design for 24 hours continue application
  • Passage clearance up to 600mm
  • Passage width 600mm (optional 900mm) with throughput rate 10–20 persons per minute with and without access control
  • Electro-mechanical motor drive with operational voltage 24V DC and power supply 100–240V AC, frequency 50–60Hz
  • Maximum power consumption 35W with automatic locking mechanism
  • IP54 protection level with working temperature -10°C to +55°C and humidity 95% non-condensing
  • Dimensions 200×200×980mm with net weight approximately 35kg
  • Certified CE, FCC and RoHS compliant
