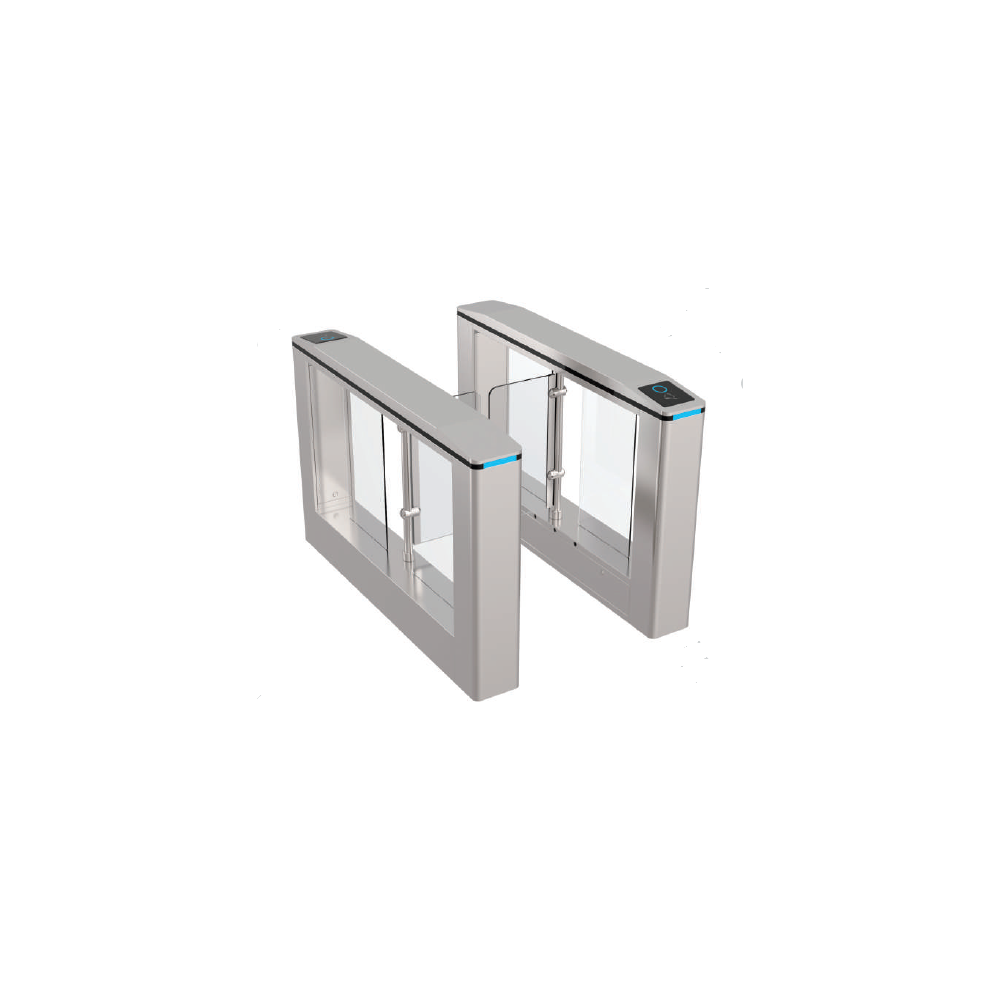

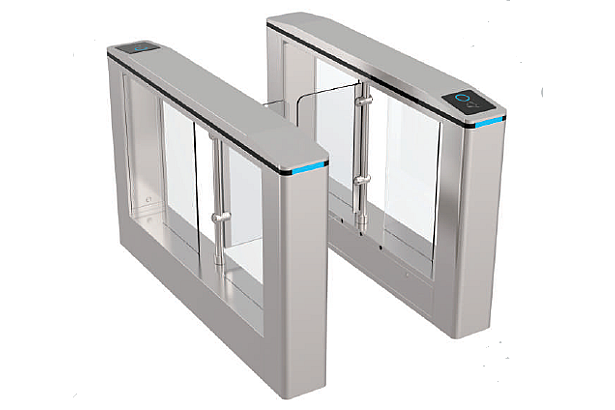

Swing Gate Barrier Single/Dual Core
V-PM4700SC/DC-SGT3
- Heavy-duty motorized-automatic swing gate
- Single/dual core and selectable operating modes supported - single direction, bi-direction, always free or always locked
- Half height operation with passage width of <600mm
- LED status indicator & adjustable time out delay
- Automatic reset of barrier gate after each passage
- Integration support with any RFID/Biometric Reader through NO input
- Fail safe & fail lock function supported in case of emergency
- Top quality AISI 304 grade SS construction with IP54 rating
- Passage width 600mm standard (optional 900mm/1300mm) with throughput rate 35–40 persons per minute and passing time 5 seconds default (adjustable 0–25 seconds)
- Opening and closing speed 0.5–0.8 seconds with unidirectional and bidirectional passage direction support
- Electro-mechanical DC motor drive with 55W DC brushless motor power and service life over 10 million operation cycles
- 14 pairs of infrared safety sensors with relay input (NO/NC/COMM) and optional RS232/RS485 communication interface
- Operating voltage DC 24V with power supply AC100–240V and maximum power consumption 45W
- IP54 ingress protection rating (optional IP56) with working temperature -25°C to +70°C and relative humidity ≤90% non-condensing
- AISI 304 grade stainless steel chassis with acrylic door material (optional 316 grade)
- Dimensions 1500×200×980mm standard (optional 1700×200×980mm) with net weight 65kg single core and 80kg double core standard (optional 70kg single core and 90kg double core)
- Certified CE, FCC and RoHS compliant
