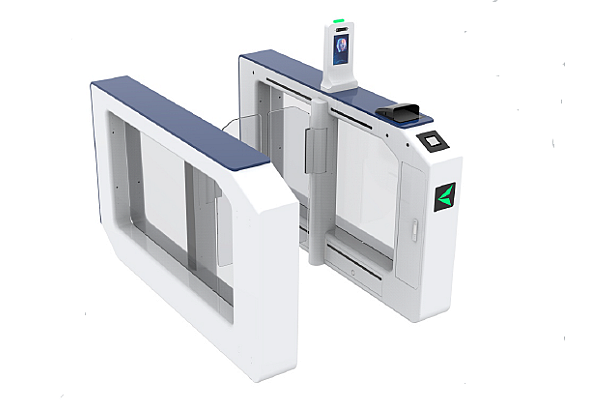

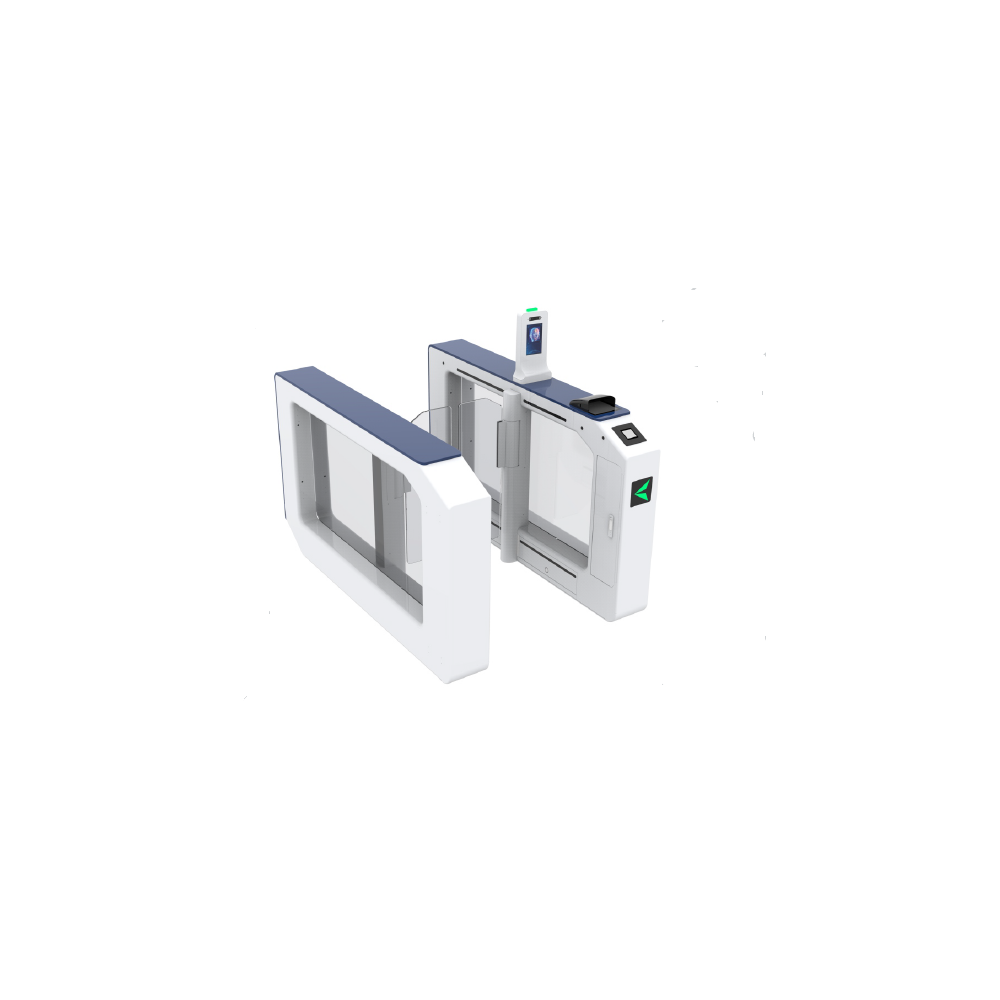

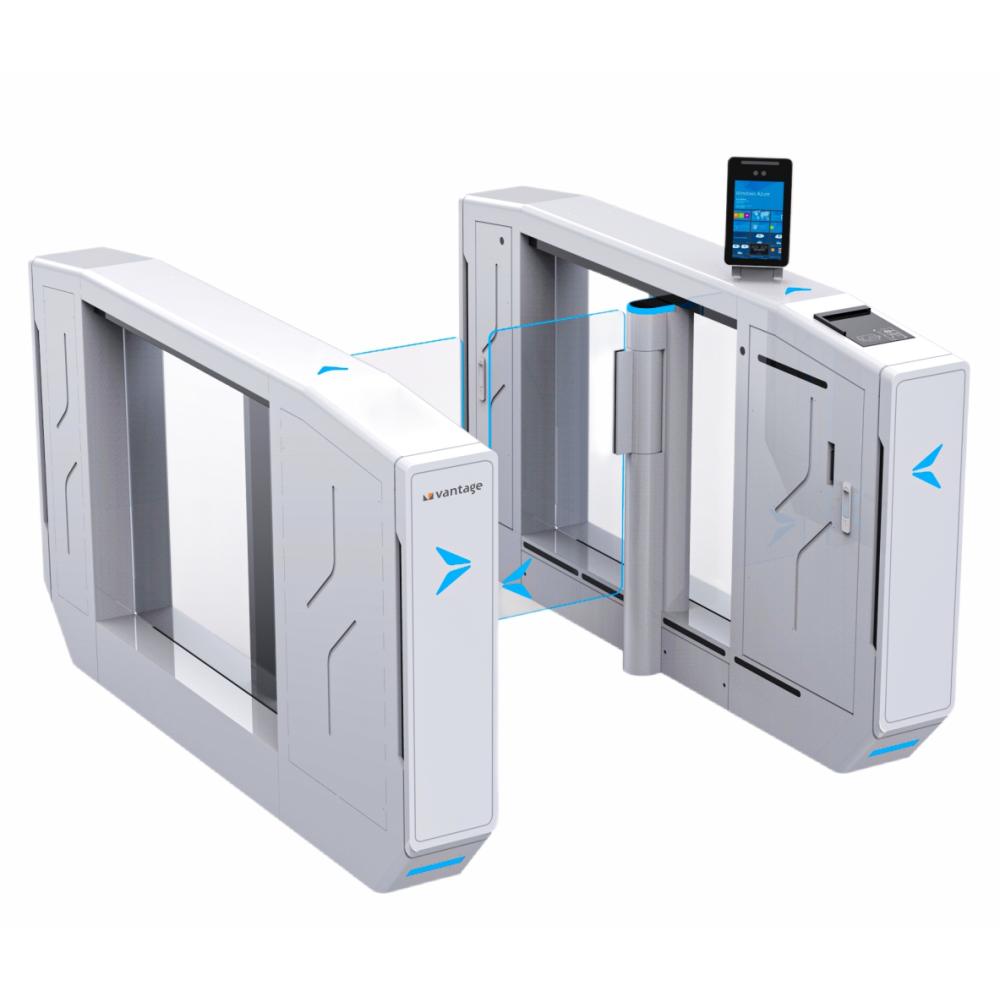

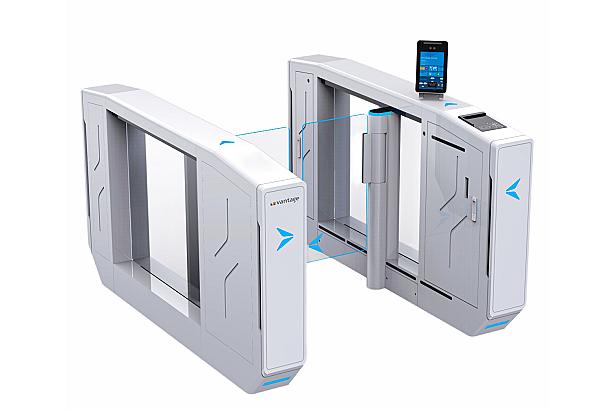

Swing Gate Barrier Single/Dual Core

Swing Gate Barrier Single/Dual Core
VP-PM5040SC/DC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic swing gate speed barrier
  • Single/dual machine core with bi-directional operating modes supported
  • Optional passage height 900mm/1200mm & 600mm/900mm passage width
  • LED status indicator & adjustable time out delay
  • Automatic reset of swing barrier after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe function supported in case of emergency
  • Top quality durable SS304 grade construction with IP44 rating
  • Passage width ≤600mm standard (≤900mm optional) with passage height 900–1200mm optional, throughput rate 35–40 persons per minute and passing time 5s default (adjustable 0–25s)
  • Opening and closing speed 0.5–1.5s with unidirectional and bidirectional passage direction
  • Servo brushless motor with operating voltage DC 24V and power supply AC100~240V with power consumption 120W
  • 18 pairs of infrared sensors for pedestrian protection with service life of >15 million operation cycles
  • Communication via Relay Input (NO/NC/COMM) with optional RS232/RS485 interface
  • Stainless Steel S304 grade main body with acrylic side panel and composite polycarbonate door material
  • IP44 ingress protection rating with working temperature -25°C to +70°C and relative humidity ≤90% non-condensing
  • Overall dimensions 1700 × 210 × 1000mm, net weight 120kg single core and 140kg double core, certified CE, FCC and RoHS
