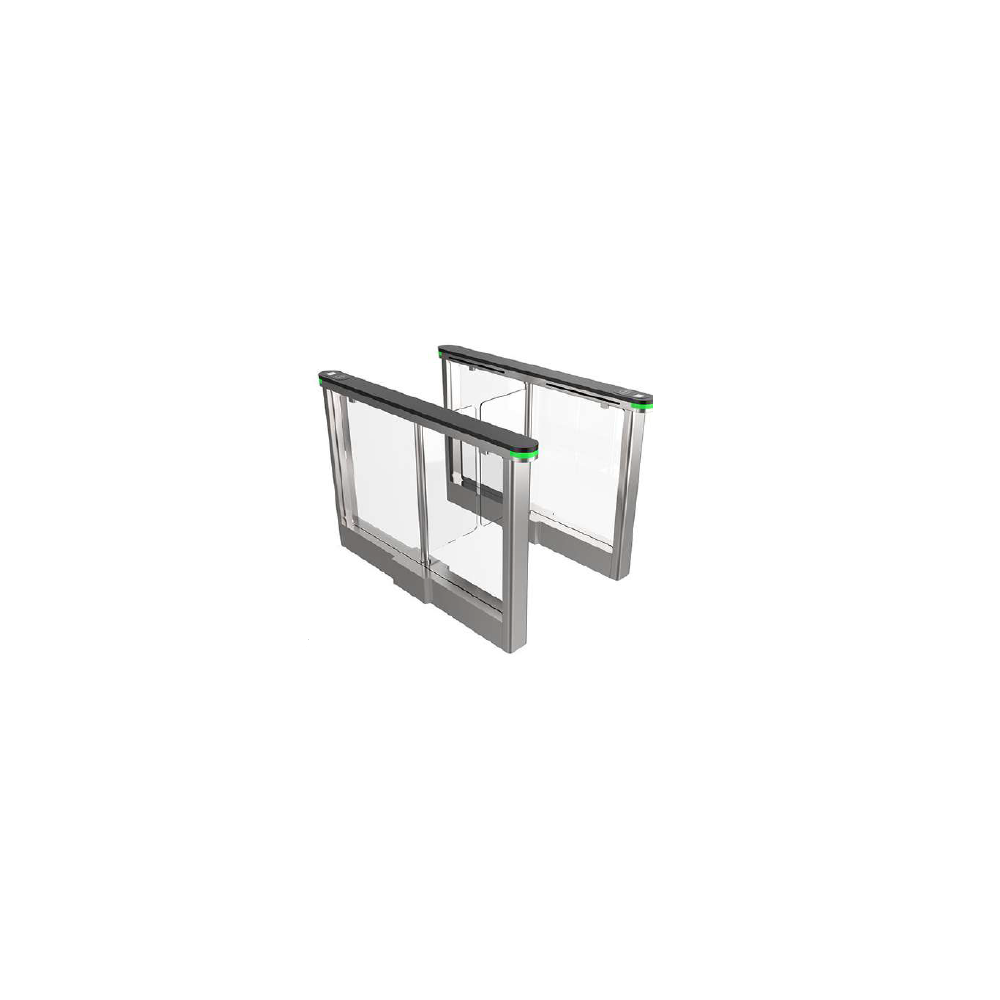

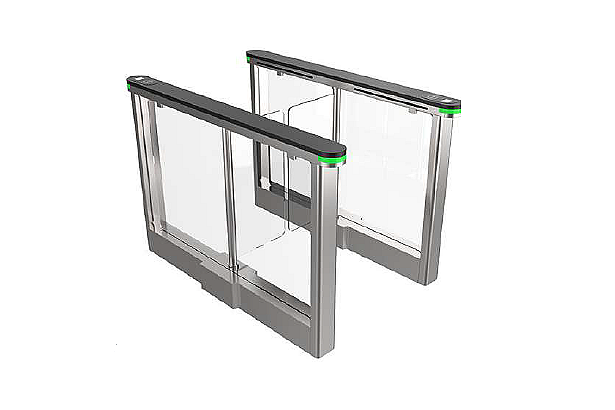

Swing Gate Barrier Single Core

Swing Gate Barrier Single Core
VP-PM5010SC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Selectable operating modes- single direction, bi-direction, always free or always locked
  • Heavy duty stainless steel Swing Barrier with Fiber glass gates
  • LED Direction indicators at each side
  • Half height operation with passage width of ≤ 600-900mm
  • Throughput rate of 35 persons/minute
  • Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping
  • Integration support with any RFID/Biometric Reader through NO input
  • Top quality AISI 304 grade SS construction with IP56 rating
  • Single core swing barrier gate with passage width 600–900mm and throughput rate of 35 persons per minute
  • Electro-magnetic DC drive with communication interface RS232, RS485, and TCP/IP supported
  • Power supply 100–240V AC, operational voltage 24VDC, frequency 50–60Hz, and maximum power consumption 35W
  • IP56 protection level with working temperature -25°C to +70°C and 100% duty cycle operation
  • Overall dimensions 1500 × 120 × 980mm and net weight 65kg
  • Certified CE, FCC, and RoHS
