Entrance Management Solutions

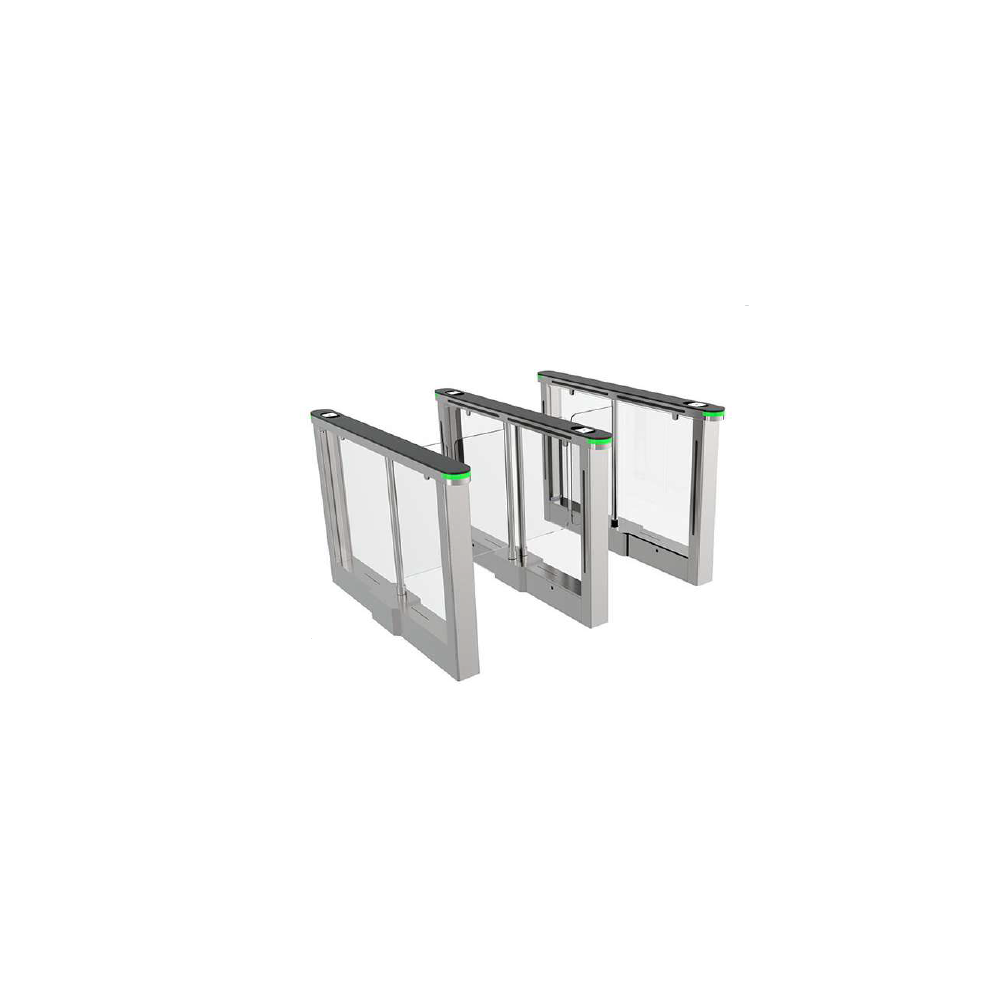

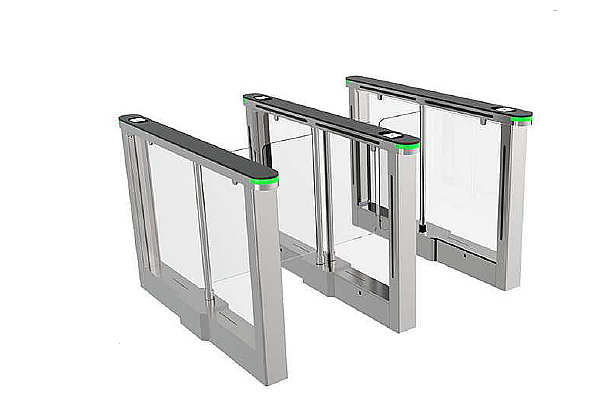

Swing Gate Barrier Dual Core

Swing Gate Barrier Dual Core
VP-PM5010DC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Selectable operating modes- single direction, bi-direction, always free or always locked
  • Heavy duty stainless steel Swing Barrier with Fiber glass gates
  • LED Direction indicators at each side
  • Half height operation with passage width of ≤ 600-900mm
  • Throughput rate of 35 persons/minute
  • Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping
  • Integration support with any RFID/Biometric Reader through NO input
  • Top quality AISI 304 grade SS construction with IP56 rating
  • Passage width 600–900mm with throughput rate of 35 persons per minute
  • Electro-magnetic DC drive with communication interface RS232 (optional RS485 and TCP/IP)
  • Power supply 100–240V AC with operational voltage 24VDC, frequency 50–60Hz and maximum power consumption 35W
  • IP56 ingress protection rating with working temperature -25°C to +70°C
  • Dimensions 1500×120×980mm with net weight 65kg
  • Certified CE, FCC and RoHS compliant
