Entrance Management Solutions

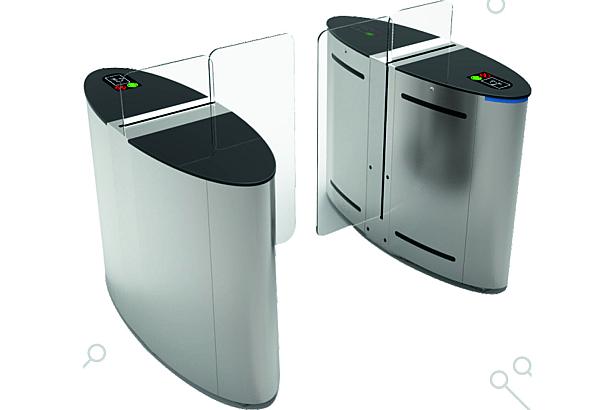

Sliding Speed Gate Barrier - Single Core
V-PM4300SC-SGT3
- Heavy duty stainless steel sliding gate barrier with fiber glass gates
- Single and Bi-directional operations supported
- LED Direction indicators at each side
- Combination of infrared sensors used for smooth pedestrian access
- Display use for statistics with voice & strobe light alerts
- Double anti-clipping function, photocell anti-clipping
and mechanical anti-clipping - IC cards, ID card, bar code or magnetic card used as automatic identification, access, attendance fees or function
- Top quality AISI304 grade SS construction
- Single machine core with passage width ≤600mm and throughput rate 35 persons per minute
- Sliding glass height 1200mm with electro-magnetic DC drive
- Operational voltage 24V DC with power supply 100–240V AC, frequency 50–60Hz and maximum power consumption 35W
- IP44 protection level with working temperature -25°C to +70°C
- Dimensions 1400×300×980mm with net weight 95kg
- Certified CE, FCC and RoHS compliant
