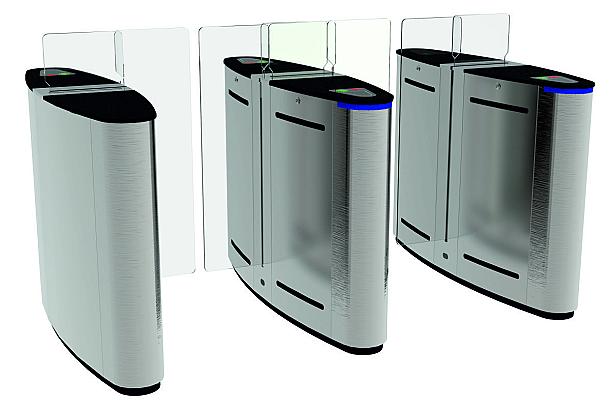

Sliding Speed Gate Barrier- Dual Core

Sliding Speed Gate Barrier- Dual Core
V-PM4300DC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy duty stainless steel sliding gate
  • Elegant design with LED backlit transparent acrylic flaps
  • Double machine cores with Bi-directional operations supported
  • Half height operation with passage width of ≤ 550mm /900mm
  • LED Direction indicators at each side
  • Combination of infrared sensors used for smooth pedestrian access
  • Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping
  • Integration support with any RFID/Biometric Reader through NO input
  • Top quality AISI304 grade SS construction
  • Double machine core with passage width ≤550mm standard (optional 900mm) and throughput rate 35 persons per minute
  • Opening and closing time 1–5 seconds with unidirectional and bidirectional pass direction support
  • Sliding glass height 1200mm with door thickness 10mm and service life over 5 million operation cycles
  • Relay input (NO/NC/COMM) with optional RS232/RS485 communication interface
  • Operational voltage 24V DC with power supply 100–240V AC, frequency 50–60Hz and maximum power consumption 35W
  • IP44 protection level with working temperature -20°C to +70°C
  • Standard 550mm width dimensions 1400×300×980mm and customized 900mm width dimensions 1400×450×980mm
  • Net weight approximately 120kg single core (standard 550mm) and approximately 140kg single core (customized 900mm)
  • Certified CE, FCC and RoHS compliant
