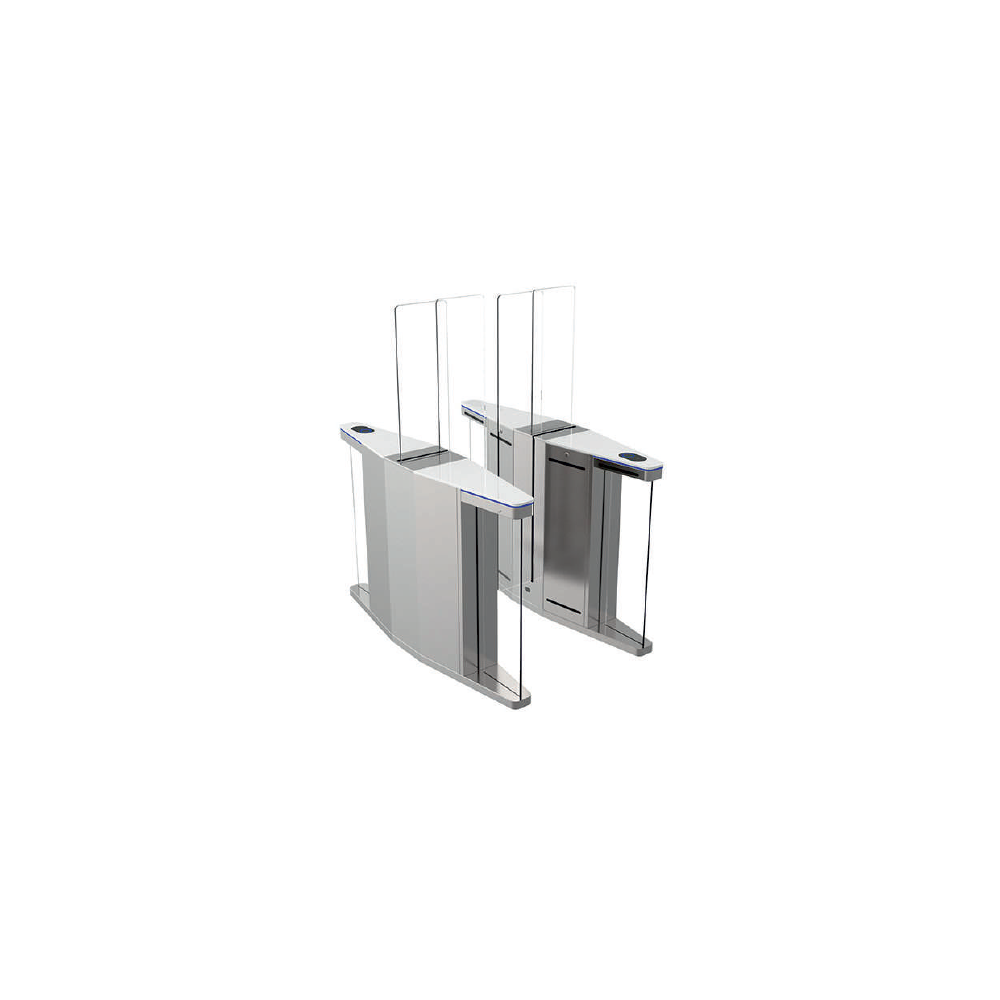

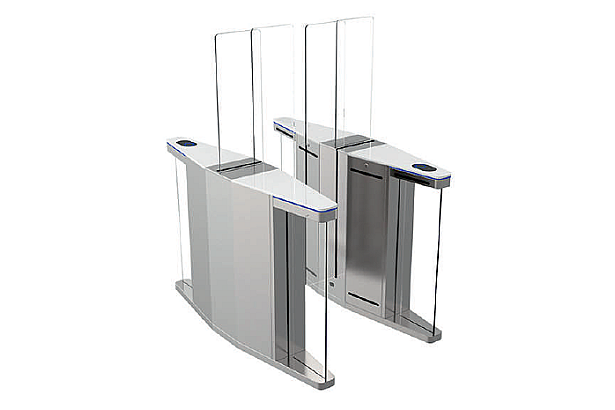

Single/Dual Core Full Height Speed Gate Barrier

Single/Dual Core Full Height Speed Gate Barrier
VP-PM5020SC/DC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic slide gate
  • Single/dual machine core with bi-directional operating modes supported
  • Half height operation with standard passage width 600mm
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe function supported in case of emergency
  • Top quality AISI 304 grade SS construction
  • Passage width of 600 mm standard and 900 mm optional, handling 35 to 40 persons per minute
  • Opens and closes in 0.5s to 0.8s with passing time default of 5 seconds, adjustable up to 25 seconds
  • 9 pairs of infrared sensors protect pedestrians and prevent gate impact on every passage
  • DC brushless servo motor at 100 W and 24V DC rated for over 10 million operation cycles
  • Power supply 100 to 240 V AC with maximum consumption of 150 W, compatible with any standard electrical installation
  • IP44 rated, operates from -25°C to +70°C with humidity up to 90% for reliable indoor use
  • Relay Input (NO/NC/COMM) with optional RS232 and RS485 for easy RFID or biometric reader integration
  • Dimensions 1500 x 300 x 980 mm, weighing 140 kg single core and 180 kg double core
