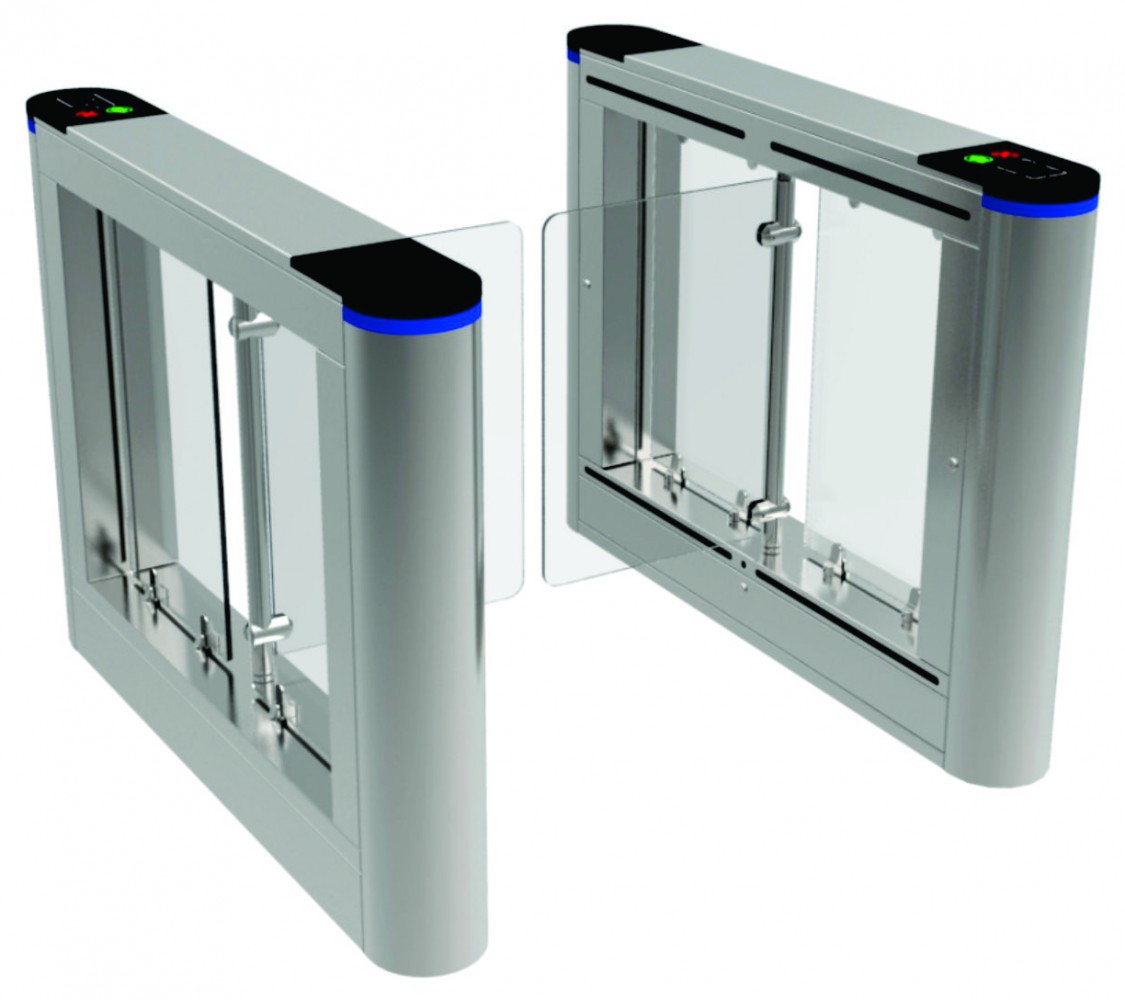

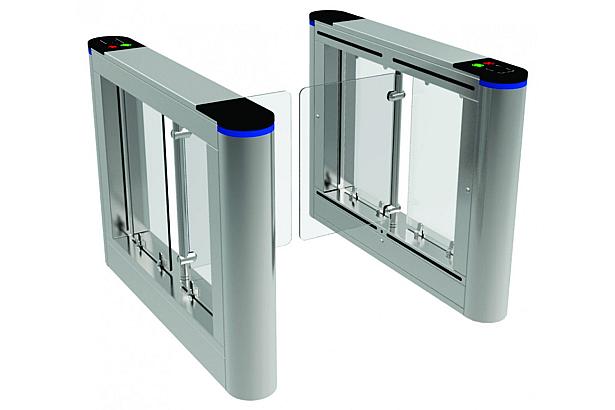

Swing Gate Barrier Single/Dual Core

Swing Gate Barrier Single/Dual Core
V-PM4200SC/DC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic swing gate
  • Single/dual core and bi-directional operations supported
  • Half height operation with passage width of <600mm
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe & fail lock function supported in case of emergency
  • Top quality AISI 304 grade SS construction with IP54 rating
  • Passage width 600mm standard (optional 900mm) with throughput rate 35–40 persons per minute and passing time 5 seconds default (adjustable 0–25 seconds)
  • Opening and closing speed 0.5–0.8 seconds with unidirectional and bidirectional passage direction support
  • Electro-magnetic DC motor drive with 40W DC brushless motor power and service life over 5 million operation cycles
  • 5 pairs of infrared safety sensors with relay input (NO/NC/COMM) and optional RS232/RS485 communication interface
  • Operating voltage DC 24V with power supply AC100–240V and maximum power consumption 42W
  • IP54 ingress protection rating (optional IP56) with working temperature -25°C to +70°C and relative humidity ≤90% non-condensing
  • AISI 304 grade stainless steel chassis with acrylic door material (optional 316 grade)
  • Dimensions 1400×185×1020mm with net weight 70kg single core and 80kg double core
  • Certified CE, FCC and RoHS compliant
